SCIM Provisioning with OneLogin

This article explains how to use the OneLogin Cato SCIM app to automatically sync users from your OneLogin account to your Cato account.

Capabilities Supported

Cato Networks delivers a next generation secure networking architecture that eliminates the complexity, costs, and risks associated with legacy IT approaches based on disjointed point solutions. From Single Sign-On (SSO) to user provisioning, OneLogin's Cato integration handles user access and groups throughout the user's lifecycle, including:

Create and remove users in the Cato Management Application
Sync users and attributes from OneLogin to the Cato Management Application
Single Sign-On (SSO) to OneLogin
Update user attributes
Deactivate users
Import users
Import groups (OneLogin roles)

Requirements

Make sure that before you create the custom Cato SCIM app, you have admin permissions in OneLogin to configure applications and user provisioning.

Known Limitations

Users that are deleted from OneLogin are disabled in the Cato Management Application
Roles that are deleted from OneLogin, the corresponding groups are NOT deleted in the Cato Management Application
Nested groups aren't supported
SCIM sync overrides existing LDAP groups with the same name. For more information, see How SCIM Sync Overrides Existing LDAP Groups

Configuring the Cato SCIM App to Automatically Sync Users to Cato

You can use the Cato SCIM app in the OneLogin app library, to connect and sync users from your OneLogin account to your Cato account. This section explains how to configure this SCIM app, according to the following workflow:

In the Cato Management Application, enable SCIM provisioning for your Cato account
Add the Cato SCIM app to your OneLogin account
Configure the app to connect to your Cato account
Define the OneLogin users that are synced
Define the OneLogin roles that are synced to the groups in your Cato account

The status of users in your Identity Provider (IdP) are automatically synced to your Cato account. For example, when you disable users in the IdP, they are synced to your Cato account as disabled.

Configuring the Cato Management Application for the SCIM App

In the Cato Management Application, enable SCIM Provisioning and copy the URL and token to a text file. You will enter these settings in the Cato SCIM app that you configure in your OneLogin

account.

To connect Cato Management Application to the SCIM App

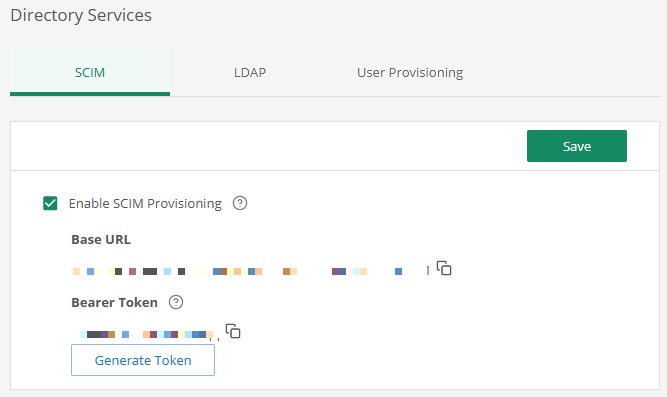

In the Cato Management Application, from the navigation menu select Access > Directory Services and click the SCIM tab.
Select Enable SCIM Provisioning to set your account to connect to the SCIM app.
Click Save.
Copy and paste the SCIM URL and token to blank text file.
1. In Base URL, click the copy icon to copy the SCIM URL to the clipboard and then paste it in the text file.
2. In Bearer Token, click the copy icon to copy the unique account token to the clipboard and then paste it in the text file.

Adding the Cato SCIM App

You can add the Cato SCIM application to your OneLogin account, and use it to provision users from your OneLogin account to your Cato account.

To add the Cato SCIM app to your OneLogin account:

To add the Cato SCIM app to your OneLogin account:

From your OneLogin admin dashboard, click Applications > Applications.
Click Add App.

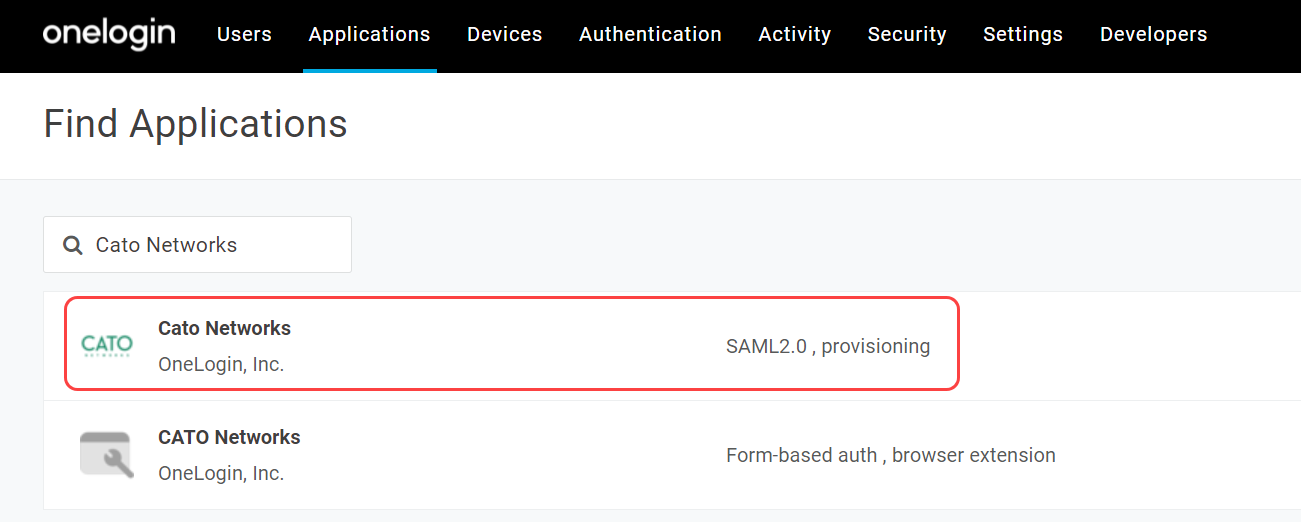

Search for the Cato Networks app, and then click the Cato Networks application with SAML2.0, provisioning.

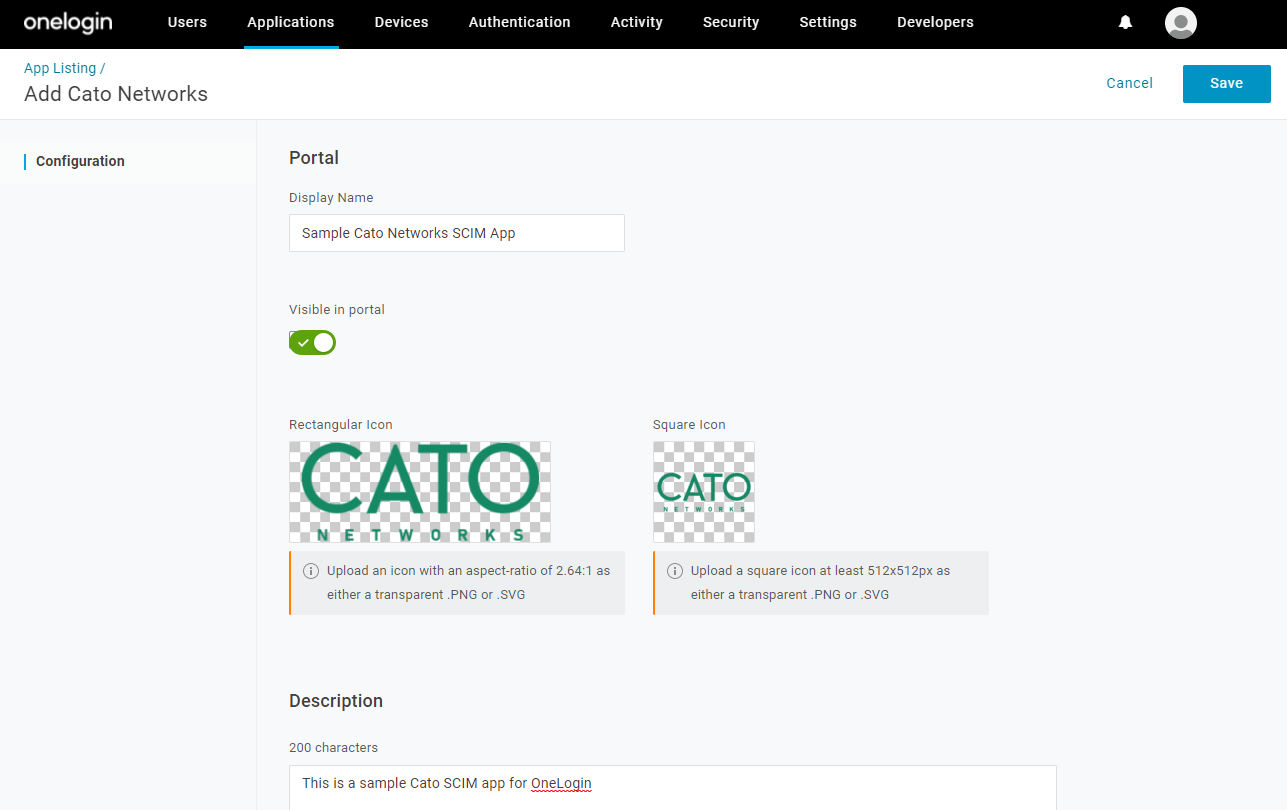

In the App Listing / Add Cato Networks window, enter the Display Name for the application and click Save.

The message shows that the application is successfully added to your account.

Configuring the SCIM App to Connect to Your Account

Configure the settings in the Configuration and Provisioning sections of the application so that it can connect to your Cato account. You need to enter the URL and Token that you copied from the Cato Management Application in Configuring the Cato Management Application for the SCIM App above.

To configure the SCIM application to connect to your Cato account:

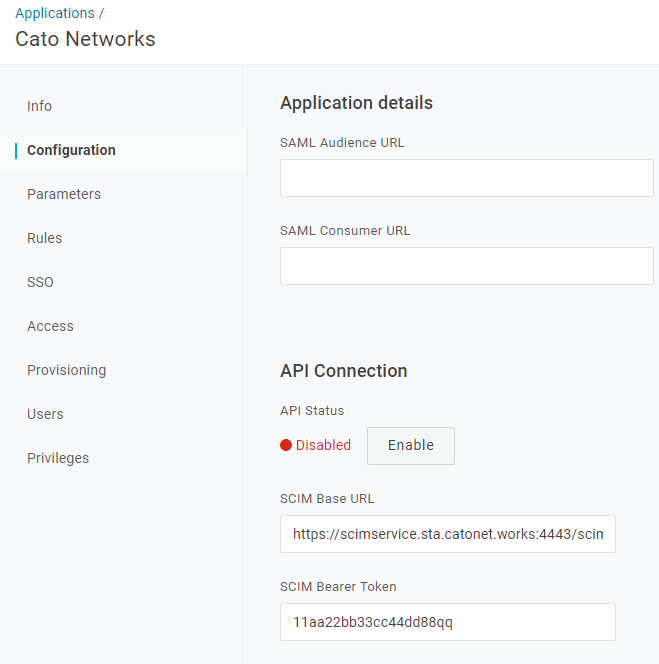

From the application navigation pane, click Configuration.
In the API Connection section, configure OneLogin to integrate with your account:
1. In SCIM Base URL, paste the URL that you copied from the Cato Management Application.
2. In SCIM Bearer Token, paste the token that you copied from the Cato Management Application.
In API Status, click Enable.
Click Save.
From the navigation pane, click Provisioning.

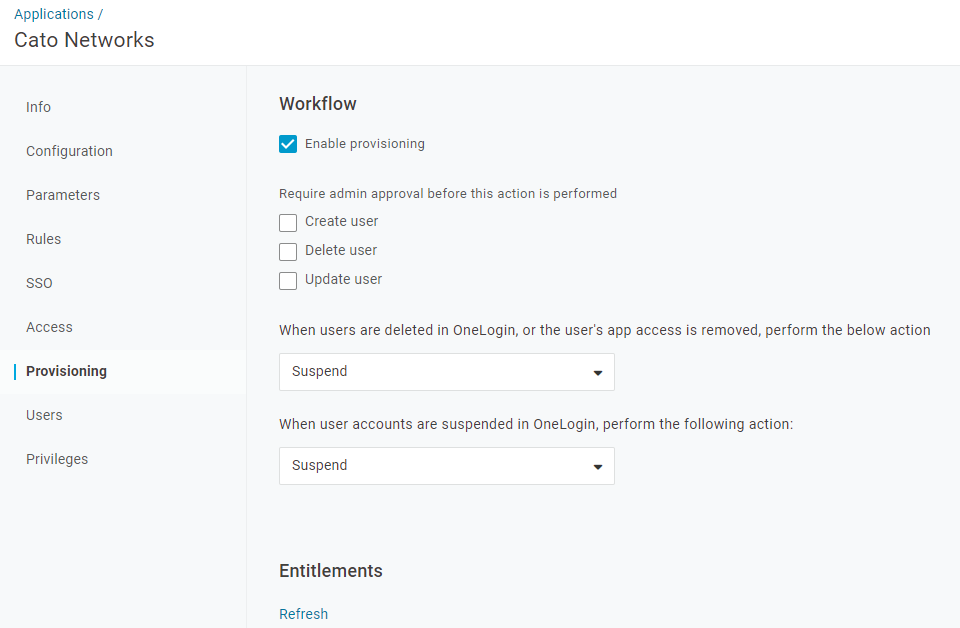

Configure these provisioning settings for the application:
1. Select Enable provisioning.
2. (Optional) Configure the Require admin approval before this action is performed settings:
3. In When users are deleted in OneLogin, or the user's app access is removed, perform the below action, select Suspend.
4. Make sure that the Refresh link in the Entitlements section is clickable.
Click Save.

The Parameters for the Cato SCIM application are configured and the application is ready to connect to your Cato account.

Syncing VPN Users to Your Cato Account

After the SCIM application can connect to your account, assign the users that you are syncing to Cato. Then you can continue with the next section to add groups to application.

To provision individual users to your Cato account:

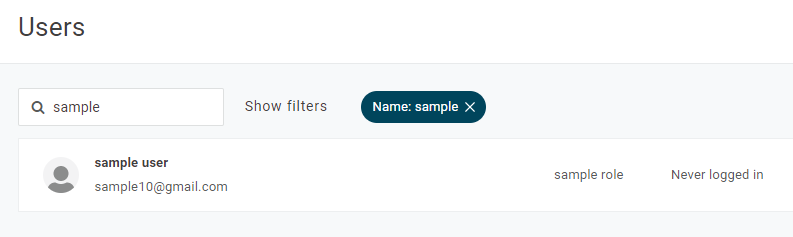

From top menu, select Users > Users.
Select the user that you are assigning to the SCIM application.

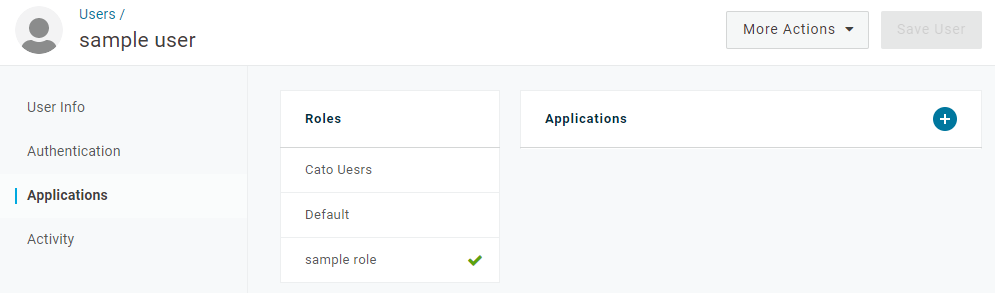

From the navigation pane for the user, select Applications.

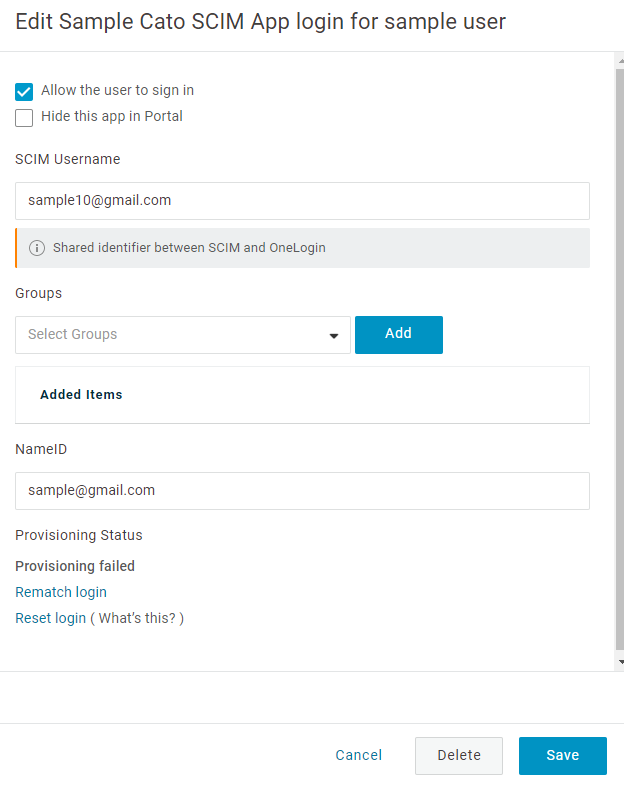

Assign the SCIM application to the user:
1. Click the plus button to add a new application to the user.

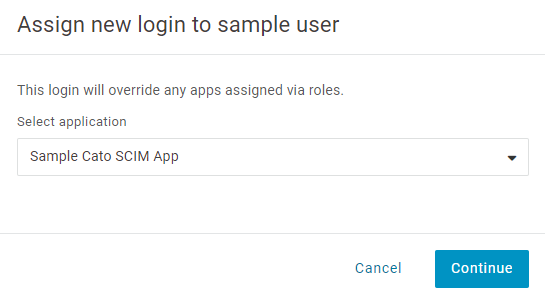

2. In the Assign new login to window, from the Select application drop-down menu, select the SCIM application.
3. Click Continue.
4. In the pop-up window, click Save.

  The SCIM app is assigned to the user.
Click Save User. The settings for this user are updated.
Repeat steps 4 and 5 above for each user that you are provisioning to your Cato account.

To show the users that are assigned to the SCIM application, go to the SCIM application and from the application navigation pane select Users.

Syncing OneLogin Roles to Your Cato Account

You can assign roles in OneLogin with users that you are syncing to Cato. You can choose to manually add users to this role.

For each role, create a rule that connects the role to the application. Then assign the role to the application and the roles and their associated users are synced to new groups in your Cato account.

To provision OneLogin roles to you Cato account:

From top menu, select Users > Roles.
Select the role that you are assigning to the SCIM application.
(Optional) Manually assign users to the role:

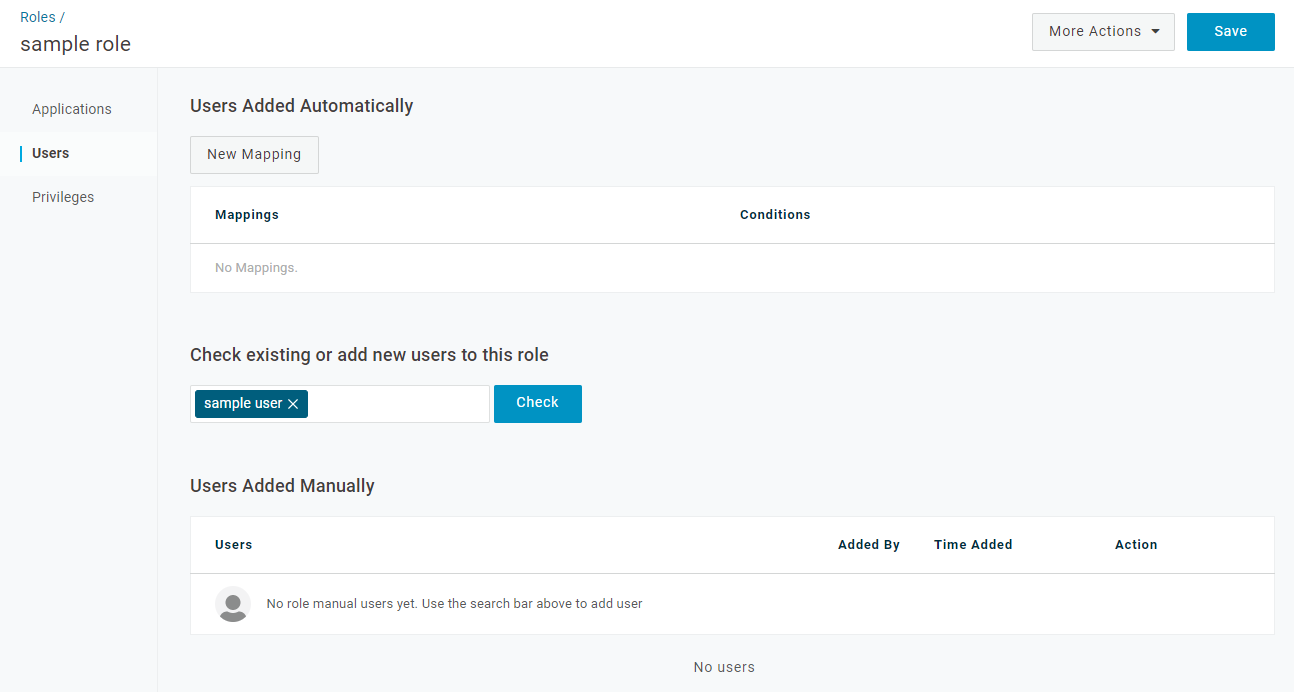

1. From the navigation menu in the role, select Users.
2. In Check existing or add new users to this rule, enter the username that you're adding to the application.
3. Click Check, the window shows the user.
4. Click Add To Role. The user is added to the Users Added Manually section.
Create a rule to connect the role to the SCIM application.
1. From the top menu, click Applications > Applications and then open the SCIM application.

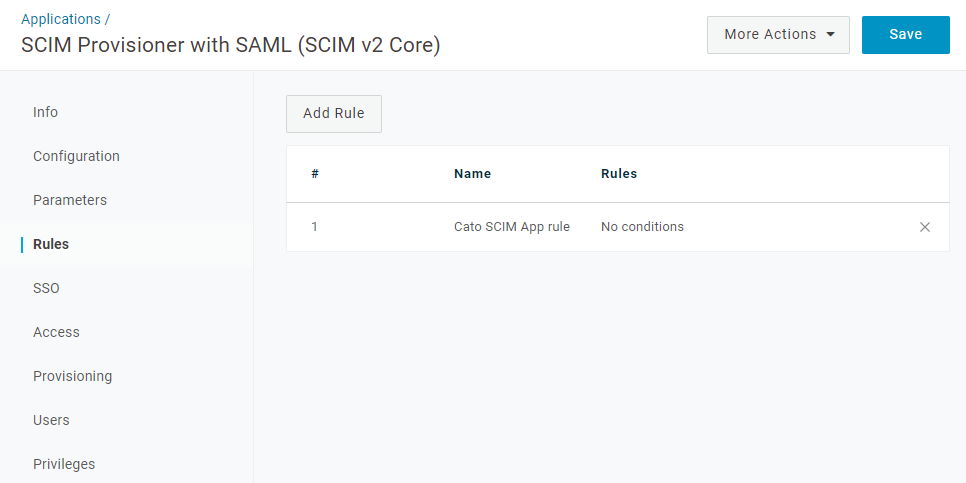

2. From the application navigation pane, select Rules.
3. Click Add rule.

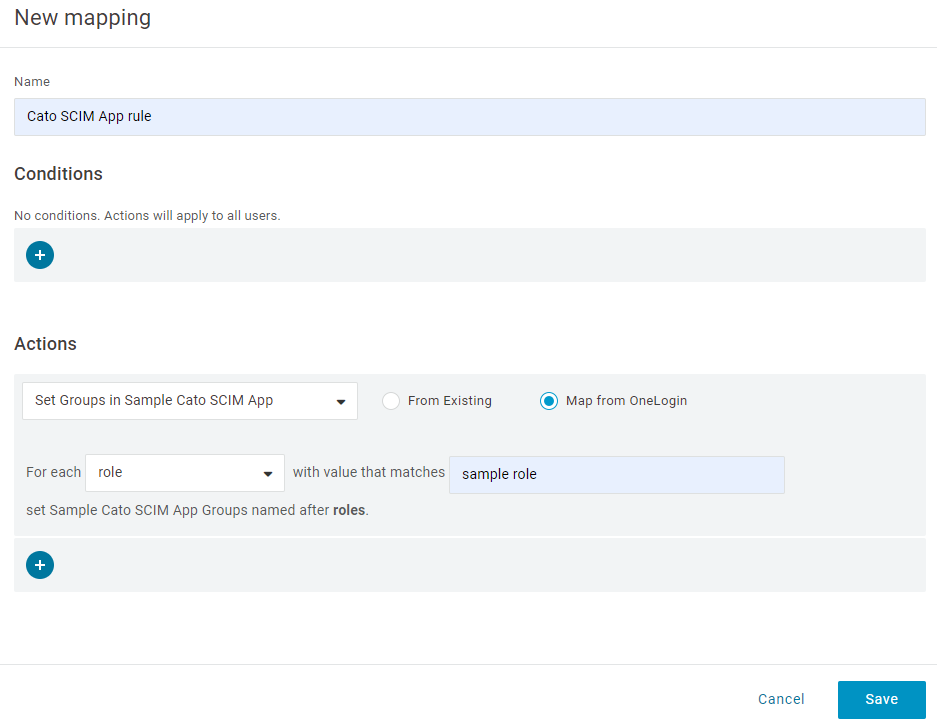

4. In the New mapping window, enter a Name for the rule.
5. In the Actions section, select Set Groups in <application name>. The screenshot above shows the option as Set Groups in Sample Cato SCIM App.
6. From the For each drop-down menu, select the role.
7. Enter the value that matches for the name of the role. The screenshot above shows the role name sample role.
8. Click Save. The rule is added to the application.
9. Click Save. The rule connecting the role to the application is saved to the application.

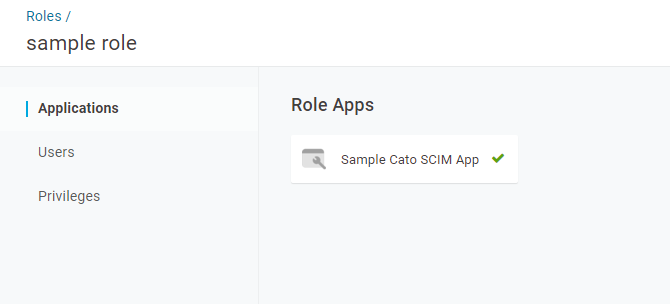

Assign the SCIM application to the role.
1. From the navigation menu in the role, select Applications.
2. Click the plus button to show the applications in your OneLogin account.
3. Select the Cato SCIM application and click Save. The application is added to the role.
The SCIM application syncs the roles from OneLogin to your Cato account.

Removing Users or Groups from the SCIM App

Important

Important: Do not delete Users or Groups that are provisioned with the SCIM app directly from the Cato Management Application. You must first unassign them in the SCIM app.

When you want to remove users or groups that are provisioned to your Cato account with the SCIM app, unassign them in the app. The users and groups are automatically disabled during the next time the SCIM app syncs with your account.

To remove users or groups that are synced to your Cato account:

In the Cato SCIM app, unassign the users or groups.

During the next sync, the SCIM app disables the users or groups in your Cato account.
(Optional) After the users or groups are disabled, you can delete them from the Cato Management Application.

Assigning SDP Licenses

In the IdP, define the groups and users that are synced to your Cato account. After the initial sync is completed, all users are then created in the Cato Management Application and visible on the Users Directory page .

You can then assign SDP licenses to users, for more information, see Assigning SDP Licenses to Users.

Understanding Events for SCIM Provisioning

The Cato Management Application generates events whenever users and groups are blocked because they fail to meet the requirements of the Client Connectivity Policy.

Each hour, the Cato Management Application sends email alerts that summarize the SCIM provisioning actions (success or failure).

The following table explains the different events.

Event Type	Action	Description
SCIM Provisioning	Success	The action to sync the users or groups to your account with the SCIM app succeeded.
SCIM Provisioning	Failure	The SCIM app failed to sync the IdP with your account. The event message explains the reason for the sync failure.
SCIM Provisioning	Disabled	A disabled user in the IdP was successfully synced and disabled in your Cato account.
