What is the Socket Next Gen LAN Firewall

Note

Note: Upcoming Automatic Migration of Site LAN Firewall Rules to Account-Level Policy

Starting July 1, 2025, we will migrate existing site-level LAN firewall rules to the account-level Socket Next Gen LAN Firewall policy.

  • Each site-level rule will automatically be configured in the new policy as a Network rule to specify the routing, and a Firewall rule to allow or block the traffic
  • The rules for each site will be added as a separate section in the rulebase
  • The migration is a seamless, automatic process and no service disruption is anticipated
  • If you're interested in migrating your policy before July 1, please contact cato-releases@catonetworks.com

Overview

By default, LAN traffic behind a site is sent over the WAN to the PoP for traffic inspection. This means that for hosts behind the same site, the traffic is sent over the last-mile to the PoP, and then sent back to the same site. You can also use the Socket as a LAN firewall to segment the traffic locally, without needing a third-party firewall appliance.

The Socket Next Gen LAN Firewall lets you apply Layer 2 through Layer 7 (application layer) policy controls to east-west traffic while routing and segmenting the traffic behind the site. Routing the traffic locally also ensures that critical environments such as OT and IoT can continue to operate over the local network, even if the Internet connection is down.

The LAN Firewall is an account-level policy that lets you configure rules to apply corporate-wide policies across multiple sites, without manually configuring each site.

Use Case

Example Corp has 200 global branches that use the same LAN network design. This includes VLAN ID 10 for servers, and VLAN ID 20 for business-critical OT devices. The network team decides to route traffic between these VLANs locally, which enables the OT devices and servers to continue communicating even if there is an ISP outage. Additionally, they only want to allow specific protocols between the VLANs.

The network team creates a LAN Network rule with the Site configured as a Group object containing the 200 relevant sites, and the Transport configured as LAN to route the traffic locally. Then they create a LAN Firewall rule under the LAN Network rule, with VLAN 10 and VLAN 20 configured as Source and Destination, and Direction as Both. Under Service/Port, they configure the protocols they want to allow, and the Action is configured as Allow.

This single LAN Firewall rule applies the policy to each one of the 200 local networks, without having to configure separate rules for all the sites.

Prerequisites

  • The Socket Next Gen LAN Firewall is available only for accounts that don't have a current site-level LAN Firewall policy configured. In the future, Cato will convert the current site-level LAN Firewall policies to the Socket Next Gen LAN Firewall policy

  • Supported from Socket v22 and higher

Throughput for the Socket Next Gen LAN Firewall

This section shows the throughput for sockets when using the Socket Next Gen Lan Firewall. For information about general site throughput on WANs for different socket types, see Cato Cloud Thresholds and Limits.

The maximum supported throughput for the Socket Next Gen LAN Firewall is based on an app-mix of TCP and UDP applications defined by Cato.

Socket Model

L4 Mbps Throughput

L7 Mbps Throughput

X1500

1000

740

X1500B

1000

1000

X1600 and X1600 LTE

8000

2500

X1700

8000

8000

X1700B

13000

10000

Note: Performance and throughput are measured under ideal testing conditions based on 1500 packet MTU.

Fundamental Concepts

This section explains basic concepts for understanding the role and capabilities of the Layer 7 LAN firewall.

Types of Traffic

To understand the role of the LAN Firewall and its relationship to other Cato policies, it’s important to understand that Cato identifies traffic as one of three different types: LAN, WAN, or Internet. Understanding the distinctions and characteristics of these types of traffic is crucial for optimal policy planning and utilization of the different Cato firewall policies. For more information, see Getting Started with the Cato Firewalls.

WAN vs. LAN traffic within the Same Site

Traffic between hosts within the same site can be handled as either LAN traffic (routed by the Socket and not sent to the PoP), or WAN traffic (sent to the PoP and then back to the site), depending on your configuration. The default behavior for the Socket is to route all traffic to the PoP for inspection and the PoP blocks or allows the traffic. However, traffic that matches the LAN Firewall policy is routed locally and not sent to the PoP.

When traffic from a host in the LAN reaches the Socket, the Socket checks to see if the traffic matches a rule in the LAN firewall policy.

  • If it matches a rule, the Socket routes the traffic to the local destination without sending it to the PoP.

  • If the traffic doesn't match a LAN firewall rule, it is sent to the PoP for handling by the WAN or Internet firewall.

For more information about defining LAN traffic, see below, The LAN Firewall Policy.

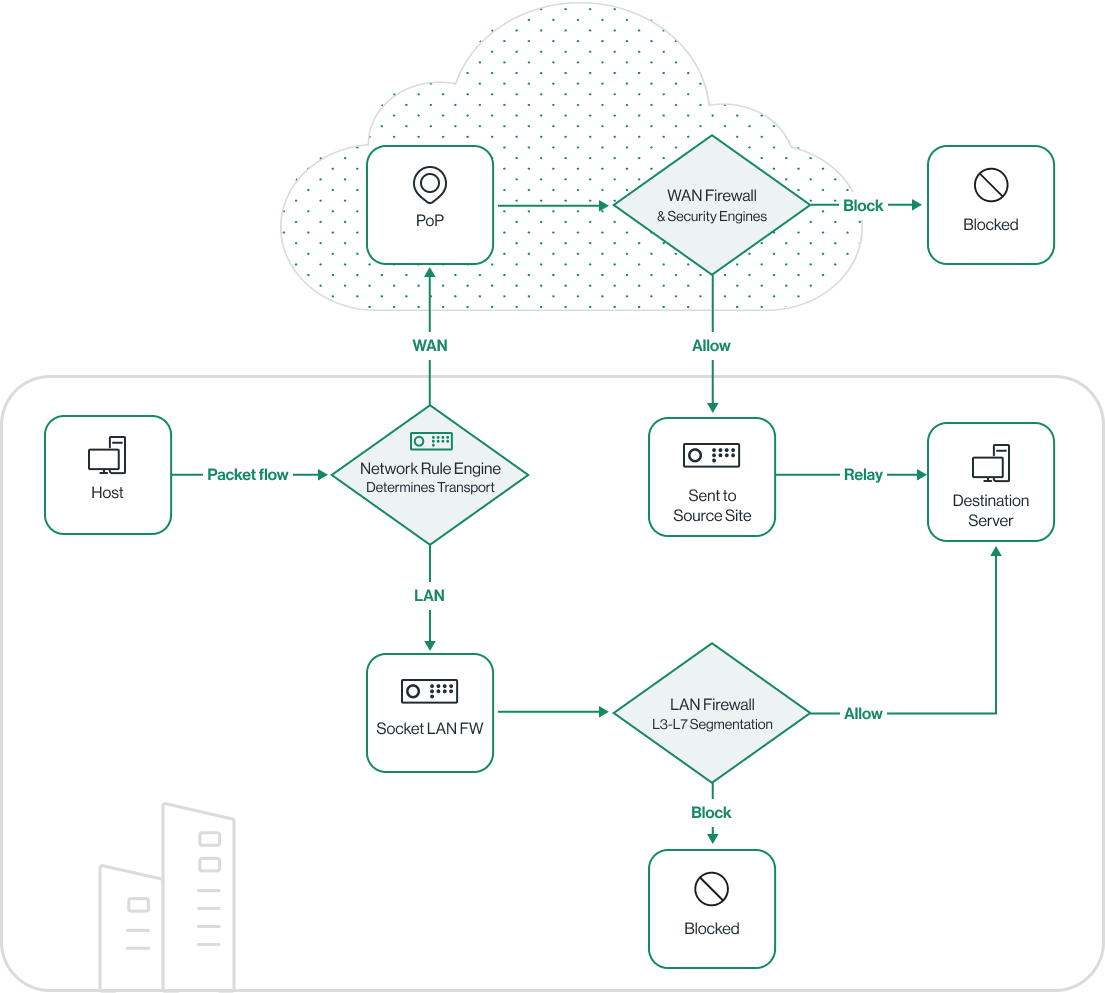

The following is a state machine diagram showing how the Socket LAN Firewall handles traffic from a host on the local network.


Layer 7 vs Layer 2-4 Firewall Rules

The LAN firewall supports Layers 2 through 4 and Layer 7 (application layer) inspection, enabling you to control traffic based on applications, services, and specific content within applications. By default, sites support Layer 2-4 functionality, and you define in the policy which sites are also enabled with Layer 7 capabilities. This section describes the difference between Layer 2-4 and Layer 7 firewalling.

Layer 2-4 firewalls filter traffic based on basic criteria such as IP addresses, ports, and transport-layer protocols like TCP or UDP. For these criteria, the Socket firewall can decide to allow or block the traffic based on the first packet. While effective for basic traffic control, this approach doesn’t analyze the actual data being transmitted within the packets.

Layer 7 (Application Layer) firewalls inspect the packet payload to identify specific applications, domains, or protocols. For example, a Layer 7 firewall can distinguish between SMBv1 and SMBv3 traffic or identify the specific application generating the traffic (such as Office 365). This deeper inspection allows for more granular policy enforcement and improved control over local network traffic. However, because Layer 7 inspection requires analyzing additional packets to determine the application data (e.g. extracting a domain name in HTTP traffic), and greater Socket resources than Layer 4 processing. This should be taken into consideration when planning your corporate LAN firewall policy and deciding which sites to enable with Layer 7 capabilities.

When you enable a site with Layer 7 capabilities, the Socket performs deep packet inspection on traffic, whether or not a LAN Firewall rule is configured, as long as there is traffic defined to use LAN transport (see below, The LAN Firewall Policy). This means that Layer 7 data appears in events for the site traffic, including fields such as Application, App Risk, and Custom App.

The LAN Firewall Policy

The Socket applies the LAN firewall policy by first determining a routing decision for the LAN traffic - whether to send the traffic to the PoP or to route it locally. Secondly, the LAN firewall rules are applied to determine if the traffic is blocked or allowed.

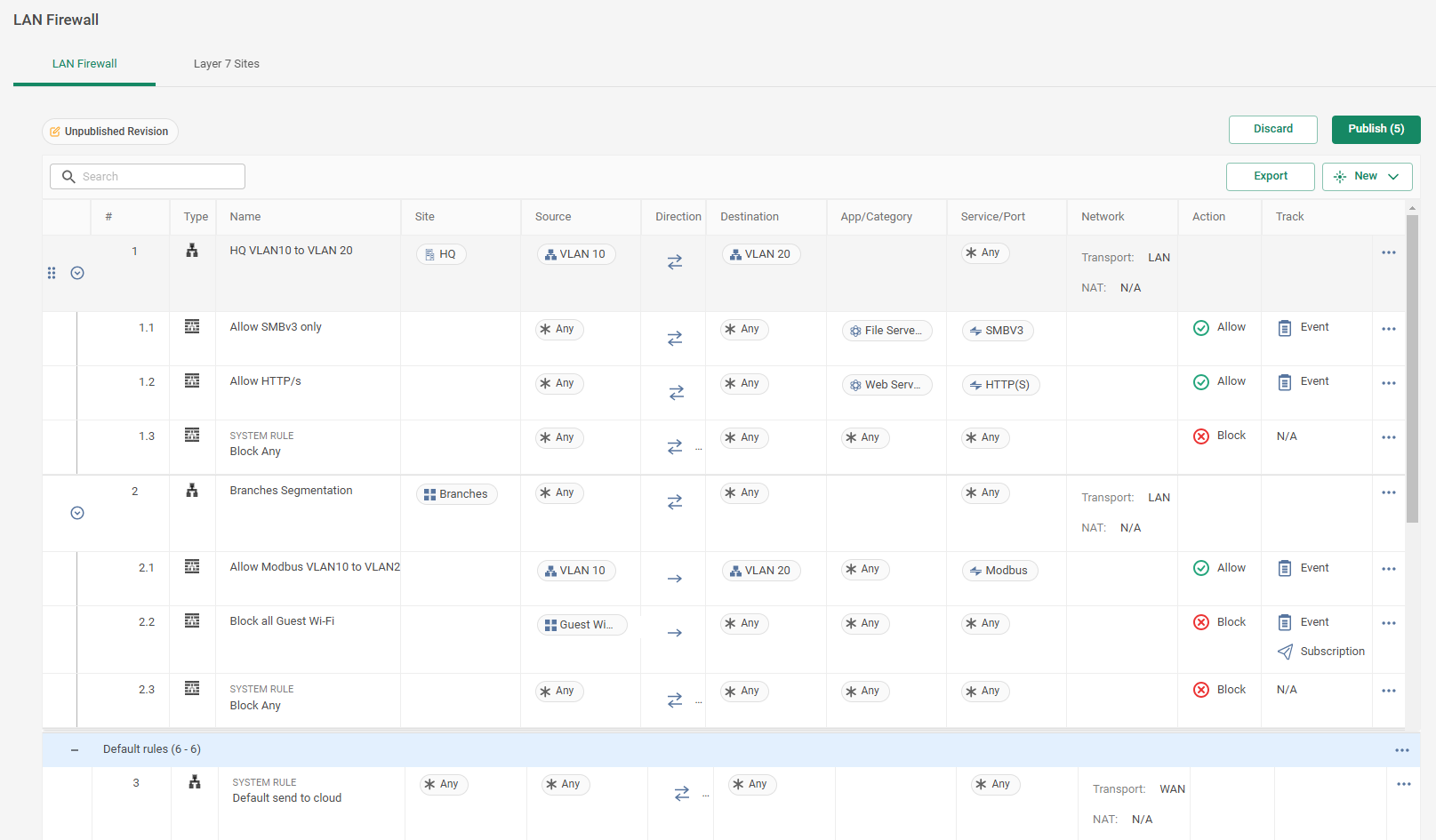

To implement this, the LAN firewall policy includes LAN Network and LAN Firewall rules. The LAN Network rules define how the Socket routes the traffic, locally over the LAN, or as WAN traffic sent to a PoP. Once a LAN Network rule is matched and defines the Transport as LAN, the related LAN Firewall rules determine whether the traffic is allowed or blocked, and the Socket enforces the rule. If traffic doesn’t match any LAN Network rule, it is treated as WAN traffic and sent to the PoP.

LAN Firewall rules are linked to a single LAN Network rule, ensuring that firewall actions are specific to the traffic defined by that LAN Network rule.

The following sections describe the characteristics for LAN Network and LAN Firewall rules.


LAN Network Rules

LAN Network rules control which transport (LAN or WAN) is used to route traffic between various network hosts or segments. This is a global policy configured for the entire account, and not per specific sites. This means each rule can be configured to apply to multiple sites in the account. For example, if you set up multiple sites using the same VLAN configuration, you can create a single rule that applies to the VLANs in each site defined in the rule.

LAN Network rules make Layer 4 routing decisions and don't use Layer 7 functionality. For example, you can define Network rules with conditions for sites, VLANs, or specific protocols, but you can’t make a condition based on the application.

A LAN Network rule can be a parent to multiple LAN Firewall rules under it. There is a default ANY-ANY Block rule configured as the last rule under a LAN Network rule. Therefore, if traffic matches a LAN Network rule, but doesn't match a LAN Firewall rule, it is blocked.

LAN Firewall Rules

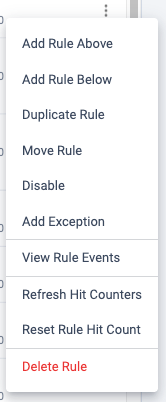

LAN Firewall rules allow or block specific types of traffic, and track these events for monitoring and compliance purposes. Each LAN Firewall rule is directly linked to a specific parent LAN Network rule and is limited to the source and destination scope of the parent rule. LAN Firewall rules support up to Layer 4 segmentation by default, including segmentation based on MAC addresses. Additionally, for sites configured for Layer 7 functionality, the LAN Firewall rules can include intelligent traffic filtering based on applications, domains, and other Layer 7 conditions.

There is a default LAN Firewall ANY-ANY Block rule configured as the last rule under each LAN Network rule. Therefore, if traffic matches a LAN Network rule, but doesn't match a LAN Firewall rule, it is blocked. This implicit behavior enforces a true zero-trust approach to on-premises segmentation by ensuring that only explicitly allowed traffic can traverse the local network.
