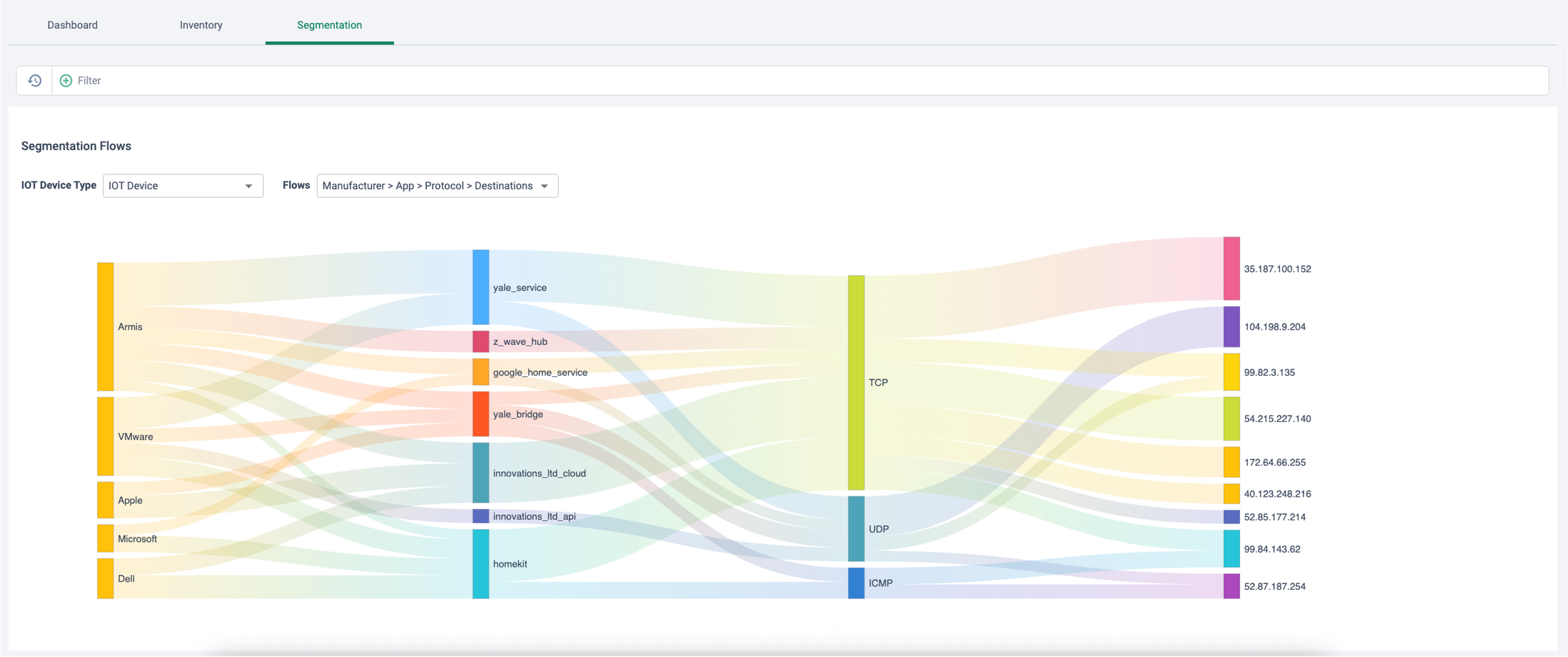

The Segmentation Flows widget uses a Sankey diagram to visually represent the protocols and destinations used by devices when accessing the Internet. This visualization helps you quickly understand traffic distribution and relationships for more informed segmentation and security policy decisions.
The diagram displays traffic as flows between hierarchical levels. This includes:
-
Device Type
-
Application
-
Protocol
-
Destination (optional view)
The width of each connection represents the relative volume of traffic flowing between entities.
You can display the Segmentation Flow by navigating to Home > Devices > Segmentation tab.
