Configuring and Monitoring Socket Wi-Fi Networks

This article explains how to configure Wi-Fi networks on supported Sockets and review analytics for the networks.

Note

Note: Please contact feature-releases@catonetworks.com for more information about enabling and using this feature.

Overview

The X1600 and X1600 5G Socket models include an optional integrated Wi-Fi capability that lets you deliver secure wireless access directly from the Socket. By combining SD-WAN, security, and enterprise-grade Wi-Fi in a single device, you can reduce hardware footprint at the site, simplify deployment, and centrally enforce consistent network and security policies for both wired and wireless users.

Integrated Wi-Fi extends the Cato SASE platform to the wireless edge. Wireless traffic is inspected by the same security engines as wired traffic, including Firewall, IPS, Anti-Malware, and additional security services enabled in your account. This ensures consistent policy enforcement, full visibility, and simplified segmentation for corporate, guest, and IoT networks without requiring a separate wireless controller or firewall appliance.

Because Wi-Fi is managed directly from the Cato Management Application (CMA), you can configure SSIDs, authentication methods, encryption standards, and network segmentation for multiple sites from a single console. This centralized management model helps you maintain uniform security standards, streamline site rollouts, and reduce operational overhead.

HA Configurations for Socket Wi-Fi Networks

These are the supported configurations to provide HA including Wi-Fi connectivity:

2 X1600 Sockets with integrated Wi-Fi
2 X1600 5G Sockets with integrated Wi-Fi

HA is not supported (for either wired or Wi-Fi connectivity) in a site with one X1600 Socket and one X1600 5G Socket. A site with 2 X1600 Sockets (or 2 X1600 5G Sockets), one with integrated Wi-Fi and one without, supports HA for wired connectivity but not for Wi-Fi.

Configuring Socket Wi-Fi Networks

For sites with connection type X1600 or X1600 Cellular, with Socket models with integrated Wi-Fi, you can configure up to four Wi-Fi networks.

To configure a Socket Wi-Fi network

From the navigation menu, click Network > Sites and select the site.
From the navigation menu, select Site Configuration > Socket.

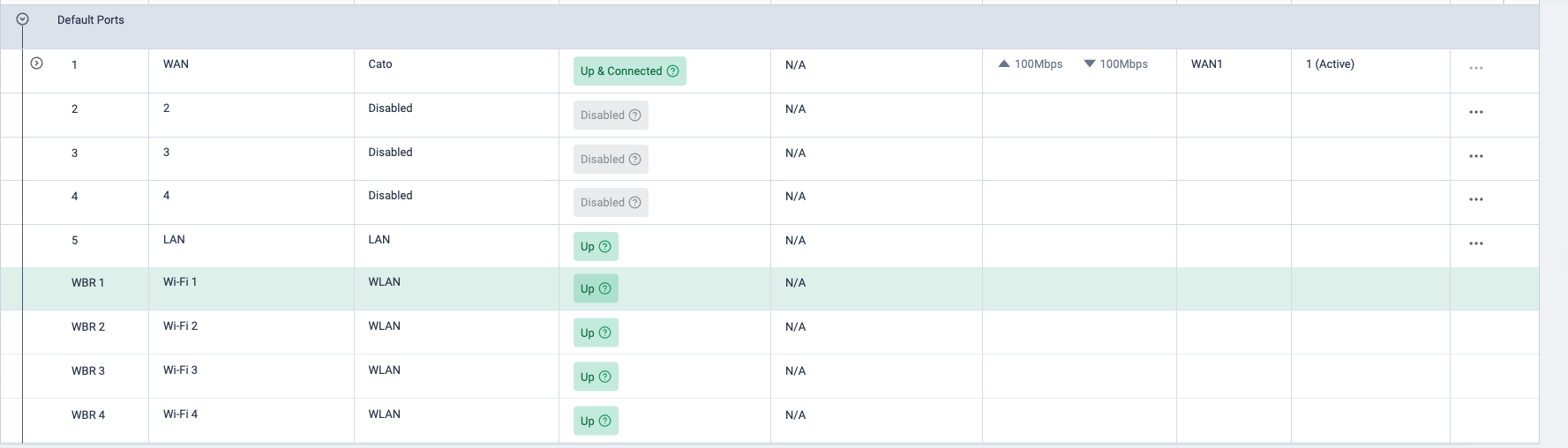

In the ports table, under Default Ports, click one of the Wi-Fi interfaces (labelled WBR1-WBR4). The Edit SSID panel opens.
In the General section, enter a name for the network and move the toggle to Enabled.
In the SSID Setup section, select whether the SSID name is Hidden or Visible to users.

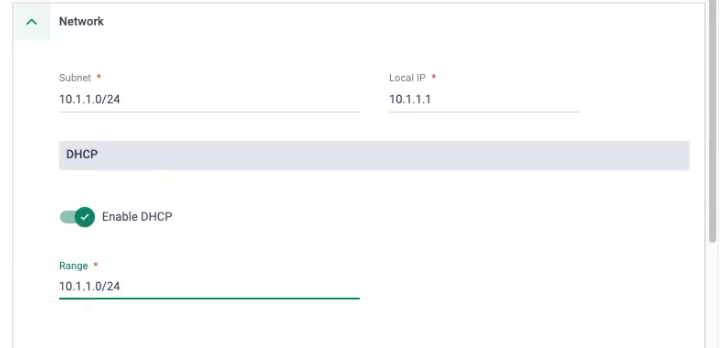

In the Network section:
- Enter the Subnet IP range for the network.
- Enter the Local IP address for the interface.
- Under DHCP:
  - Enable or disable DHCP for wireless clients on this SSID.
  - When DHCP is enabled, enter the IP Range that defines the pool of addresses assigned to clients.
  The DHCP lease time follows the global account setting for DHCP lease time. For more information on setting account DHCP lease time, see Configuring DHCP Settings.

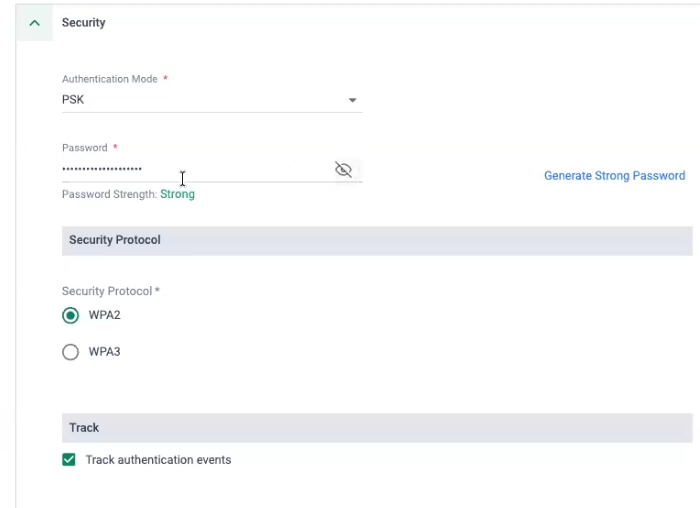

In the Security section:
- Select the Authentication Mode for the SSID:
  - PSK - Users authenticate with a shared password
  - Open – Users connect without authentication
- In Password, enter the pre-shared key when PSK is selected.

  Click Generate Strong Password to automatically create a secure password.
- Under Security Protocol, select the encryption standard.
- Under Track, select Track authentication events to generate events for wireless authentication activity.
In the Radio section, select the Broadcast Bands for this SSID. You can enable one or both bands.

Monitoring Socket Wi-Fi Networks

You can monitor Socket Wi-Fi networks at the interface, SSID, device, and traffic levels from multiple pages in the CMA. This gives you operational visibility into radio status, connected clients, IP assignment, and throughput per Wi-Fi interface.

Viewing Socket Wi-Fi Network Status

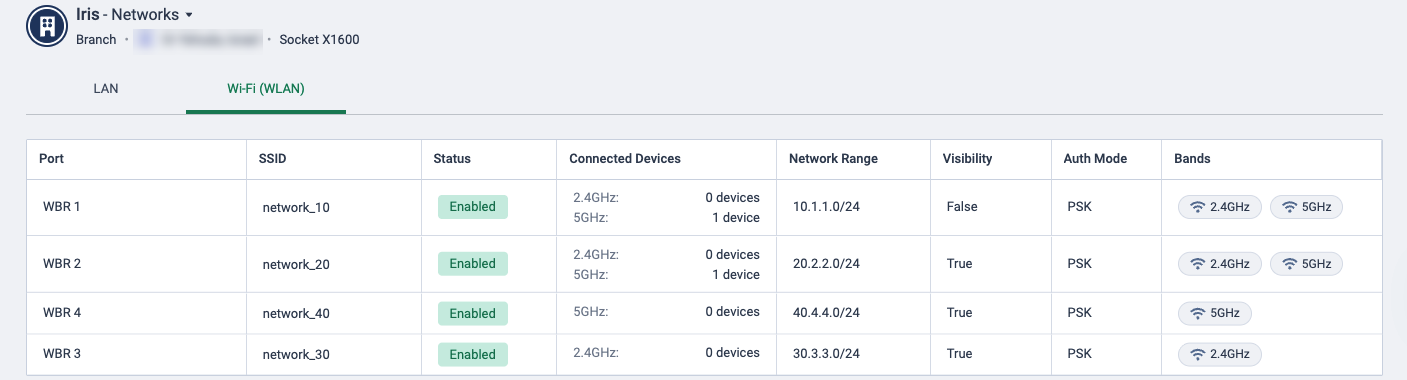

The Networks page provides an overview of the Socket Wi-Fi networks including configured SSIDs and connected devices.

These are the fields shown for each interface:

Port - The identifier for the interface
SSID - The configured name of the Wi-Fi network
Status - Shows whether the SSID is enabled on the interface
Connected Devices - the number of devices connected on each band
Network Range - The configured subnet for the SSID
Visibility - Shows whether users can see the SSID name
Auth Mode - Shows whether users authenticate with a password or connect without authentication
Bands - Shows the broadcast bands configured for the SSID

Viewing Wi-Fi Interface Status

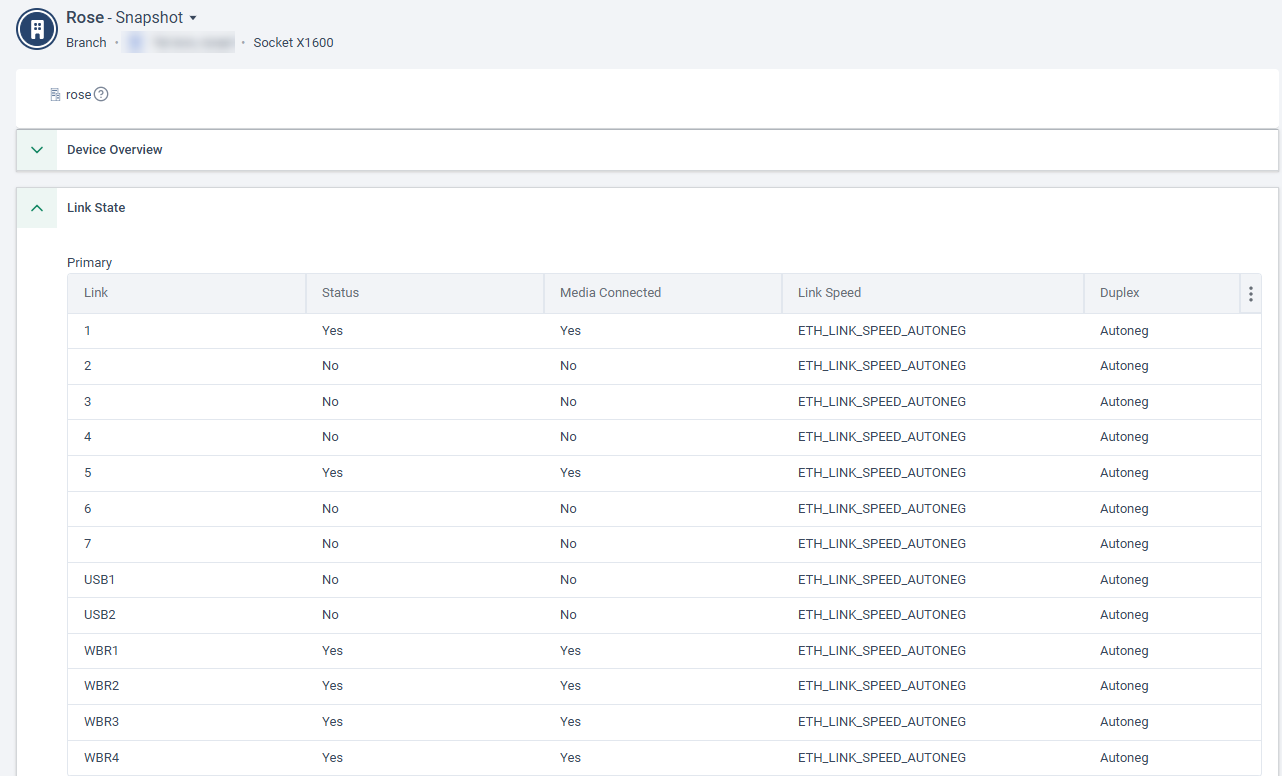

The Snapshot page shows operational status for the Socket Wi-Fi interfaces. In the Link State section, the Wi-Fi interfaces are listed as WBR1 – WBR4.

These are the fields shown for each interface:

Status - shows if the link is Up or Down
Media Connected - Always shows Yes for Wi-Fi interfaces as no cable connection is required.
Link Speed - Auto-negotiation, or the maximum speed configured for the link in the Socket WebUI
Duplex - Auto-negotiation, or the duplex configured for the link in the Socket WebUI

Viewing Connected Wi-Fi Hosts

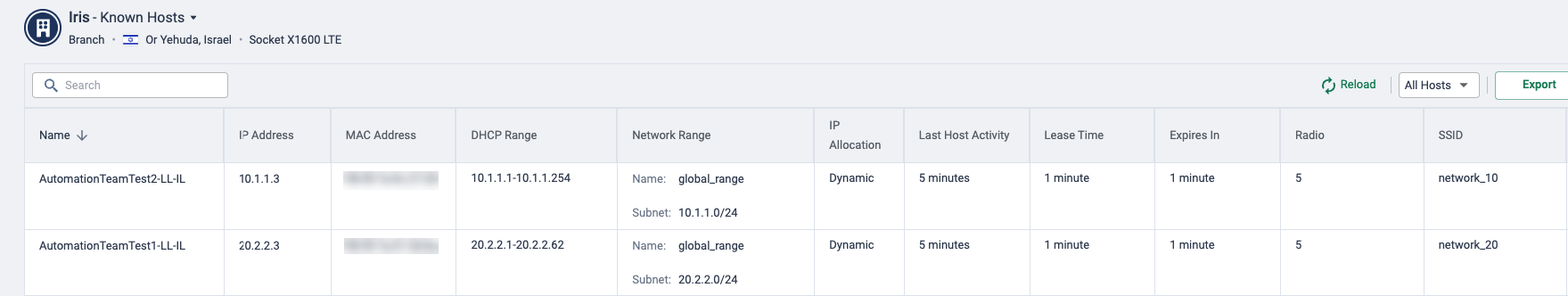

The Known Hosts page provides device-level visibility for Wi-Fi clients.

These are the fields shown for each host connected to a Wi-Fi network:

IP Address
MAC Address
DHCP Range
Network Range
IP Allocation - Shows how the IP address was allocated to the host:
- Dynamic - hosts with a dynamic IP address allocated by the Cato DHCP server
- Reserved - hosts with a static IP address allocated by the Cato DHCP server
  - Reserved hosts are defined in the Hosts screen for the site (Network > Sites > {site name} > Site Configuration > Static Host Reservations)
- N/A - Hosts that are sending traffic, but the IP address was not allocated by the Cato DHCP server
Last Host Activity - Amount of time that elapsed since this host had network activity
Lease Time - Duration for the DHCP lease

For hosts with Reserved IP Allocation, the Lease Time value is Permanent.
Expires In - Amount of time remaining for the DHCP lease for this host

For hosts with Reserved IP Allocation, the Expires In value is Never.
Radio - Shows the broadcast band for the Wi-Fi network the host is connected to
SSID

Monitoring Wi-Fi Traffic and Throughput

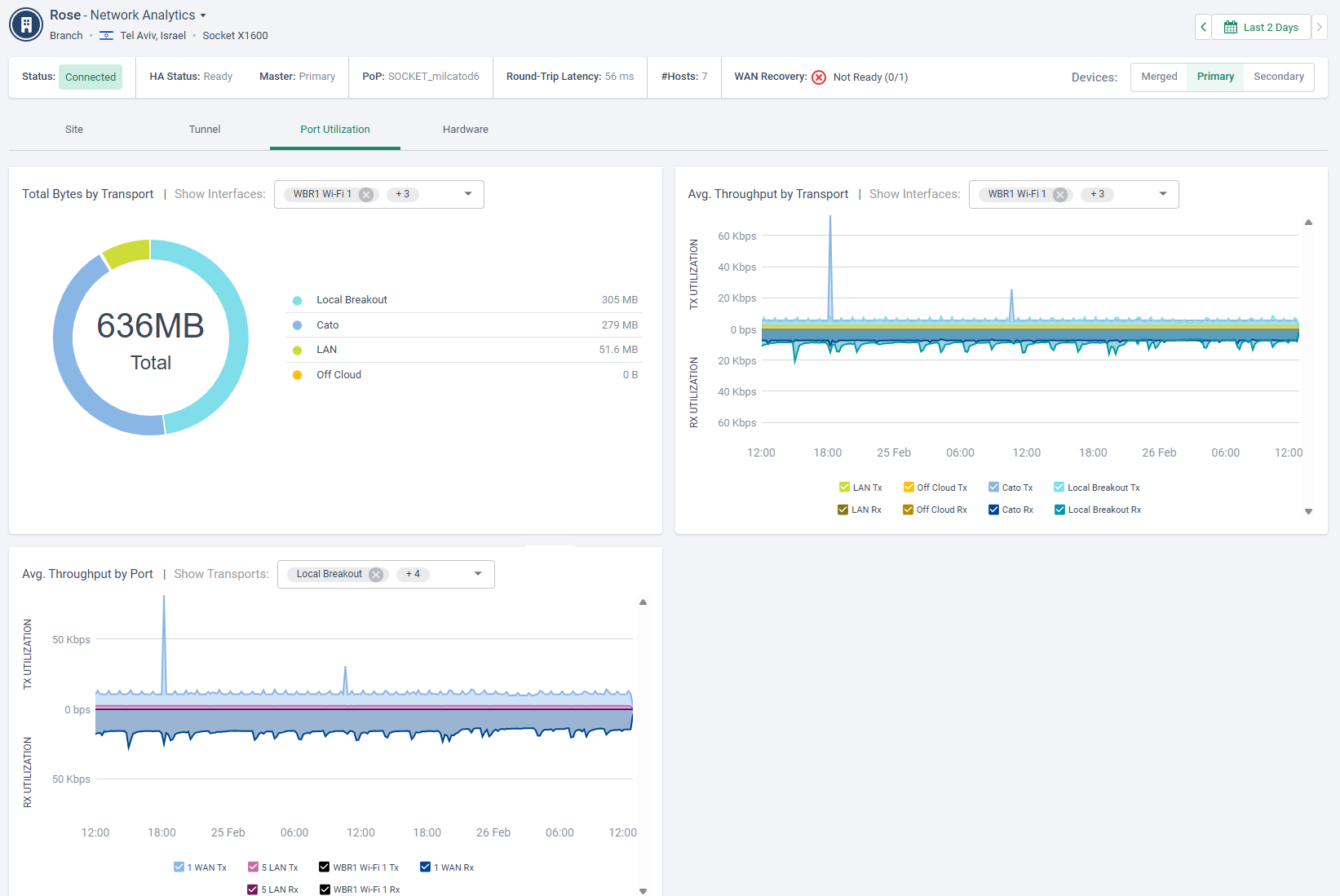

You can analyze Wi-Fi interface traffic from the Network Analytics page.

In the Avg. Throughput by Port widget, select a Wi-Fi interface (for example, WBR1) to view:

Transmit (Tx) utilization
Receive (Rx) utilization

This view helps you monitor wireless usage, identify peak utilization periods, and validate throughput on specific Wi-Fi interfaces.
