ServiceNow: Configuring Integration with XOps Stories

To create custom fields:

1. Log in to the ServiceNow platform.
2. Open any Incident.
3. From the top banner, right-click and navigate to Configure > Form Builder.
4. If required, agree to try the Form Builder and select the Default view.
5. Click Add a new field in the Incident Table.

6. Add these fields:

   • CMA Account ID

     • Type: Integer
     • Properties: Read Only, Mandatory, Active

   • CMA Story ID

     • Type: String
     • Properties: Read Only, Mandatory, Active

To create a secure system property:

1. Navigate to https://<your instance>.service-now.com/sys_properties_list.do
2. Click New.

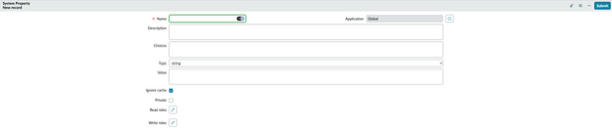

3. In the System Properties New Record form, add these details:


   • Name: cma_prod_api_key
   • Type: Password2
   • Value: The Service API key you created in step 2
4. Click Submit.

To create a REST message:

1. In your ServiceNow Platform, navigate to All>System Web Services > Outbound > REST Message.
2. Click New.

3. In the REST Message form, add these details:

   • Name: Add a name for the REST Message
   • Endpoint: https://<your Cato account name>.cc.catonetworks.com/api/v1/graphql2
   • Authentication type: No authentication

   • HTTP Methods: Click New and add these details:

     • Name: Add a name
     • HTTP method: POST
     • Endpoint: https://<your Cato account name>.cc.catonetworks.com/api/v1/graphql2
4. Click Submit.

To create a business rule:

1. In your ServiceNow Platform, navigate to All > System Definitions > Business Rule.
2. Click New.

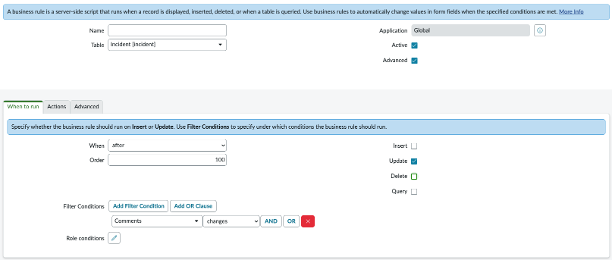

3. In the Business Rule New Record form, add these details:


   • Name: Add a name for the Business Rule
   • Table: Incident
   • When: After
   • Update: True (Check the checkbox)
   • Filter Condition: Comments changes

4. On the Advanced tab, add this script:

   (function executeRule(current, previous) {
     try {
       var lastComment = current.comments.getJournalEntry(1) || '';
       lastComment = stripJournalHeader(lastComment);
       if (!lastComment) {
         gs.info("GraphQL webhook: Empty comment, skipping " + current.number);
         return;
       }
       var accountId = current.u_cma_account_id;
       var storyId = current.u_cma_story_id;
           gs.info("GraphQL webhook: accountId " + accountId + " story " + storyId);
       if (!accountId || !storyId) {
         gs.error("GraphQL webhook: Missing accountId/storyId for " + current.number);
         return;
       }
       var gqlQuery =
         "mutation CreateStoryComment($accountId: ID!, $input: AddStoryCommentInput!) {" +
         "  xdr(accountId: $accountId) {" +
         "    addStoryComment(input: $input) {" +
         "      comment { id type __typename }" +
         "      __typename" +
         "    }" +
         "    __typename" +
         "  }" +
         "}";
       var body = {
         query: gqlQuery,
         variables: {
           accountId: accountId.toString(),
           input: {
             type: "USER",
             storyId: storyId.toString(),
             text: lastComment
           }
         }
       };
           var apiKey = gs.getProperty('cma_prod_api_key');
       var r = new sn_ws.RESTMessageV2('Update XDR story comments CMA Prod', 'post');
       r.setRequestHeader('Content-Type', 'application/json');
       r.setRequestHeader('Accept', 'application/json');
           r.setRequestHeader('x-api-key', apiKey);
       r.setRequestBody(JSON.stringify(body));
       //var response = r.execute(); // can be changed to Async - only for debug purposes
           var eccSysId = r.executeAsync();
       gs.info("GraphQL webhook queued, ECC sys_id=" + eccSysId);
       var status = response.getStatusCode();
       var responseBody = response.getBody();
     // Safe logging (see next section for masking)
        gs.info("GraphQL webhook: status=" + status);
        gs.info("GraphQL webhook: responseBody=" + responseBody);
     } catch (ex) {
       gs.info("GraphQL webhook: Failed: " + ex.message);
     }
     function stripJournalHeader(text) {
       text = text || '';
       if (text.indexOf('\n') > -1) {
         return text.split('\n').slice(1).join('\n').trim();
       }
       return text.trim();
     }
   })(current, previous);

5. Click Submit.
