Provisioning Users from Google Workspace (EA)

Note

Note: This is an Early Availability (EA) feature that is only available for limited release. For more information about enabling the feature, contact your Cato Networks representative or send an email to ea@catonetworks.com.

Overview

The Google Workspace integration lets you provision users and groups from Google Workspace to your Cato account.

User information is securely and continuously synced from Google Workspace to Cato to create and update users and groups. This helps keep your Cato user directory aligned with your Google Workspace directory.

When user details change in Google Workspace, the changes are synced to Cato. For example, when an employee leaves the company and their Google Workspace account is suspended or removed, this change is reflected in Cato.

After users are provisioned from Google Workspace, the user can be identified by user awareness. For more information, see Using Cato Identity Agents for User Awareness.

Supported Capabilities

The capabilities supported by this integration are:

  • Full user directory sync: Every user with profile details, status, department, and org unit

  • Full group directory sync: Every group with description and member list, including nested groups

  • Real-time user lifecycle events: Updates for users created, modified, or deleted

  • Real-time group membership changes: Updates for members added or removed from groups

  • Admin audit trail: The creation and deletion of the connector are recorded in the audit trail

Viewing Users Provisioned from Google Workspace

You can identify users provisioned from Google Workspace on the Access > Users page. On the User Directory tab, the Source column displays Integration for a user provisioned from Google Workspace.

If a user has been deleted in Google Workspace, they are still visible on the Access > Users page, with a Disabled status. If required, they can be deleted from the Cato Management Application. For more information, see Working with Users.

Configuring the Google Workspace Integration for User Provisioning

To configure the Google Workspace integration, you need to:

  1. Configure the integration within the SaaS application
  2. Create the API connector in the CMA

Prerequisites

  • Google Workspace Business Standard, Business Plus, Enterprise, or Education license
  • A Super Admin account is required to configure domain-wide delegation

Known Limitations

  • Up to 10,000 users and 10,000 groups can be synced
  • Provisioning from Google Workspace can coexist with provisioning from another IdP with SCIM or LDAP
  • Multiple Google Workspace connectors for user provisioning are not supported

Step 1: Configure the Integration in the Google Cloud Console

In the Google Cloud Console, create a Service account private key to enter into the CMA.

To configure Google Workspace Integration:

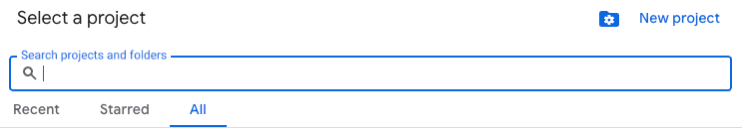

  1. In your Google Cloud Console, click Select a Project.

  2. Click New project.

  3. Choose a Name and Location and click Create.
  4. Navigate to APIs & Services > Library.

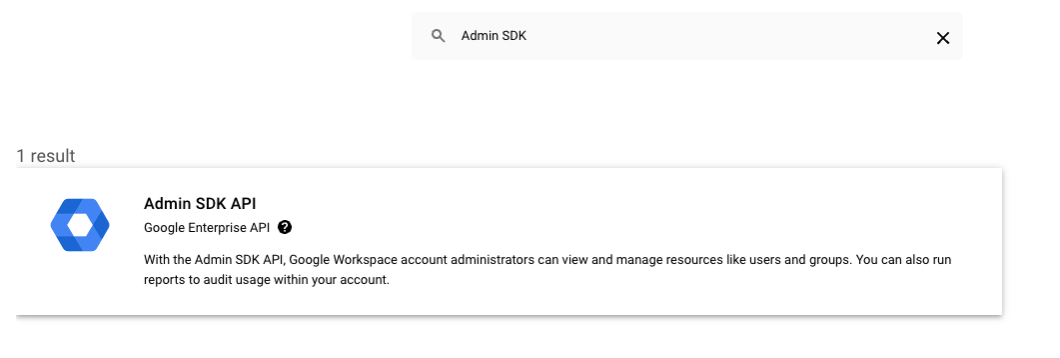

  5. Search for Admin SDK.

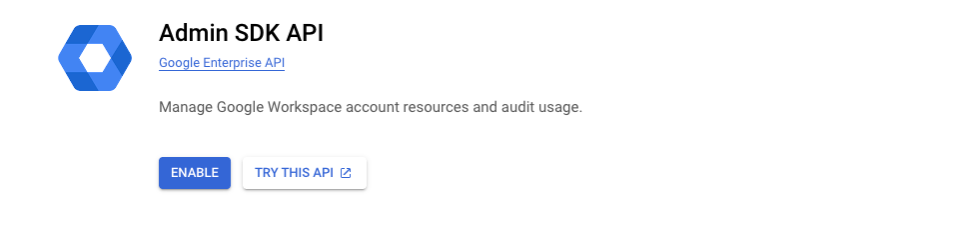

  6. Click on Admin SDK API and click Enable.

  7. Navigate to IAM & Admin > Service Accounts.
  8. Select the project you created in step two, and click Create service account.
  9. Click Done.
  10. Click on the service account you created and navigate to the Keys tab,
  11. Click Add key > Create new key.

  12. Choose the JSON key type and click Create.

    A JSON file containing the private key is downloaded.

  13. Copy and save the Private key so it can be added to the CMA.
  14. In the Google Admin console, navigate to Security > Access and Data Control > API control.
  15. Under Domain wide delegation, select Manage Domain Wide Delegation.
  16. Click Add new.
  17. Add the Client ID of the Service Account. You can find this in the Service Account page.
  18. Add these scopes:
    1. https://www.googleapis.com/auth/admin.directory.user.readonly
    2. https://www.googleapis.com/auth/admin.directory.group.readonly
    3. https://www.googleapis.com/auth/admin.reports.audit.readonly
  19. Click Authorize.

Step 2: Create the API Connector in the CMA

After you have set up an integration with the required application, add the details in the CMA.

To create the API connector in the CMA:

  1. From the navigation menu, click Resources > Integrations.
  2. Click the Configured Integrations tab.

  3. Click New.

    The New Integration panel opens.

  4. Select the SaaS Application you want to add.

    Note: Enter the Private Key in JSON format.

  5. In the Capability drop-down, select User Provisioning.

  6. Add the details created during step one.

    Note: The JSON and admin email address are the details necessary for the connector creation. The admin email field should include the email of a user with the Super Admin role.

  7. Click Save.
  8. The app is visible on the Integrated Apps table with a Connected status.

Deleting the Google Workspace Integration

If you delete the integration, synced users and groups are still visible in the CMA, and changes made in Google Workspace to users and groups are no longer synced.

To delete the Google Workspace integration:

  1. Navigate to the Integrations page.
  2. On the Configured Integrations tab, click the three dots on the Google Workspace User Provisioning row.
  3. Click Delete.

Understanding Events from Provisioning Users

The CMA generates events with every record update. You can identify these events by the:

  • Type: System
  • Sub-type: Integration

For more information, see Analyzing Events in Your Network.
