Cato Networks Knowledge Base

How To Collect Console Logs on macOS

  • Updated

Overview

The console logs are written to the system logger from the operating system (OS) and external applications.

In many cases the console logs are required to further investigate SDP Client issues and you should collected them before you open a ticket with Cato Networks. There is no need to interpret the logs, only collect, validate and send it to Cato Support.

Environment

macOS system with the built-in Console application (see Applications > Utilities).

Collecting the Console Logs

To collect the console logs on macOS:

  1. Open the Console application from your Launchpad or search bar.

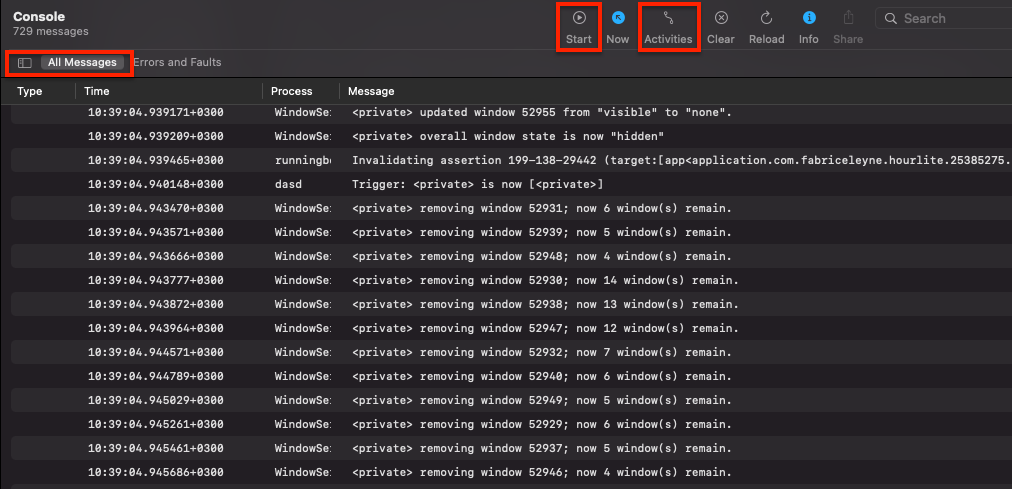

  2. Click the leftmost button in the toolbar to show the sidebar (make sure All Messages is selected in the tab bar).
  3. If the Activities button in the toolbar is enabled with a blue icon, click it to turn this off and then click the Start buttonimg1.png
  4. Now try to reproduce the issue that you were experiencing with the Cato Client.
  5. Select all the logs.
    1. From the Console application, click Pause
    2. Select the recent error messages from the main window, (or from the Menu Bar select Edit > Select All).img2.png
  6. Copy the logs, from the Menu Bar, select Edit > Copy.
  7. Open the TextEdit application and Paste the copied logs into a new plain text document.
  8. Save the text document in .txt format, and upload the file to Cato Support.img3.png
