Deploying an Azure vSocket Site Manually

This article explains how to use the Cato script to manually deploy a virtual Cato Socket (vSocket) for a site hosted in Microsoft Azure.

Overview

For sites that are hosted in Azure, you can deploy a vSocket on an Azure virtual machine (VM) and benefit from many of the same features as a physical Socket. This article explains how to use the Cato script to manually deploy a vSocket, as opposed to using the Azure marketplace. For example, when a site is located in China where the marketplace is unavailable.

You can choose to assign a vSocket VM to an Availability Set for resiliency purposes, for example with vSocket High Availability.

Additional Deployment Options for the Azure vSocket

Cato provides multiple options to deploy the vSocket for Azure sites for running the Cato script.

These are other Azure vSocket deployment options:

Copying the vSocket Image and Configuration Script

Cato provides a VHD image and a configuration script for the Azure vSocket. Use Azure PowerShell to copy the vSocket image from Cato to your Azure storage container, and download the script file from the Cato public repository.

For more about the Azure vSocket image and a configuration script, see Copying the Azure vSocket VHD Image with SAS.

General Prerequisites

You can run the vSocket configuration script directly from the Azure Cloud Shell or from the macOS and Linux Ubuntu operating systems. Windows BASH shells including the Windows Subsystem for Linux (WSL) are NOT supported to run the Azure vSocket script.

Note

Note: The Azure vSocket must have access to a public DNS server. Make sure that the VNet isn't configured to only use a private DNS server.

  • For High Availability (HA) configurations, the vSocket requires a static IP address for the MGMT interface.

  • (Optional) If access to the vSocket WebUI is required over the Internet:

    • Assign a public IP to the MGMT interface and create a security rule to allow TCP/443 inbound traffic.

    • Cato recommends only temporarily exposing the WebUI to the Internet for as long as needed, and in addition, restrict access by source IP (if possible).

  • Access to the Socket WebUI over the Internet (inbound Internet connections on TCP/443).

  • Make sure the environment meets the requirements listed in Cato Socket Connection Prerequisites.

  • The vSocket configuration script supports the D8ls_v5 VM instance type

OS Prerequisites for the Configuration Script

These are the prerequisites to run the script for both Linux and macOS operating systems:

  • BASH shell and typical binutils package.

  • Lightweight JSON processor jq (https://stedolan.github.io/jq/), for Ubuntu OS install the processor as apt update && apt install jq.

  • Azure CLI utility - for more about installing the Azure CLI, see the documentation for Microsoft Azure.

Known Limitations

These are known limitations with the Azure vSocket:

  • For Socket versions earlier than v14.0, the primary vSocket LAN IP is used for BGP peering. This does not survive failover to the secondary vSocket.

    • Starting with v14.0, in vSocket HA configurations, the Floating IP is used for BGP peering. Make sure to define the Floating IP in the neighboring BGP router.

  • Cato doesn't support accelerated networking on vSocket interfaces (including the MGMT interface). The vSocket may lose Internet connectivity if accelerated networking is enabled for an interface.

  • Using Azure Site Recovery for vSocket VM replication is not supported.

  • The default VM size for new deployments is Standard_D8ls_v5. If your environment does not currently support this VM, contact your Azure admin. For existing deployments, you can resize your VM. For more information, see Changing Azure vSockets to a Different VM Size.

High Level Overview of Creating the Azure vSocket

  1. In the Cato Management Application, create a new site for the Azure vSocket.

  2. In Azure, create the following virtual resources for the vSocket VM:

    • Virtual Network (VNet) for the vSocket

    • WAN, LAN and Management subnets

    • WAN, LAN and Management interfaces

    • Routing tables for each of the vSocket's subnets

    • WAN, LAN and Management network security groups

  3. Run the vSocket configuration script.

Creating the Azure vSocket Site

In the Cato Management Application, create a new vSocket Azure site. All the network segments that you create in the Cato Management Application must be included in the network range of the Azure virtual networks.

The Local IP for the vSocket must be the same as the IP address for the LAN network interface that you will create in Azure.

The first three IP addresses of the subnet are reserved by the VPC.

After you create the site, the Cato Management Application assigns a unique serial number (S/N) to it. We recommend that you copy and paste the serial number in a text file.

You need to enter this serial number when you run the vSocket configuration script.

To create the site for the Azure vSocket:

  1. From the Cato Management Application's navigation menu, click Network > Sites.

  2. Click New. The Add Site panel opens.

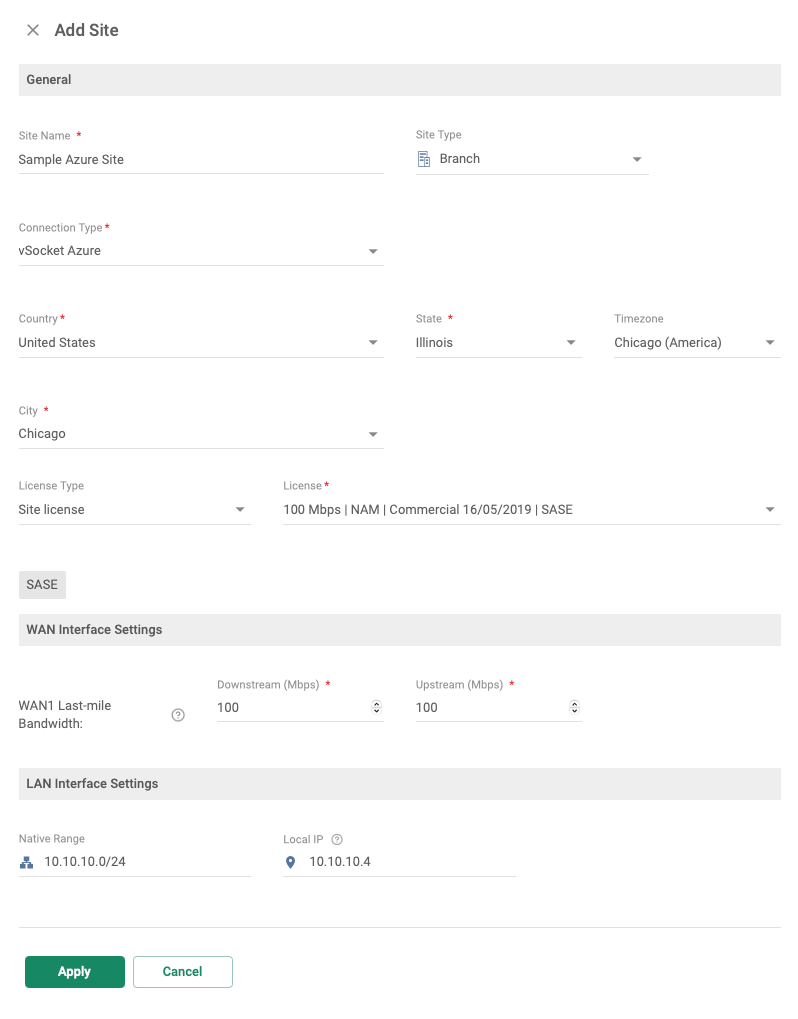

  3. Configure the General settings for the site:

    1. Enter the Site Name.

    2. Select the Site Type. This option determines which icon is used for the site in the Topology window.

    3. Select vSocket Azure for the Connection Type.

    4. Configure the Country, State, and Time Zone to set the time frame for the Maintenance Window.

  4. Configure the WAN Interface Settings, including the Downstream and Upstream bandwidth according to your ISP bandwidth.

  5. Configure the LAN Interface Settings, including the Native Range for the Azure site.

    This setting must be the same as the LAN subnet IP range in Azure.

  6. Click Apply. The site is added to the Sites list.

  7. Copy and save the vSocket serial number for the vSocket configuration script:

    1. From the Network > Sites page, select the new vSocket site.

    2. From the navigation menu, click Site Configuration > Socket. Copy the serial number (S/N) and save it.

Creating the Azure Virtual Resources

This section explains how to create the virtual resources in Azure for the vSocket. Depending on your deployment, you may be able to use some existing Azure virtual resources instead of creating new ones.

Make sure that you have the correct permissions to create virtual resources in Azure.

Creating the Virtual Network

Create the virtual network address space in Azure for the vSocket. The address space contains the subnets for the Azure vSocket. When you create the virtual network, you also create the subnets used for the Management, LAN, and WAN links.

To create the virtual network:

  1. From the Microsoft Azure homepage, create a new virtual network: click Virtual networks > Create.

  2. In the Create virtual network window, configure the settings for the virtual network:

    1. In the Basics tab select the Subscription, Resource Group, Virtual Network name and Region.

      Note: Make sure that the virtual network and the rest of the vSocket resources are deployed in the same region.

    2. In the IP addresses tab configure the following settings:

      1. Create the Address space for the Virtual Network.

      2. Within the address space click Add a subnet and create each of these subnets for the vSocket: LAN, WAN and Management.

        Notes:

        • IPv6 address spaces are NOT supported

        • The LAN subnet must correlate with the Native Range that you configured for this site in the Cato management Application

        • The address range for each of the subnets must be within the address space of the virtual network.

  3. Click Review + create. The Virtual Network is deployed to the Azure account.

Configuring the LAN Resources

These are the required LAN resources for the vSocket: subnet, network interface and routing table. The LAN subnet refers to LAN traffic that is sent to the internal Azure resources. The network interface is configured to use the LAN subnet. This section explains how to create a network interface and attach it to the LAN subnet.

Note

Note: For Azure HA configurations, during failover there is an API call that automatically adds the Floating IP to the LAN interface of the standby vSocket and deletes settings configured on the LAN interface (including the LAN NSG).

Don't manually configure the Floating IP on the LAN interface of a vSocket. The Cato HA script assigns the Floating IP to the primary vSocket LAN interface and then reboots the vSockets.

Creating the LAN Interface

Use the Azure wizard to define the settings for the network interface that will be used as the LAN interface for the vSocket.

  1. From the Microsoft Azure homepage, go to Network Interfaces.

  2. Click Create.

    The Create network interface page opens.

  3. Configure the settings for the network interface:

    1. Subscription - Subscription ID of your Azure account.

    2. Resource Group - Select the resource group for the network interface.

    3. Name - Give the interface a meaningful name.

    4. Region - Select the same region as the rest of the vSocket resources.

    5. Virtual network - Select the virtual network that you configured for the vSocket (in the previous section).

    6. Subnet - Select the LAN subnet.

    7. IP Version - Select IPv4.

    8. Private IP address assignment - Select Static and enter the private IP address for the network interface. This IP address is the same as the Local IP configured for the Native Range in the Cato Management Application.

  4. Click Review + create. The network interface is deployed to the Azure account.

  5. Enable IP forwarding for the interface:

    1. From the Microsoft Azure homepage, go to Network Interfaces.

    2. Select the LAN network interface.

    3. From the Settings section, click IP configurations.

    4. Select Enable IP forwarding.

    5. Click Save. The network interface is configured for IP forwarding.


Configuring the LAN Route Table

Create and configure the route table for the Azure site and vSocket. You need the following settings to configure the LAN route table:

  • If ALL TRAFFIC from your Azure account is routed through the vSocket, then you can use 0.0.0.0/0 for the LAN subnet.

  • However, if only some of the traffic is routed through the vSocket, then configure the LAN subnet for the IP range of the relevant traffic.

  • In case you are using Windows KMS and the default route (0.0.0.0/0) is within the route table, make sure to add an exception for 23.102.135.246/32. Read more here on Microsoft's documentation center.

After you configure the LAN route, then you assign the LAN subnet to the route table.

To configure the LAN route table settings:

  1. Create the LAN route table:

    1. From the search bar, search for route tables.

    2. From the Route tables page, click Create.

    3. From the Create route table pane, enter the Name and configure the other settings.

    4. Click Create. The route table is deployed to the Azure account.

  2. Configure the LAN routes for the vSocket:

    1. From the Route tables page, click the new route table.

    2. In the left-hand pane, from the Settings section, click Routes.

    3. Create a route for the LAN traffic:

      1. Click Add.

      2. From the Add route pane, enter the Route name.

      3. In Destination type, enter the LAN IP address range for the LAN.

      4. In Next hop type, select Virtual appliance.

      5. In Next hop address, enter the private IP address for the vSocket VM.

      6. Click Add. The LAN to Internet route is added to the route table.

  3. To associate the LAN subnet to the route table:

    1. In the left-hand pane of the Route table page, from the Settings section, click Subnets.

    2. Click Associate.

    3. From the Associate subnet pane, in the Virtual network drop-down menu select the virtual network.

    4. From the Subnet drop-down menu, select the LAN subnet.

    5. Click OK. The LAN subnet is added to the route table.

Configuring the WAN Resources

These are the required resources for the WAN subnet of the vSocket: subnet, network interface and routing table.

This is the virtual interface in Azure for the WAN traffic that is sent to the Cato Cloud. The interface is configured to use the WAN subnet. After you create the interface, you need to enable it to support IP forwarding

Creating the WAN Interface

Use the Azure wizard to define the settings for the network interface that will be used as the WAN interface for the vSocket.

  1. From the Microsoft Azure homepage, go to Network Interfaces.

  2. Click Create.

    The Create network interface page opens.

  3. Configure the settings for the network interface:

    1. Subscription - Subscription ID of your Azure account.

    2. Resource Group - Select the resource group for the network interface.

    3. Name - Give the interface a meaningful name.

    4. Region - Select the same region as the rest of the vSocket resources.

    5. Subnet - Select the WAN subnet.

    6. IP Version - Select IPv4.

    7. Private IP address assignment - Select Static and assign a private IP address for the WAN network interface.

  4. Click Review + create. The WAN interface is deployed to the Azure account

  5. Enable IP forwarding for the WAN interface:

    1. From the Microsoft Azure homepage, go to Network Interfaces.

    2. Select the WAN network interface

    3. From the Settings section, click IP configurations.

    4. Select Enable IP forwarding.

    5. Click Save. The network interface is configured for IP forwarding.

  6. Add a public IP address to the WAN interface:

    1. From the Settings section of the network interface, click IP configurations

    2. Select the IP address. The Edit IP Configuration pane opens.

    3. Select Associate public IP address and click Save.

Configuring the WAN Route Table

The WAN network interface connects the WAN subnet to Cato over the internet. The following route table is used for BOTH the WAN interface and the Management interface, since both require the same outbound routing policy.

After you configure and associate the WAN route table with the WAN network interface, you will associate the management network interface with the WAN route table as well.

To configure the WAN route table:

  1. Create the WAN route table:

    1. From the search bar, search for route tables.

    2. From the Route tables page, click Create.

    3. From the Create route table pane, configure the settings.

    4. Click Create. The route table is deployed to the Azure account.

  2. Configure the WAN route table:

    1. From the Route tables page, click the new route table.

    2. In the left-hand pane, from the Settings section, click Routes.

    3. Create a route for outbound traffic:

      1. Click Add.

      2. From the Add route pane, enter the Route name.

      3. In Destination type, enter 0.0.0.0/0.

      4. In Next hop type, select Internet.

      5. Click Add

  3. Associate the WAN subnet to the route table:

    1. In the left-hand pane of the Route table page, from the Settings section, click Subnets.

    2. Click Associate.

    3. From the Associate subnet pane, in the Virtual network drop-down menu select the virtual network.

    4. From the Subnet drop-down menu, select the WAN subnet.

    5. Click OK. The WAN subnet is added to the route table.

Configuring the Management Resources

The Management Interface is the virtual interface in Azure for the management communication between the vSocket and the Azure API. This interface is also used to access the vSocket WebUI.

  • Inbound access to the management interface is a potential security risk, make sure to configure the Azure network security group to restrict access to this interface only to necessary admins.

  • A single vSocket does not require inbound or outbound traffic for the management interface - Outbound Internet traffic is only required for Azure HA configurations.

  • Inbound internet connections on TCP/443 must be allowed to access the vSocket WebUI using the public management IP (if assigned)

Creating the Management Interface

Use the Azure wizard to define the settings for the network interface that will be used as the Management interface for the vSocket.

  1. From the Microsoft Azure homepage, go to Network Interfaces.

  2. Click Create. The Create network interface page opens.

  3. Configure the settings for the MGMT network interface:

    1. Subscription - Subscription ID of your Azure account.

    2. Resource Group - Select the resource group for the network interface.

    3. Name - Give the interface a meaningful name.

    4. Region - Select the same region as the rest of the vSocket resources.

    5. Virtual network - Make sure the virtual network is the one you previously configured for the vSocket.

    6. Subnet - Select the Management subnet.

    7. IP Version - Select IPv4.

    8. Private IP address assignment - Select Static and assign a private IP address for the Management network interface. This IP can be used locally to access the vSocket WebUI.

  4. Click Review + create. The MGMT network interface is deployed to the Azure account.

  5. Enable IP forwarding for the interface:

    1. From the Microsoft Azure homepage, go to Network Interfaces.

    2. Select the Management network interface.

    3. From the Settings section, click IP configurations.

    4. Select Enable IP forwarding.

    5. Click Save. The network interface is configured for IP forwarding.

  6. (Optional) Assign a public IP address to the Management interface if access to the vSocket WebUI is required over the Internet. (you can also access the WebUI via the private IP of the network interface)

    1. From the Microsoft Azure homepage, go to Network Interfaces.

    2. Select the Management network interface.

    3. From the Settings section, click IP configuration.

    4. Select the IP address. The Edit IP Configuration pane opens.

    5. Select Associate public IP address and click Save.

Associating the Management Subnet to the Route Table

Use the same routing table previously created for the WAN interface for the Management interface. Both network interfaces require the same routing policy for outbound connections to the internet.

Associate the Management subnet to the route table:

  1. In the left-hand pane of the Route table page, from the Settings section, click Subnets.

  2. Click Associate.

  3. From the Associate subnet pane, in the Virtual network drop-down menu select the virtual network.

  4. From the Subnet drop-down menu, select the Management subnet.

  5. Click Ok. The route table is now associated with the Management subnet.

Creating a Network Security Group

Create a network security group that defines which traffic is allowed. After you create the vSocket VM, you can apply this security group to help manage inbound traffic for the network interfaces.

Note

Note: You can use an existing security group instead of creating a new one for the vSocket. Skip this section if you are using an existing security group.

To create the network security group:

  1. From the Microsoft Azure homepage, go to Network Security Groups.

  2. From the Network security group page, click Create.


    The Create network security group page opens and shows the Basics tab.

    1. Select the Resource group.

    2. Enter the Name for the network security group.

    3. Select the Region for the security group.

  3. Click Review + create. The network security group is now ready to be used.

Configuring the WAN and LAN Security Rules

Configure the inbound security rules for the network security group to define the traffic that is allowed to connect to the vSocket. We recommend that you configure the WAN network security group to deny all inbound traffic and allow all outbound traffic. Use the Cato firewall to control the inbound LAN traffic, so you can allow all traffic in both directions for the LAN network security group.


To configure the inbound and outbound security rules:

  1. From the Microsoft Azure homepage, go to Network Security Groups.

  2. Select the Network security group you created in the previous section.

  3. From the Settings section, click Inbound security rules.

  4. Click Add to open the Add inbound security rule pane and configure the inbound WAN rule.

  5. From the Settings section, click Outbound security rules.

  6. Click Add to open the Add outbound security rule pane and configure the outbound WAN rule.

  7. Repeat the previous steps for the LAN network security group.

  8. To assign the network security group, go to the Virtual Network resource you previously created:

    1. From the Settings section, click Subnets and select the subnet you are assigning the network security group to.

    2. Select the network security group from the dropdown menu.

    3. Click Save.

The following table shows sample inbound security rules.

Name

Source > IP Addresses

Source port

ranges

Destination

Dest port ranges

Protocol

Action

Priority

WAN_inbound

0.0.0.0/0

* (any)

Any

0-65535

* (any)

Deny

100

WAN_outbound

0.0.0.0/0

* (any)

Any

0-65535

* (any)

Allow

100

LAN_inbound

0.0.0.0/0

* (any)

Any

0-65535

* (any)

Allow

100

LAN_outbound

0.0.0.0/0

* (any)

Any

0-65535

* (any)

Allow

100

Running the Azure Configuration Script

The Cato Networks configuration script helps you to create the Azure vSocket. The script automatically creates the VM for the vSocket, and then asks you for the necessary settings to configure it for your account.

You can also create a custom executable file with the settings for the vSocket, and run the script in non-interactive mode.

Note

Notes:

  • The default password for the vSocket WebUI is the VM ID for the vSocket VM. The VM ID is shown at the end of the vSocket script. We recommend you save the VM ID in a text file after the deployment is complete.

  • Make sure that all the virtual resources are in the same region before your run the configuration script.

Make sure that the vSocket image is uploaded to the Azure container, and that you have the configuration script. For more information, see Copying the Azure vSocket VHD Image with SAS.

Assigning the vSocket VMs to an Availability Set (Optional)

The Cato vSocket script (create_vm_from_vhd.sh) lets you assign the vSockets to an Availability Set. This option is mostly used in a vSocket HA configuration when you want to make sure that the both vSockets are assigned to different Fault and Update domains. You must create the Availability Set BEFORE you run the Cato vSocket script.

You can't assign an Availability Set to VMs that are using different Availability Zones.

Note

Note: Azure doesn't allow you to assign a VM to an Availability Set after you create it.

Create a new Availability Set and configure the settings as follows:

  • Assign it to the same resource group as the VM.

  • Set the Fault domains and Update domains to 2.

The following screenshot shows an example of a vSocket Availability Set:

Availability Set Configuration.png

Azure Information for the Script

The vSocket configuration script asks for the following information to configure the vSocket settings correctly:

  • Azure account subscription and login details

    • Make sure that you only enter the resource IDs. Entering the resource names can cause the script to fail.

  • Resource group

  • Storage account

  • Storage container

  • Storage blob

  • Storage type

  • Availability Set or Availability Zone

  • Interface names on the VM

  • Enter a name for the vSocket VM

  • S/N for the vSocket from the Cato Management Application

  • Azure VM instance type

Running the Script

Run the configuration script in interactive mode to create and configure the Azure vSocket. As part of the script, you configure the name for the vSocket VM. You can't change this name at a later time.

Part of the script is choosing a SSD for the vSocket VM. In general, you can use the standard SSD for the VM.

For more information about the vSocket script, run ./create_vm_from_vhd.sh --help.

Running the Script from the Azure Cloud Shell

You can use the Azure Cloud Shell in the Azure environment to run the Cato vSocket script.

To use the Azure Cloud Shell to run the vSocket configuration script:

  1. From the top of the Microsoft Azure window, click Cloud Shell CloudSHell.png.

  2. The Welcome to Cloud Shell panel opens in the bottom of the window, click Bash.

  3. Go to the home directory in Azure and upload the script file manually or via CLI:

    1. Manually - Click Upload and select the script file you previously downloaded above in Copying the vSocket Image and Configuration Script.

    2. CLI - download the file using the wget command - wget https://catonetworks.hosted-by-files.com/CatoNetworks-Support/Public/Azure%20vSocket/create_vm_from_vhd.sh .

  4. Give executable permissions to the script, run chmod u+x create_vm_from_vhd.sh.

  5. Run the Cato vSocket script, ./create_vm_from_vhd.sh --login.

  6. You will be prompted to authenticate with a dedicated code.

  7. Once authenticated, the interactive mode is executed and you will be prompted to enter the vSocket settings.

    The script creates and deploys the vSocket VM.


Running the Script from macOS or Linux:

Note

Note: Before you run the script, make sure you are in the same directory as the script file.

To run the vSocket configuration script from macOS or Linux:

  1. Give executable permissions to the script, run chmod u+x create_vm_from_vhd.sh.

  2. Start the script and from the CLI run ./create_vm_from_vhd.sh --login.

  3. Select interactive mode and enter the vSocket settings.

    The script creates and deploys the vSocket VM.

Running the Script in Non-Interactive Mode

You can create a custom executable file that runs the vSocket script and automatically passes the environment variables. This means that you enter all the vSocket data for the script in the custom file and then the Cato script configures the vSocket in non-interactive mode.

The following sections describe the custom executable file and show a sample file.

Note

Notes:

  • Before you run the custom file, make sure you are in the same directory as the script file.

  • Make sure jq is installed on your operating system.

To run the vSocket script in non-interactive mode:

  1. Create a new executable file that contains the environment variables for the Cato vSocket script.

  2. Give executable permissions to the file. For example, run chmod a+x <file_name>.sh.

  3. Run the file. The file passes the environment variables to the Cato script and creates the vSocket.

Explaining the vSocket Environment Variables

This section explains the environment variables that you configure in the custom executable file to create a vSocket in non-interactive mode. At the end of the list of variables is the command to run the Cato script.

AZ_VS_SUBSCRIPTION - Azure subscription name or ID

AZ_VS_RESOURCE_GROUP - Resource group name

AZ_VS_STORAGE_ACOUNT - Storage account name

AZ_VS_STORAGE_CONTAINER - Storage container name

AZ_VS_STORAGE_BLOB - VHD disk image blob name (inside of storage container)

AZ_VS_STORAGE_SKU - storage disk type SKU - Standard_LRS

AZ_VS_LAN_NIC - Name of management virtual NIC

AZ_VS_WAN_NIC - Name of WAN virtual NIC

AZ_VS_MNG_NIC - Name of LAN virtual NIC

AZ_VS_SERIAL_ID - Serial ID number of Cato vSocket for Azure site

AZ_VS_VM_NAME - Unique name for Azure vSocket VM

AZ_VS_VM_SIZE - Specifications for for Azure vSocket VM - Standard_D8Is_v5

./create_vm_from_vhd.sh - Runs the Cato script to create the vSocket VM.

Sample Custom File with Environment Variables

This section shows a sample file with the environment variables to create a vSocket in non-interactive mode.

export AZ_VS_SUBSCRIPTION=38a5bc1d-e3f6-4g50-h34i-kj01k23456789

export AZ_VS_RESOURCE_GROUP=CatoNetworks-Resource_Group

export AZ_VS_STORAGE_ACOUNT=catonetowksstorageinwe

export AZ_VS_STORAGE_CONTAINER=vhds

export AZ_VS_STORAGE_BLOB=vsocket-7.0-rel.vhd

export AZ_VS_STORAGE_SKU=Standard_LRS

export AZ_VS_LAN_NIC=vm-custom-data-mark-1VMNic

export AZ_VS_WAN_NIC=vm-custom-data-mark-2VMNic

export AZ_VS_MNG_NIC=vm-custom-data-mark-3VMNic

export AZ_VS_SERIAL_ID=ZZ-11-77-99-55-66

export AZ_VS_VM_NAME=vsocket-vm

export AZ_VS_VM_SIZE=Standard_D8Is_v5

./create_vm_from_vhd.sh

Connecting to the Azure vSocket WebUI

After the vSocket is deployed, we recommend that you connect to the vSocket WebUI and change the password for the VM. The default password for the vSocket is the VM ID for the vSocket VM. The VM ID is shown at the end of the vSocket script.

To connect to the vSocket WebUI and change the default password:

  1. Open a Web browser and connect to the vSocket, enter https://<vSocket management interface ip> .

    1. If connected behind Cato (site or SDP User) you can use the private IP of the management interface.

    2. If connected over the internet you can use the public IP of the management interface.

  2. Log in to the WebUI with these credentials:

    • Username: admin

    • Password: VM ID

  3. Change the password as prompted.

Was this article helpful?

8 out of 9 found this helpful

18 comments

  • Comment author
    Casey Moore (Admin)

    I thinks this documentation is missing some information, where do I get the vsocket image and configuration script?





    Thanks

  • Comment author
    Yaakov Simon

    Casey,

    Thanks so much for the comment - so embarrassing! I added the correct link to the article.

    Yaakov

  • Comment author
    Yaakov Simon

    Due to Azure stability issues regarding the accelerated VM instances, we temporarily only support the D2s V4 instance for new vSockets. The configuration script only offers this instance for new vSockets.

    No action is required for existing Azure vSocket deployments.

  • Comment author
    Eivind Nesje

    It would be good to quickly find info on whether IPSEC or vSocket is the preferred way of deploying CATO to Azure

  • Comment author
    Yaakov Simon

    Eivind,

    In general, the best practices and preferred method to deploy sites is to use the vSocket.

    We are working on a new article that summarizes IPsec vs. Cato Sockets and vSockets.

    Thanks!

  • Comment author
    Oscar Cuevas
    • Edited

    Hello,

    The instance type D2s V4 is not available in uswest2 region. Anything else we can use?

  • Comment author
    Daniel Virkler

    Oscar Cuevas, I've just tested this feature in my Azure lab and was able to select and utilize the D2s_V4 size in the Azure US-West-2 region.

    To complete this activity, you must click "See all sizes" then navigate to "D-Series v4" to see the required VM Size of "D2s_V4". Click on the "D2s_V4" size and then click "Select".

    After completing that procedure, you will have successfully selected the D2s_V4 size for deployment.

    CC: Dermot-Community-Manager


  • Comment author
    Bert-Jan Kamp

    The document is not entirely clear that you need to add 2 security groups, one for the LAN side and one for the WAN side. Can you please update the document to reflect that you require 2 security Groups. It is also advised that the table with example security rules should reflect this in the example table as inbound rules and outbound rules are separate per security group. This will make things more clear especially for users that are less common with Azure

  • Comment author
    Chris Minder

    Is this a left-over words there? In Azure HA KBA it mentioned WAN, LAN, MGT subnets and interface but not here?

  • Comment author
    Dermot - Community Manager Only 42 of these badges will be awarded.  They are reserved for people who have played a key role in helping build the Cato Community through their contributions! Community Pioneer The chief of community conversations. Community manager

    Thanks for your feedback, Chris!

    The documentation team are currently reviewing this and will be update the KB soon.

    Kind Regards,

    Dermot Doran (Cato Networks Community Manager).

  • Comment author
    Grayson Denny

    I see that there is a Marketplace image for deploying the Azure vSocket. However, I am getting this error: OfferId: 'cato_test_socket' cannot be purchased due to validation errors.

    Is this method the only option at the moment by using a storage account and basically bootstrapping it yourself? I am planning on deploying this using Terraform so I would like to use the marketplace image if at all possible.

  • Comment author
    Yaakov Simon

    Grayson Denny thanks for the comment. We are still working on the Cato vSocket image for the Azure Marketplace, and it's not ready for customers. We will update customers when the image is publicly available.

    I added a note to the article stating:

    • The Cato vSocket image in the Azure Marketplace is currently only available for internal Cato development and testing.
  • Comment author
    Ben ktiaad

    Hi
    just wondering if the Cato vSocket is still only for internal Cato development and testing.

    thanks
    Kenneth

  • Comment author
    Aviv Abelson

    Hey Kenneth,

    The Azure in the vSocket in the marketplace is currently still in a limited EA stage,
    It should move to general EA this year

  • Comment author
    JM

    This article should be updated with the two additional KMS IP addresses as per the Microsoft knowledgebase

  • Comment author
    Jon Derrenbacker
    • Edited

    Yaakov Simon, It looks like above in the comments, around a year ago, it was mentioned that accerated networking isn't supported, but current deployments don't need to redeploy. Any updates on this? Is  accerated networking supported now or on a timeline to be supported? If not, should legacy Azure sockets be recreated w/o accerated networking?

  • Comment author
    Yaron Libman

    Hi Jon -

    There is no need to redeploy your existing deployments. In Socket v19 we fixed a bug that affected accelerated networking instances, and in the near future we will allow new deployments using accelerated networking instances.

    Thanks,

    Yaron

  • Comment author
    Adrian Horja
    • Edited

    It might be worth splitting the table that contains the security rules in two tables, one for WAN and one for LAN Network Security Groups. Seeing them together made me think they could be included in one NSG which it would not work as expected.

Add your comment
