Authenticating Admins

This article describes the different authentication methods you can define for admins to log in to the Cato Management Application (CMA). To learn more about admins, see What are Admins and Role-Based Access Control (RBAC).

Overview

To best fit the requirements of your organization, you can define the authentication methods for the CMA using the following methods:

SSO - Authenticate with the Single-Sign On (SSO) provider that is configured for the account in Access > Single-Sign On
Cato credentials - Log in with the username (admin email) and password that you configure in the CMA
MFA - When using Cato credentials, you can also require Admins to use Multi-Factor Authentication (MFA) with an authentication app. This option is enabled by default for new admins, and is always enabled for admins in accounts created after December 10th, 2023.

We recommend that you use MFA or SSO authentication for CMA admin accounts to provide secure access and prevent account takeover and possible compromise.

Configuring the CMA Authentication Methods

You define which method or methods Cato Management Application admins can use to log in. These settings apply to all admins in the account.

The following tools are supported for SSO with CMA admins:

Make sure that the email for each CMA admin is the same as the email address for their corresponding user in the SSO provider.

To configure the authentication methods for CMA admins:

To allow admins to authenticate with SSO:
1. Follow the procedure for your SSO provider (links above).
2. From the navigation menu, click Access > Single Sign-On.
3. In the Cato Management Application Admins section, select Allow login with Single Sign-On.
4. Click Save.
To allow admins to authenticate with a username and password:
1. From the navigation menu, select Account > Login Restrictions.
2. In the Login Authentication Method for Cato Management Application section, select Allow login with Cato user credentials.
3. Click Save.

Using Multi-Factor Authentication (MFA) for Adminis

To provide additional security, you can configure admins to use Multi-Factor Authentication (MFA) when they log in to the CMA. MFA uses an authentication app (such as Google Authenticator) to generate secure One-Time-Passwords (OTP) that the admin enters as part of the login process. Otherwise, the admin can't authenticate and log in to the CMA.

Note

Notes:

MFA is only supported for Cato user credentials. When admins log in with SSO, you can't require them to enter an MFA code.
For accounts created after December 10th 2023, MFA is always enabled for admins that use Cato User Credentials authentication.

Disabling Multi-Factor Authentication for an Administrator

For accounts that support disabling MFA, After you create an admin, MFA is enabled by default for that admin. If MFA is enabled, the first time that the admin logs in to the CMA, he is redirected to a web page with a QR code. The admin uses the authentication app to scan the QR code and the CMA MFA is added to the authentication app.

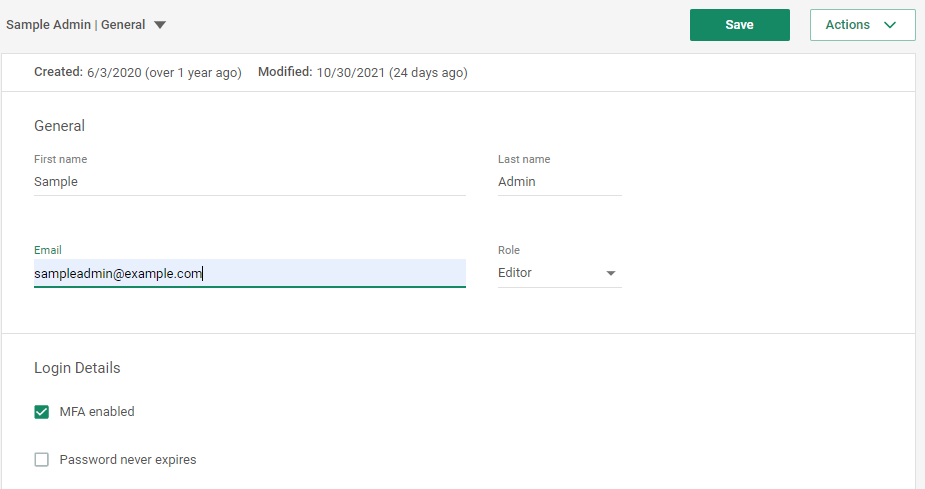

To enable MFA for an admin:

From the navigation menu, click Account > Administrators.
Select the admin.
In the Login Details section, select MFA enabled.
Click Save.

Resetting Multi-Factor Authentication

You can reset the MFA permissions for an admin. After you reset the MFA permissions, the admin can no longer use the current authenticator app to log in to the CMA. The next time that the admin logs in to the CMA, he is redirected to a web page with a QR code. The admin uses the authentication app to scan the QR code and the CMA MFA is added to the authentication app.

To reset the MFA permissions for an admin:

From the navigation menu, click Account > Administrators.
Select one or more administrators.
From the Actions drop-down menu, select Reset MFA.
In the confirmation window, click OK. An email notification is sent to the admin.

Managing Admin Passwords

By default, admins are required to change their passwords for the CMA every 90 days and they receive email notifications 14 days and 3 days before the password expiration date. When you enable the Password never expires option for an admin, that admin is never required to change his password.

Setting the Administrator Password Expiration

Use the Password Expiration setting in the Login Restrictions screen to define how long the CMA password is valid for, before the admin is required to change it. The password can be valid for 14 to 730 days.

This setting doesn't apply when the Password never expires option is enabled for an admin.

To set the password expiration for an admin:

From the navigation menu, select Account > Login Restrictions.
In the Password Expiration section, enter how many days the password is valid for.
Click Save.

Resetting the Administrator Password

If an administrator is locked out of the account, use the Reset Passwords option to let them log in again.

To reset an administrator's password:

From the navigation menu, click Account > Administrators.
Select one or more administrators.
Click Actions and then from the drop-down menu, select Reset Password.
In the confirmation window, click OK.

The administrator receives an email with a link to change the password.
In the email, the admin can click the here link to go to the Change Password window.

If the admin receives this email, but did not initiate the request, click the It wasn't me link.

Setting Login Restrictions for Admins

You can require all administrators to only log from specific IP addresses.

For accounts that use egress IP addresses (NATed IPs), you can allow admins to log in from these IP addresses.

For more information about login settings for admins, see Authenticating Admins.

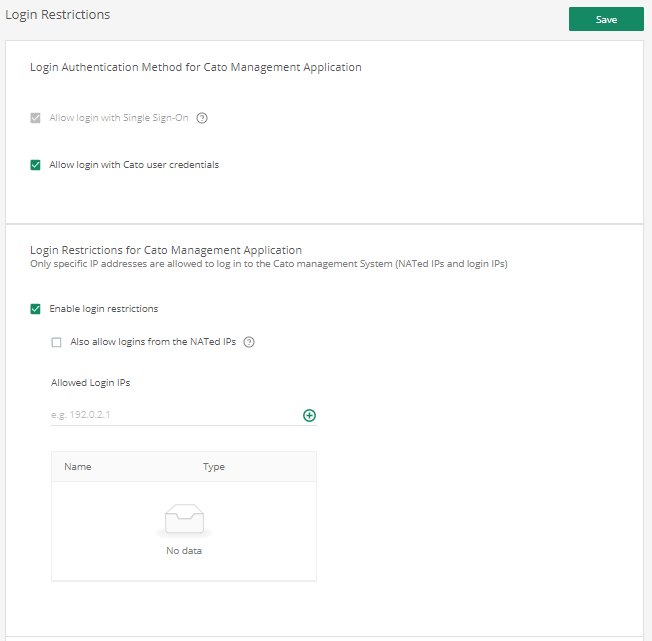

To configure admin login restrictions:

From the navigation menu, select Account > Login Restrictions.
To only allow admins to log in to the CMA from specific IP addresses:
1. In the Login Restrictions for Cato Management Application section, in Allowed Login IPs, enter the IP address to allow.
2. Click the add icon.

  The IP address is added to the Allowed Login IPs list.
3. To remove an allowed IP address, select the IP address and then click the delete icon.
(Optional) To allow admins to log in from a translated IP, select Also allow logins from the NATed IPs.
Click Save.

Understanding Secure Login with CAPTCHA

To enhance account security, the admin authentication flow for the CMA includes CAPTCHA protection. The CAPTCHA protection is invisible to the admin and runs in the background to prevent unauthorized access by bots. This ensures a safer experience without disrupting the regular login process. In rare cases, admins may be prompted to re-enter their credentials to prove they are human and complete the login. CAPTCHA protection is not relevant for SSO-authenticated admins.
