Adding Device Conditions to Firewall Rules

This article discusses how to add conditions for devices to the WAN and Internet firewall rulebases for enhanced security and protection.

Overview of Firewall Device Conditions

The Device setting for the WAN and Internet firewall rules gives you the ability to expand the scope of your firewall security policy to include conditional access based on the actual device of the end-user. You can specify the requirements for devices to be allowed to access the network. For example:

  • WAN firewall - Specify the source of the rule to only apply to devices that meet the pre-defined posture or based on geo-location

  • Internet firewall - Define rules for a SaaS application that limits access based on the device settings and location

By default the Device settings do not impact traffic because they are set to are Any Any and automatically match all traffic.

For more information about the Cato WAN and Internet firewall, see the Knowledge Base articles in WAN & Internet Firewalls.

Prerequisites

  • Device Posture profiles are supported for the following Cato Clients:

    • Windows Client v5.2 and higher

  • Before you can add a Device Profile to the Device settings for a rule:

    • You must create and configure the Device Profile

  • Known limitation - Rules that use Device Profiles are only applied when the user is connected with the Cato Client (even if they are located behind a Socket)

Configuring the Device Settings

These are the Device settings conditions that you can add to a firewall rule:

  • Platforms - Device Operating System (OS)

  • Countries - Source country for the connection based on the physical location of the device (according to the IP address geo-location)

  • Profiles - Device Profiles (configured in Access > Device Posture)

When you configure multiple conditions for a rule, they have an AND relationship, the rule is matched only if traffic matches the criteria defined in all of the items.

Within a condition (a single cell), the items have an OR relationship. For example, a rule that has the Platforms condition of Windows, and macOS, matches all Windows or macOS devices.

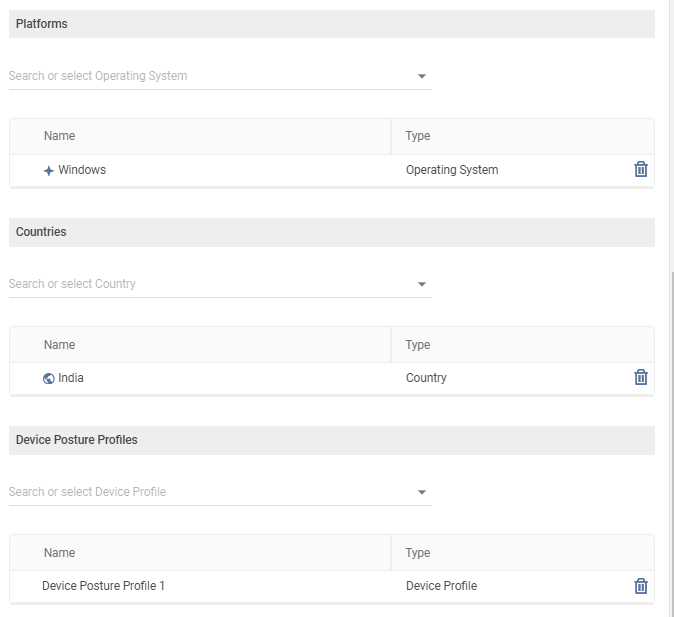

This is an example a rule where the traffic must meet all of these Device conditions: Windows devices, located in India, that meet the requirements of the Test Profile.


Adding Platform Requirements

The Platforms condition for a firewall rule lets you define the device OS that match the rule. For example, for a specific network segment, only allow access to Windows, macOS, or Linux devices.

Adding Country Requirements

The Countries condition lets you define the source of the traffic that matches the rule based on the IP geo-location of the device. For example, restrict access to a site for a branch office, so that only devices that are located in the same country as the office are allowed to connect.

Adding Device Profile Requirements

The Profiles condition lets you restrict the rule to only match devices that meet the requirements of the Device Profile. This condition is based on the Device Posture feature, which checks if the device meets the posture requirements. For example, only devices that have the newest Anti-Malware software version meet the posture requirements.

Note

Note: For devices that are connected using Office Mode (or tunnel in tunnel), the firewall does not apply Device Posture profiles to the devices. This means that for a block rule, devices using Office Mode can connect to the network, even if they do not meet the requirements of the Device Posture profile.

The Device Profiles are currently not supported on all Client versions, for more information see Creating Device Posture Profiles and Device Checks

Working with Unsupported Cato Clients

The firewall can only determine if a Client matches the Device Check for supported Clients. For each Device Check, you can define the behavior for unsupported Clients that match the other requirements firewall rule (Source, App/Category, and so on):

  • Skip the Device Check, and apply the firewall action to the unsupported Clients

  • Apply the Device Check, and the Client doesn't match the firewall rule and the action isn't applied

The following table explains the behavior for unsupported Clients when the connection matches all the other settings of the firewall rule. The behavior depends on whether the Skip this check for unsupported SDP Client version option is enabled or cleared (disabled) in the Device Check.

Unsupported Clients

Firewall Rule Action

Client Behavior

Skip check (Enabled)

Block

Unsupported Clients automatically skip the Device Check and are blocked (they can't connect)

Allow

Unsupported Clients automatically skip the Device Check and are allowed (they can connect)

Apply Check (Disabled)

Block

Unsupported Clients fail to match the Device Check, the firewall skips this rule (doesn't apply the block action to the connection)

Allow

Unsupported Clients fail to match the Device Check, the firewall skips this rule (doesn't apply the allow action to the connection)

Configuring the Device Conditions in a Rule

You can configure the device settings in a new or existing firewall rule.

To configure the Device conditions for a firewall rule:

  1. From the Security section in the navigation pane, select Internet Firewall or WAN Firewall.

  2. Click New to create a new rule, or click the Edit icon edit.png in the Device column for an existing rule.

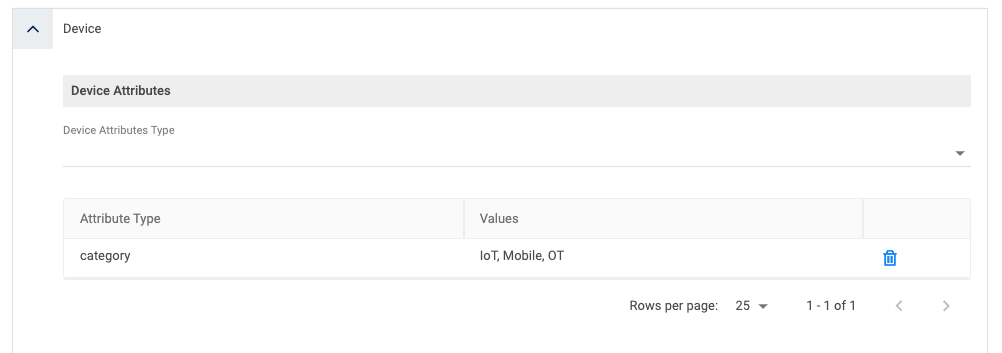

  3. In the Device section, configure the Platforms, Countries, and Profiles that are required to match this rule.

  4. Click Apply, and then click Save.

    The Device conditions are configured for the rule.

Sample Firewall Rules with Device Conditions

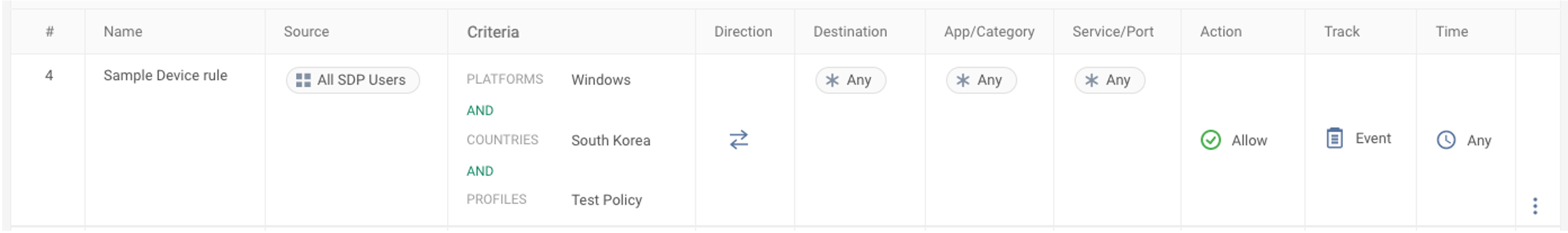

This an example of a WAN firewall rule that allows traffic in both directions for all SDP users that match the all of the following Device conditions: using a Windows OS device, physically located in South Korea, and matches the requirements of the Test Policy Device Profile.

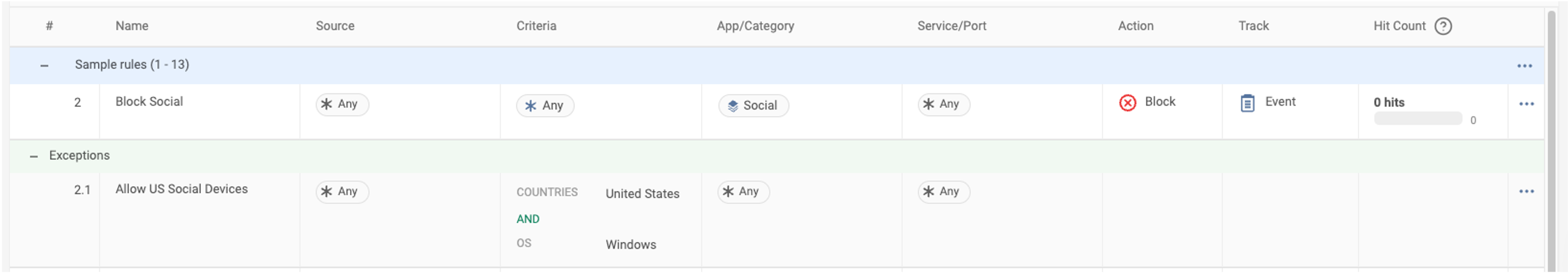

This is an example of an Internet firewall rule that is an exception to the rule that blocks the Social category. The exception allows traffic that matches the following Device conditions: using a Windows or macOS device, and physically located in the United States.


Best Practices for Implementing Firewall Device Conditions

  • Add Device Posture Profiles to rules with the allow action

  • Define the Device Profile with the minimum requirements to allow devices to connect (devices that don't meet these requirements are blocked)
