Cato Cloud to VMware Edge via HA IPsec Tunnels

  • Updated

This article discusses how to connect an IPsec site with VMware Edge devices in a High Availability (HA) configuration to the Cato Cloud.

Sample Network Topology

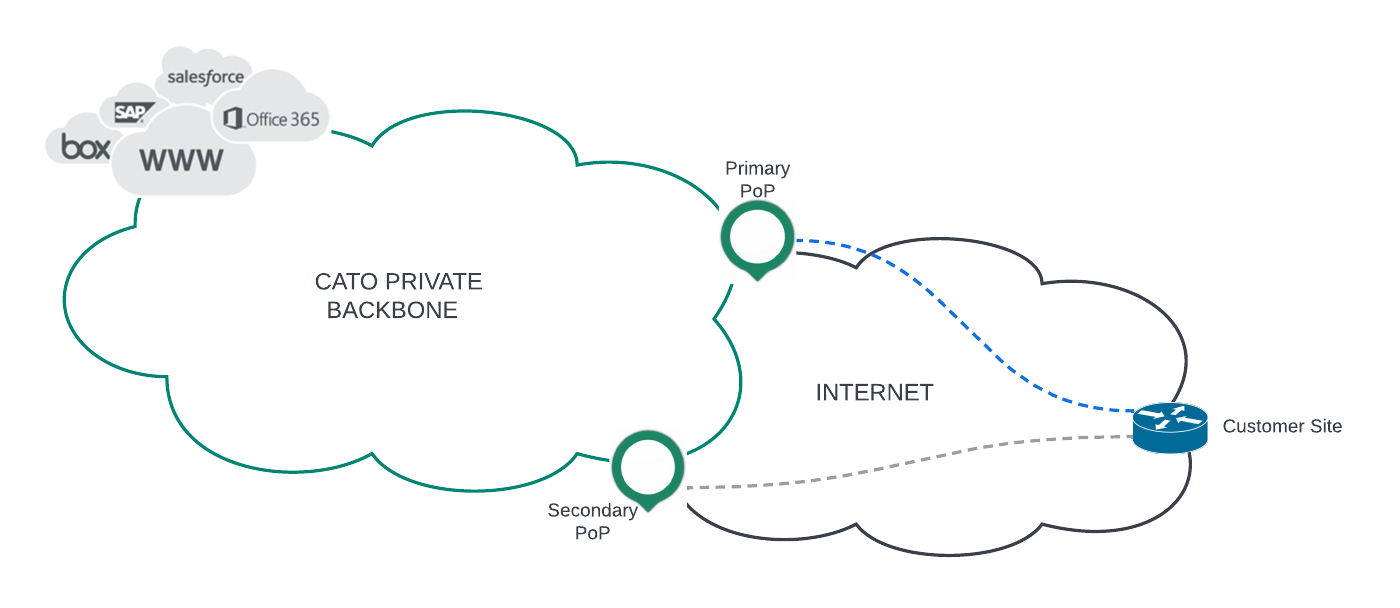

The diagram below shows the topology of a Cato IPsec site that uses VMware Edge devices to connect to the Cato Cloud in an active/passive HA configuration with IPsec.


Creating an HA IPsec Site for Your Account with VMware Edge Devices

You can use the Cato Management Application to create an IPsec IKEv2 site to connect your VMware Edge device to the Cato Cloud. You first need to allocate an IP address for your Cato account. Then configure the settings in the VMware Edge devices to connect to the IP address. Finally, in the Cato Management Application create a new IPSec site, and configure the site settings to connect to the VMware Edge device.

To configure a site to connect to the Cato Cloud with VMware Edge HA IPsec:

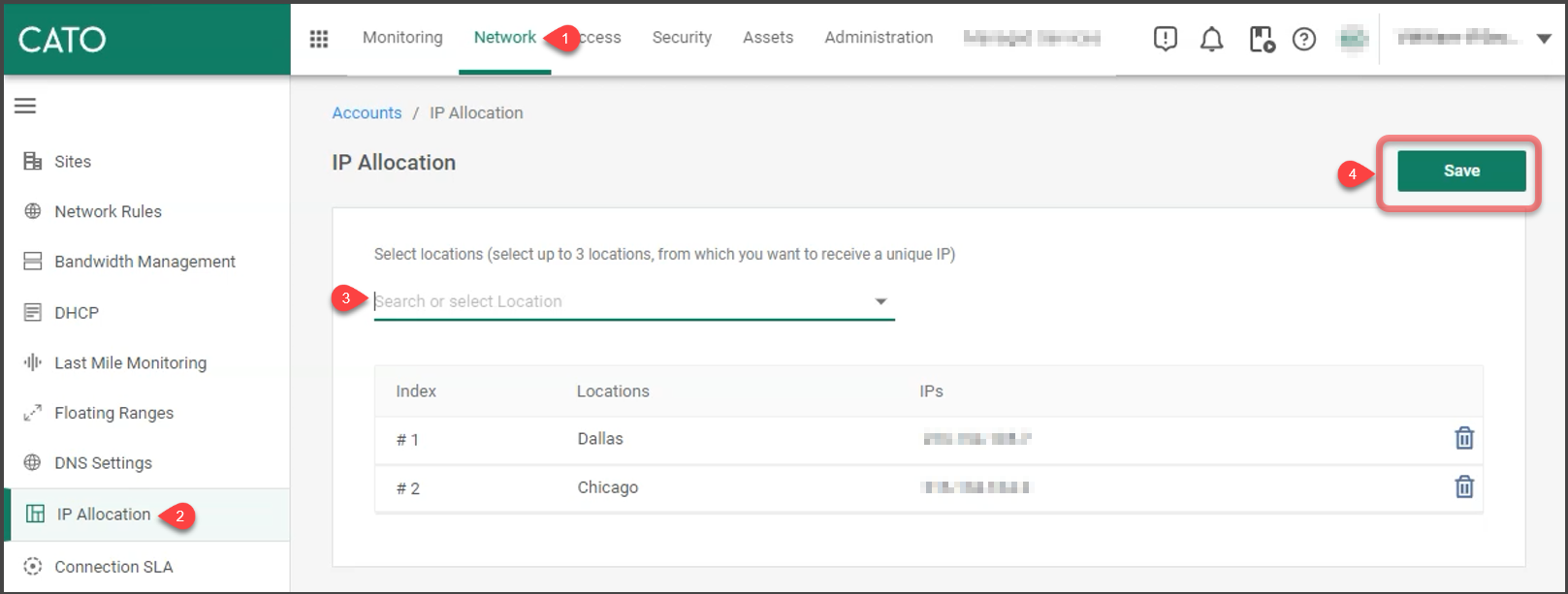

  1. In the Cato Management Application, allocate an IPsec Peer IP from a primary and secondary PoP:

    CMA_IP_Allocation
    1. From the navigation menu, click Network(1) > IP Allocation (2).

    2. In the IP Allocation screen, select two PoP locations that are the primary PoP and secondary PoP (3) for the IPsec tunnels.

      After select the PoP location, the corresponding IPsec peer IP address is shown.

    3. Click Save (4).

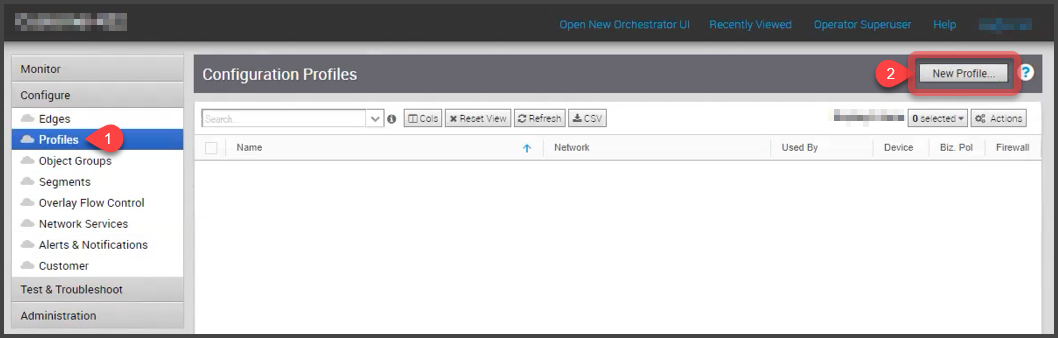

  2. In the VMware SD-WAN Orchestrator navigation menu, select Configure > Profiles (1) , and click New Profile (2) to create a profile.

  3. Under the profile, click the Device tab.

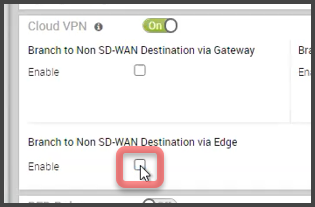

  4. Scroll down to the Cloud VPN section, and enable the Branch to Non SD-WAN Destination via Edge option.

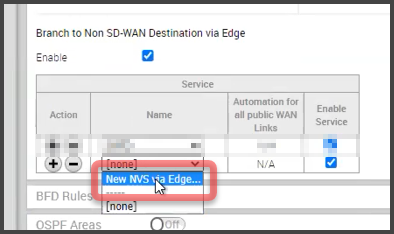

  5. Add a new Service, from the drop-down menu select New NVS via Edge….

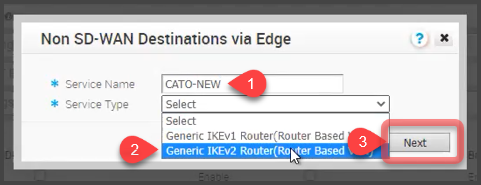

  6. Enter a Service Name (1), and from the Service Type (2) drop-down, select Generic IKEv2 Router (Router Based VPN). Click Next (3).

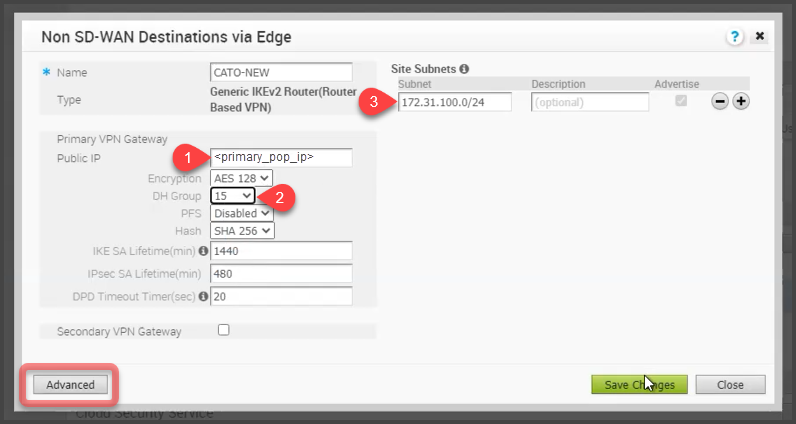

  7. In the Non SD-WAN Destinations via Edge window, click Advanced and configure the following settings:

    1. For Primary VPN Gateway Public IP (1) enter the IP allocated from the primary PoP (in step 1 above).

    2. Set the DH Group (2) value to 15 (to match the Cato default value).

    3. In Site Subnets (3) , specify any Cato WAN subnets that are allowed access this VMware Edge device.

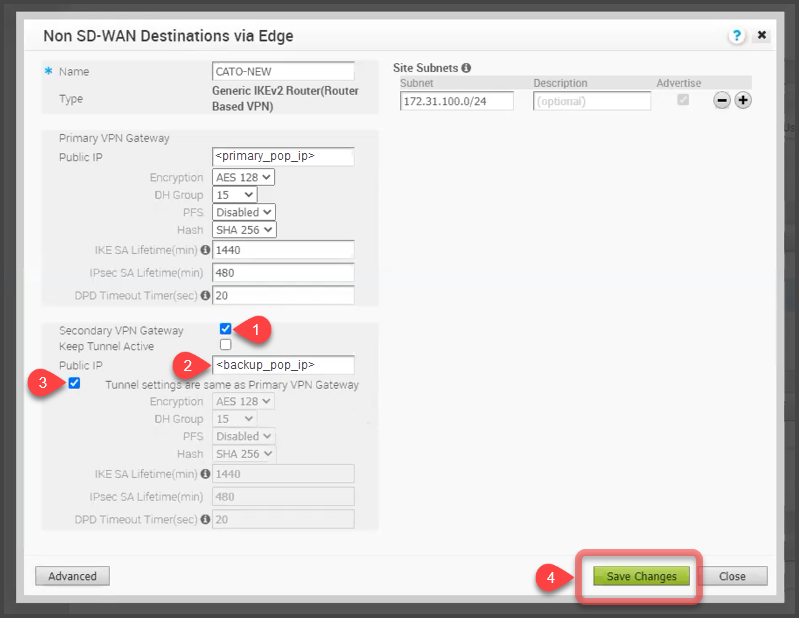

  8. Enable the Secondary VPN Gateway (1) and configure the following settings:

    1. For Public IP (2) enter the IP allocated from the secondary PoP in step 1 above.

    2. Enable the Tunnel settings are same as Primary VPN Gateway (3) option, and click Save Changes (4).

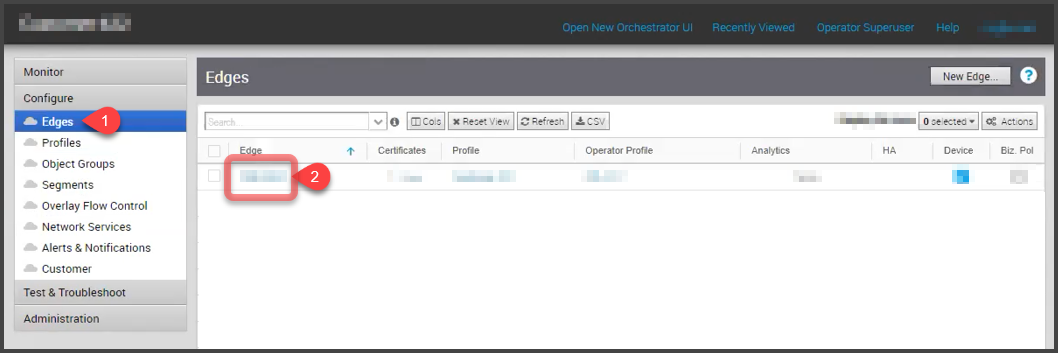

  9. Open the settings to associate the new profile with the appropriate VMware Edge device:

    1. In the navigation menu, select Configure > Edges (1).

    2. Click the hyperlink of the appropriate edge device (2).

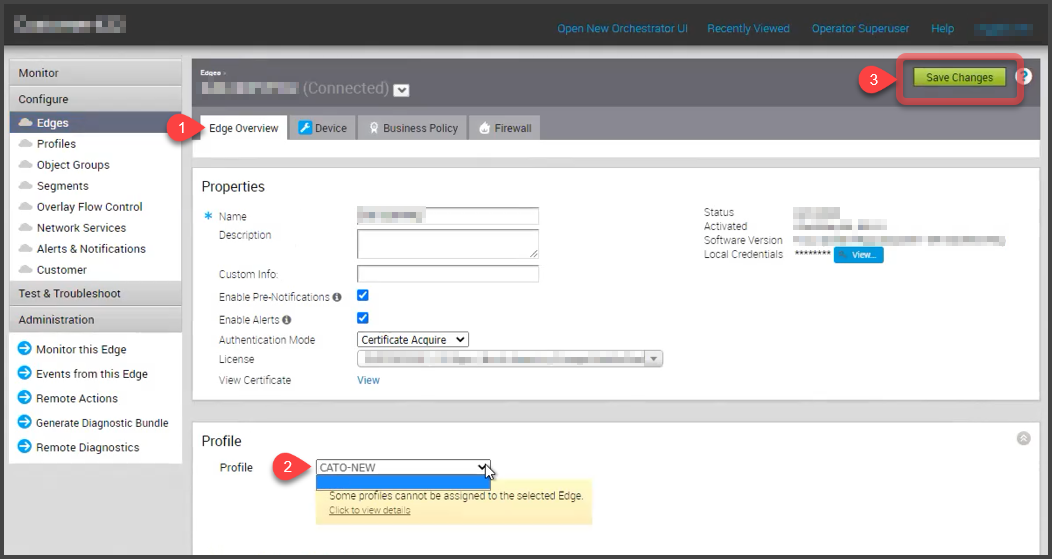

  10. Click the Edge Overview (1) tab, and in the Profile section select the new profile from the Profile drop-down menu (2) and then click Save Changes (3).

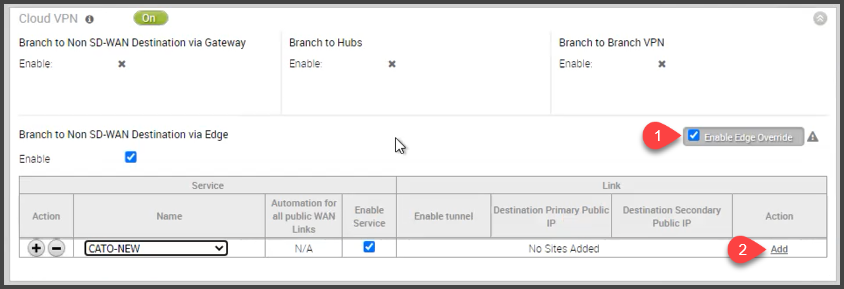

  11. Click the Device tab, and in the Cloud VPN section configure one of the following options:

    • For a single production service connection - Select Enable Edge Override (1) and specify the service created for this connection

    • For multiple production service connections - Allow the service(s) to import automatically based on the profile you set in the previous step.

    Click the Add (2) hyperlink for the service to add Tunnel information.

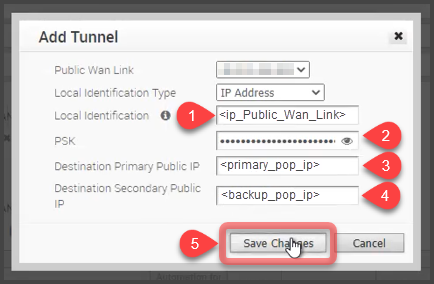

  12. In the Add Tunnel window, configure the following settings:

    1. Set the Local Identification (1) as the Public WAN Link IP Address.

    2. Enter a custom PSK (2).

    3. In Destination Primary Public IP (3) enter the primary PoP IP address.

    4. In Destination Secondary Public IP (4) enter the secondary PoP IP address.

    5. Click Save Changes.

  13. In the Cato Management Application, create a new site for the VMware Edge site:

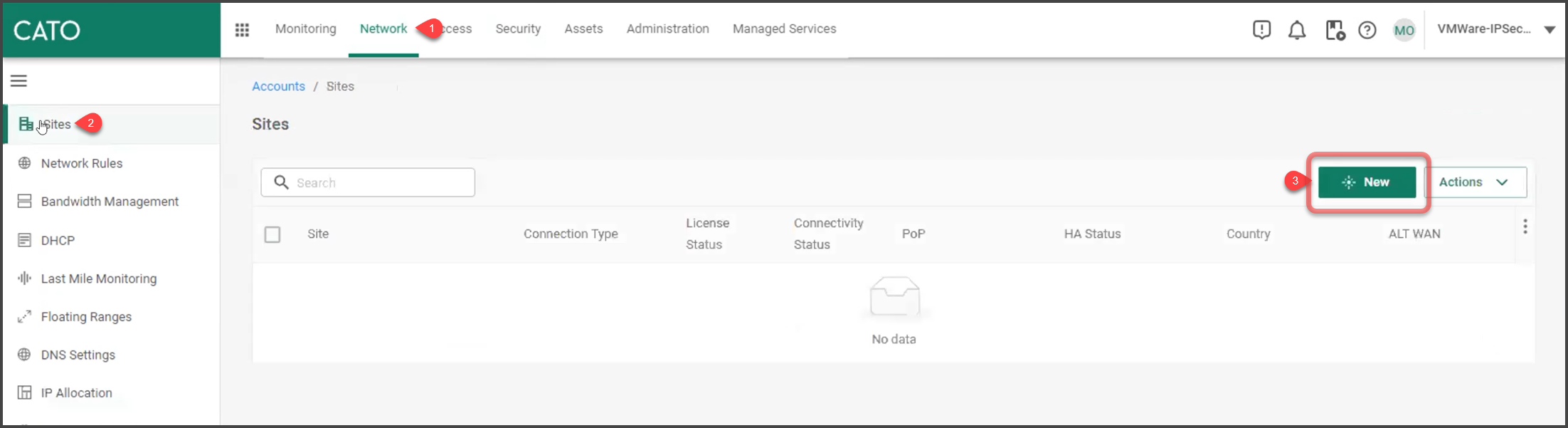

    1. From the navigation menu, select Network (1) > Sites (2).

    2. Click New (3). The Add Site panel opens.

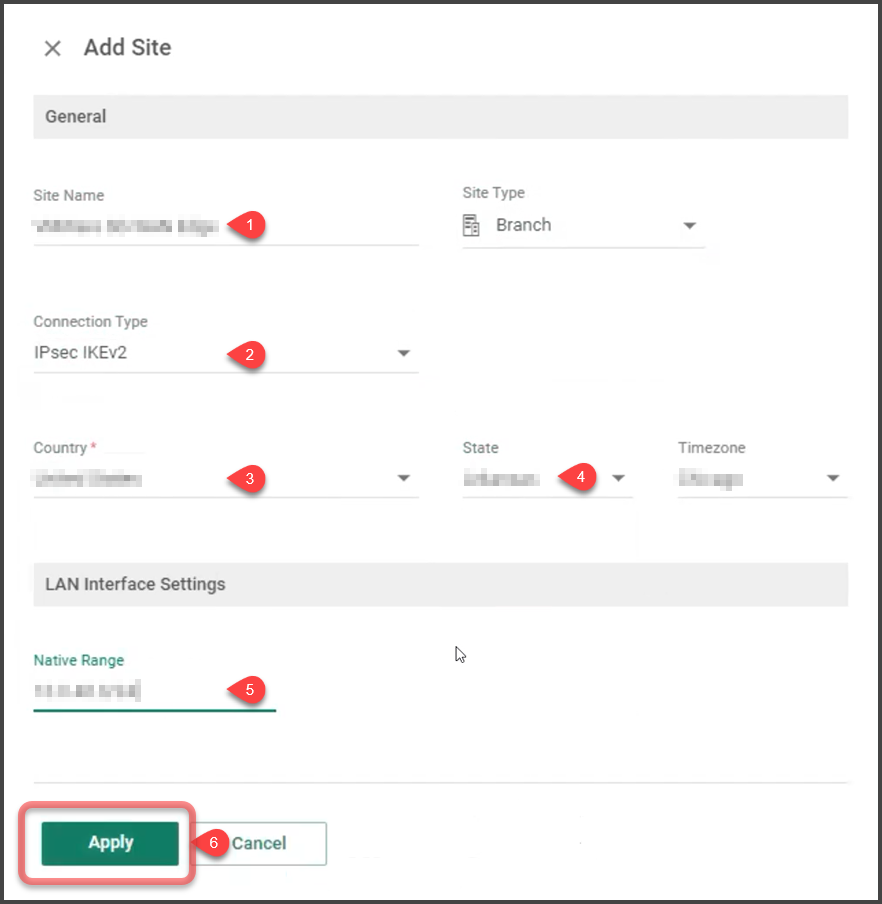

  14. Configure the settings for the new VMware Edge site.

    1. Enter a Site Name (1).

    2. In Connection Type (2), select IPsec IKEv2.

    3. Select the appropriate Country (3) and State (4).

    4. In Native Range (5) specify a network range that sits behind the VMware Edge site that communicates with the ranges connected to the Cato Cloud.

    5. Click Apply (6).

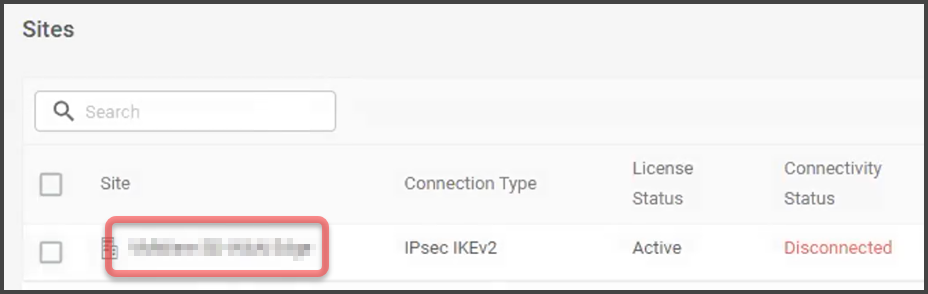

  15. Click the name of the new site to open the site and configure the settings.

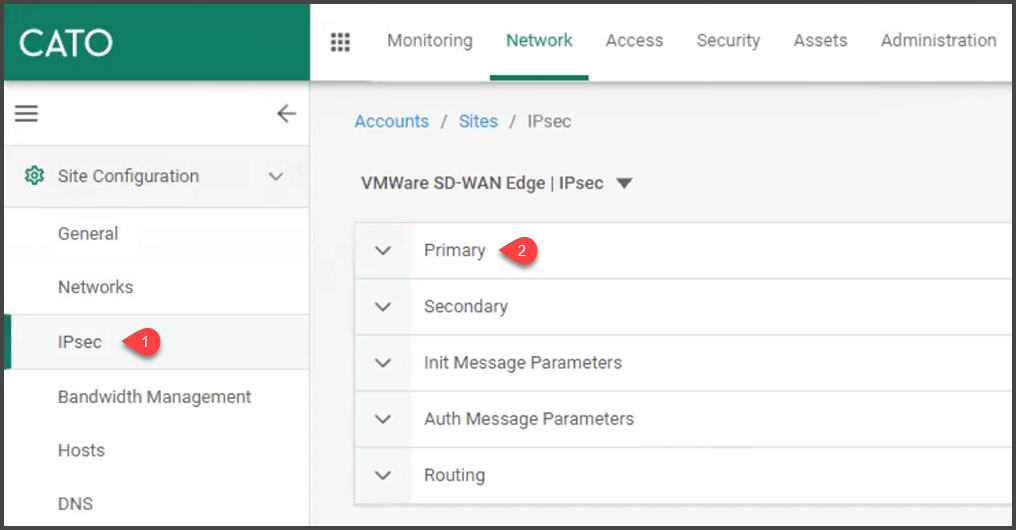

  16. From the navigation menu, select Network > Site Configuration > IPsec (1) and expand the Primary (2) section.

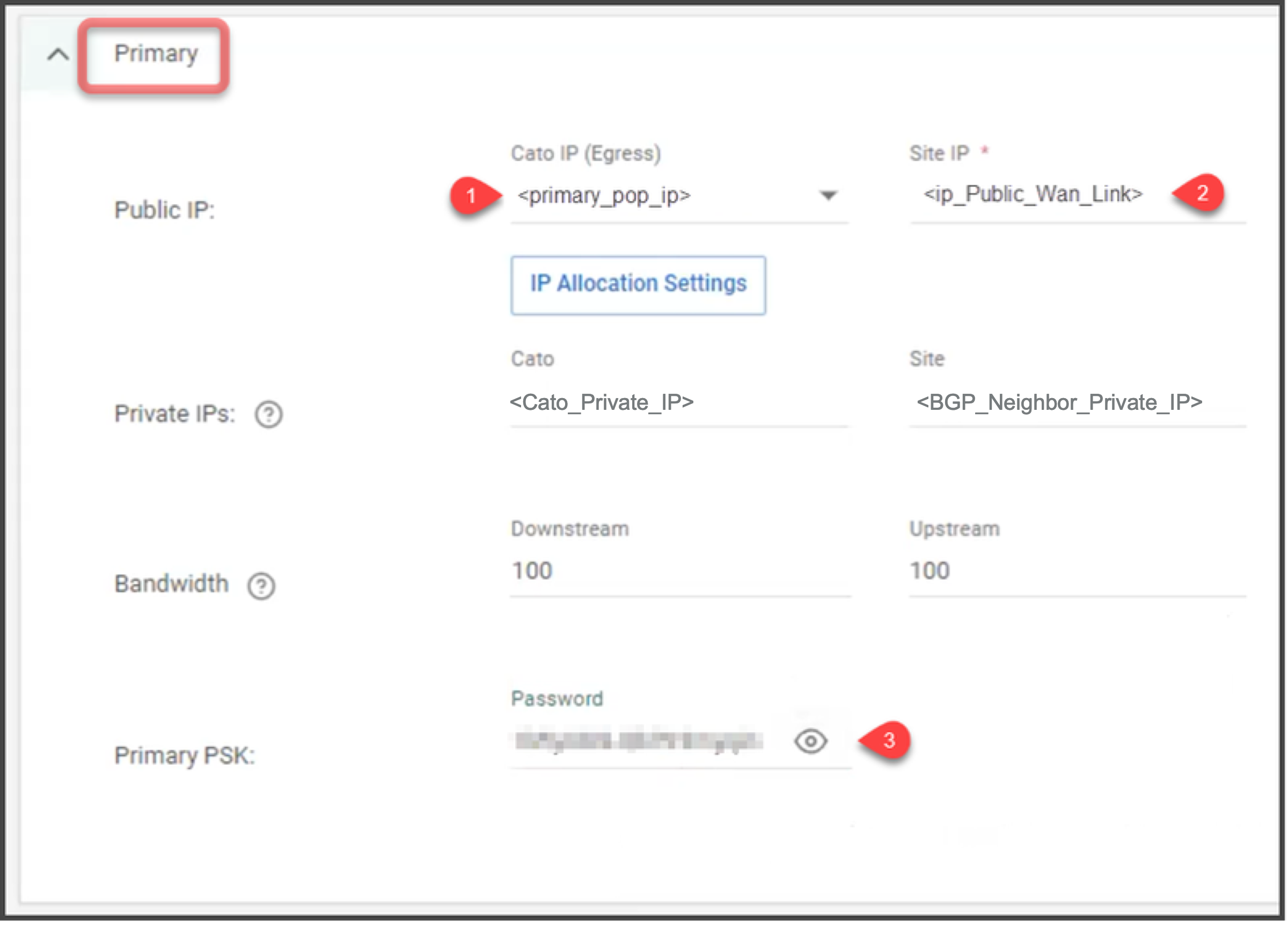

  17. Define the settings for the primary IPsec tunnel:

    1. Define the Public IP:

      1. In Cato IP (Egress) (1), from the drop-down menu choose the primary PoP IP.

      2. In the Site IP (2), enter the VMware Edge Router Public WAN Link IP address.

    2. Enter the Primary PSK (3).

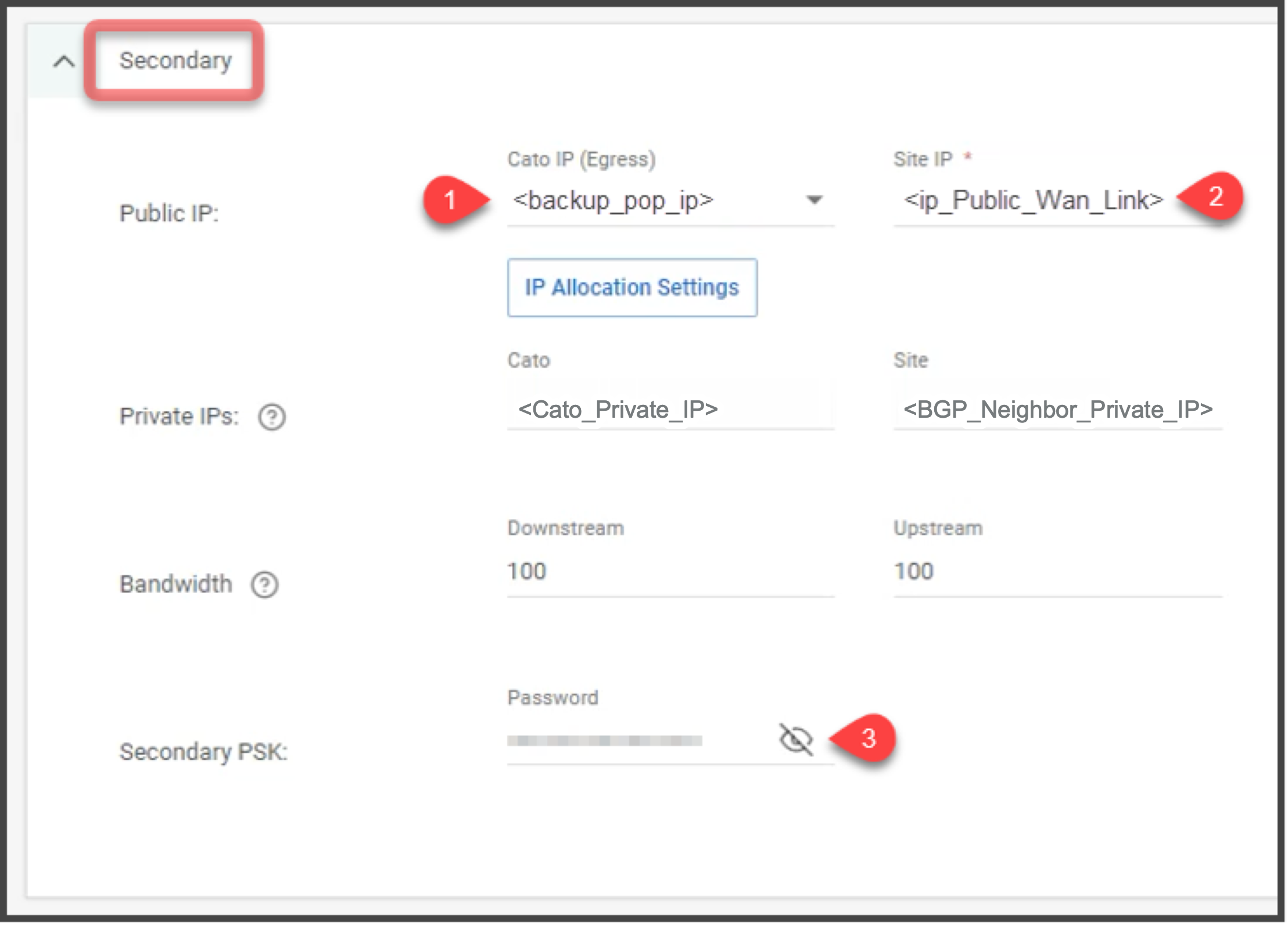

  18. Expand the Secondary tunnel configuration section and configure the settings for the secondary IPsec tunnel:

    1. In Cato IP (Egress) (1), select the secondary PoP IP address from the drop-down menu.

    2. In Site IP (2), enter the VMware Edge Public WAN link IP address.

    3. Enter the Secondary PSK (3).

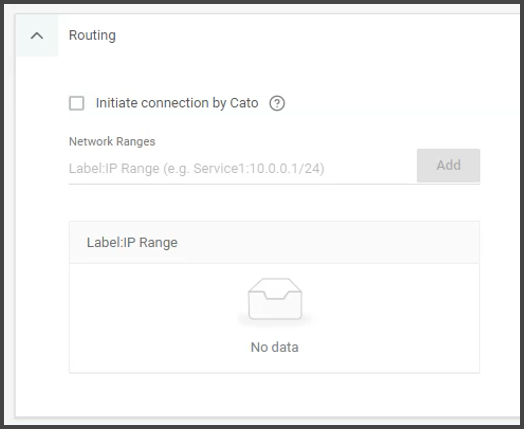

  19. Expand the Routing configuration section, and make sure that Initiate connection by Cato is not enabled.


    Don't specify any Network Ranges. This is a route-based policy and the VMware Edge router builds a single 0.0.0.0 - 255.255.255.255 security association with the Cato Cloud.

  20. Go to the top of the IPsec screen and click Save.

    Your site is now configured to connect to the Cato Cloud.
