Managing Admins with the Cato API

This article discusses the different Cato APIs that let you manage admins and admin roles for the Cato Management Application. This API supports managing admins for both reseller accounts and regular accounts.

addAdmin Configuration API

The addAdmin configuration API creates new admins for the account in the Cato Management Application.

addAdmin Input Parameter

accountId (mandatory)

addAdmin Arguments

These are the arguments for the addAdmin configuration API:

firstName: The first name of the admin (max 255 characters) – this field is mandatory
lastName: The first last of the admin (max 255 characters) – this field is mandatory
email: The email address, unique per admin (max 255 characters) – this field is mandatory
passwordNeverExpires: Boolean value (true/false). If value set to true, the password of the admin never expires – this field is mandatory
mfaEnabled: Boolean value (true/false). If value set to true, admin must use an MFA code to log in to the Cato Management Application - this field is mandatory
managedRoles: array of updateAdminRoleInput. Defines one or more roles that are assigned to the admin. For reseller admins, this field defines the roles that are assigned to the admin for the managed accounts. If this field isn’t defined for the API call, then the admin is assigned the viewer role (ID 2)
- Use the ID 1 to assign the editor role to the admin
resellerRoles: array of updateAdminRoleInput (relevant only for reseller admins). Defines the roles that the admin is assigned for the reseller account. If this field isn’t defined for the API call, then the admin is assigned the viewer role for the reseller account.

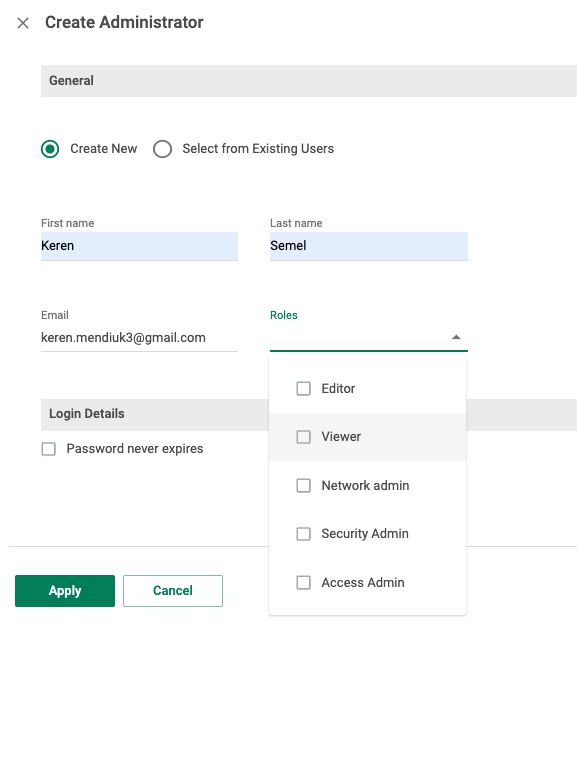

Once the admin is created the flow is the same as it if the admin was created in the Cato Management Application.

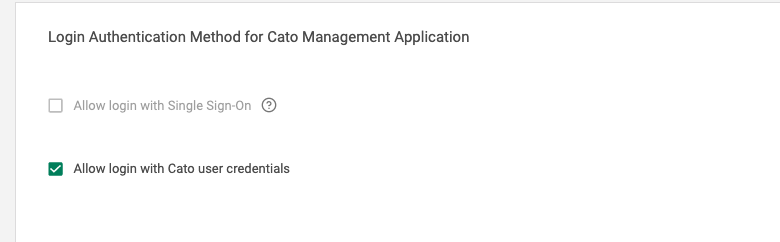

If the account is defined to let admins log in with username and password, then the admin will receive the welcome email with a link to activate the account and set the password.

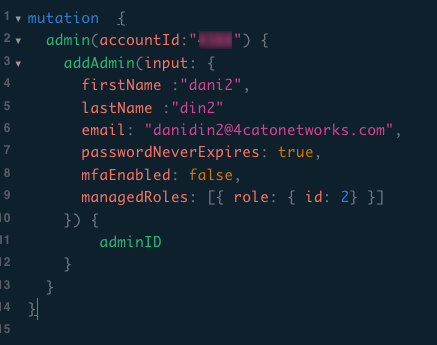

addAdmin API Example

mutation  {
  admin(accountId:"xxxxxx") {
    addAdmin(input: {
      firstName :"dani2",
      lastName :"din2"
      email: "danidin5@4catonetworks.com",
      passwordNeverExpires: true,
      mfaEnabled: false,
      managedRoles: [{ role: { id: 2} }, {role: {id:3}}]
    }) {
        adminID
    }
  }
}

updateAdmin Configuration API

updateAdmin configuration API lets you update admin information (admin's email and id cannot be updated).

updateAdmin Input Parameters

accountId (mandatory)

updateAdmin Arguments

adminID (mandatory)
firstName: The first name of the admin
lastName: The last of the admin
passwordNeverExpires: Boolean value (true/false). If value is set to true, the password of the admin never expires
mfaEnabled: Boolean value (true/false). If the value set to true, the admin must use an MFA code to log in to the Cato Management Application
managedRoles: array of updateAdminRoleInput. Defines one or more roles that are assigned to the admin. For reseller admins, this field defines the roles that are assigned to the admin for the managed accounts.
resellerRoles: array of updateAdminRoleInput (relevant only for reseller admins). Defines the roles that the admin is assigned for the reseller account.

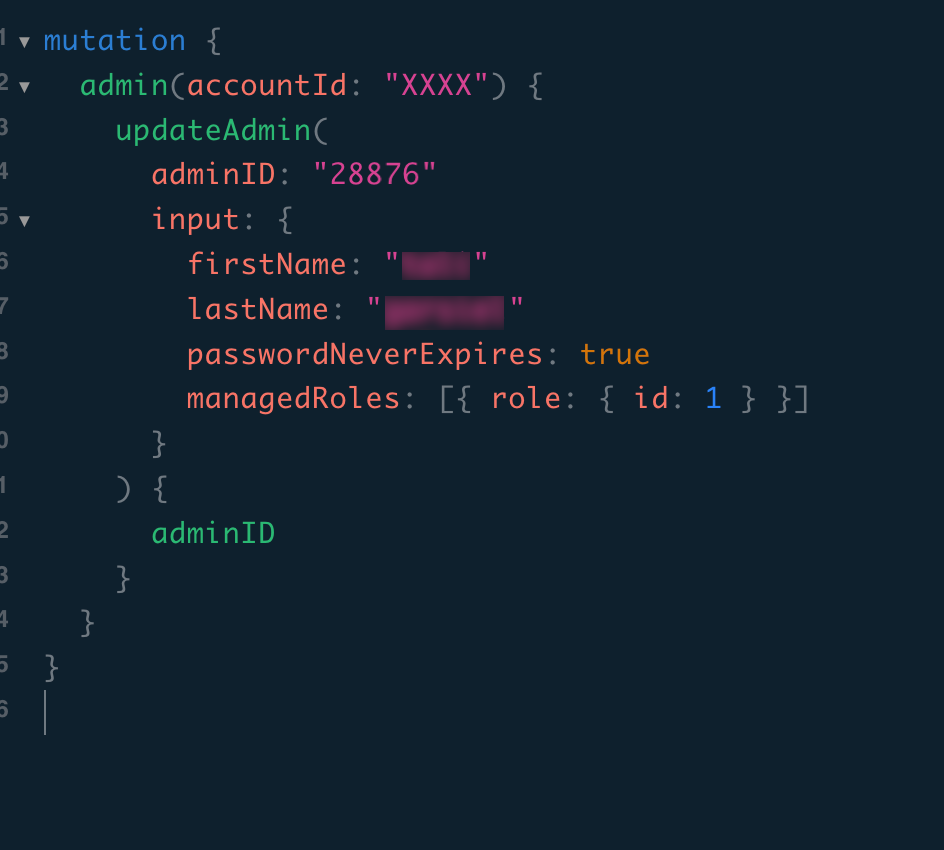

updateAdmin API Example

mutation {
  admin(accountId: "26") {
    updateAdmin(
      adminID: "28876"
      input: {
        firstName: "sample"
        lastName: "admin"
        passwordNeverExpires: true
        managedRoles: [{ role: { id: 1 } }]
      }
    ) {
      adminID
    }
  }
}

removeAdmin

The removeAdmin configuration API lets you delete an admin from the account.

removeAdmin Arguments

accountId (mandatory)
adminID (mandatory)

removeAdmin API Example

mutation  {
  admin(accountId:"XXX") {
    removeAdmin(adminID:YYY
    ) {
        adminID
    }
  }
}

admins Read-Only API

The admins read-only API query returns data regarding all the admins of the account, including: id, email, First Name, Last Name, passwordNeverExpires, mfaEnabled, and roles.

admins Input Parameter

accountId (mandatory)

admins Arguments

id: The Cato ID of the admin
firstName: The first name of the admin
lastName: The last of the admin
email: The email address
passwordNeverExpires: Boolean value (true/false). If value is set to true, the password of the admin never expires
mfaEnabled: Boolean value (true/false). If value is set to true, the admin must use an MFA code to log in to the Cato Management Application
managedRoles: array of updateAdminRoleInput. Defines one or more roles that are assigned to the admin. For reseller admins, this field defines the roles that are assigned to the admin for the managed accounts.
resellerRoles: array of updateAdminRoleInput (relevant only for reseller admins). Defines the roles that the admin is assigned for the reseller account.

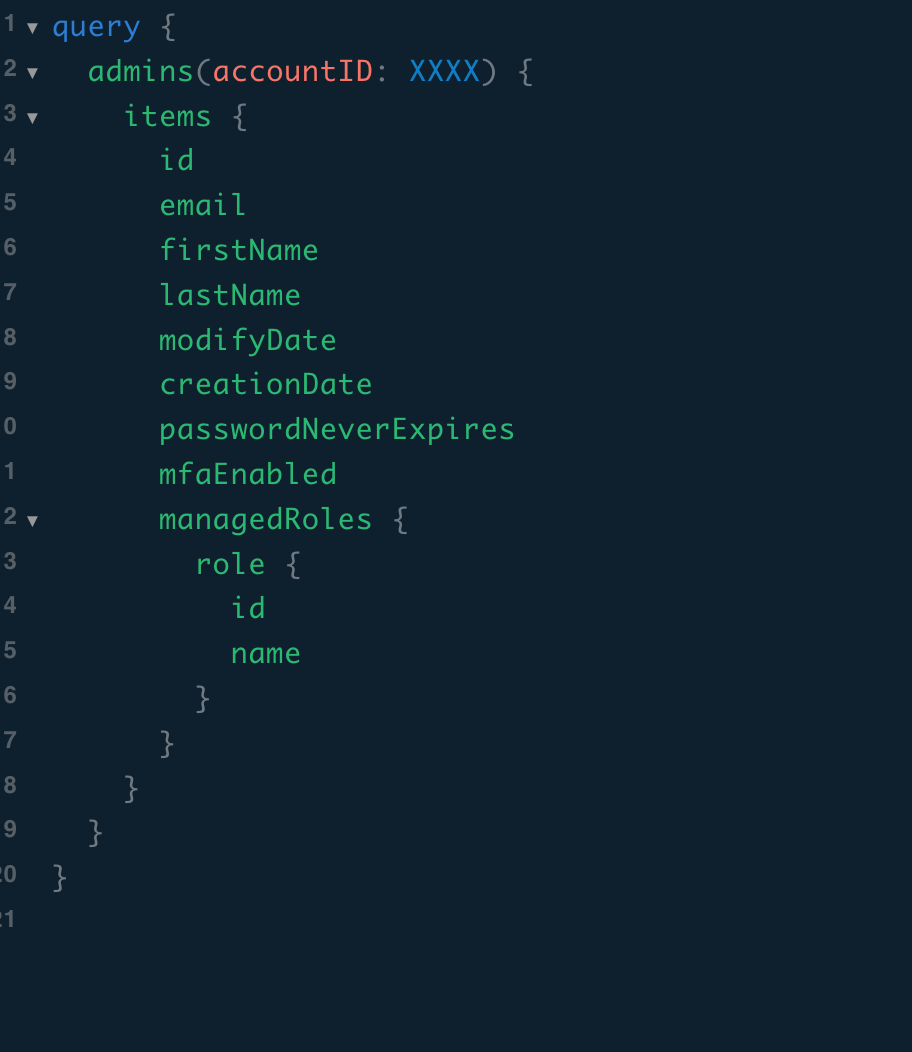

admins API Example

query {
  admins(accountID: XXXX) {
    items {
      id
      email
      firstName
      lastName
      modifyDate
      creationDate
      passwordNeverExpires
      mfaEnabled
      managedRoles {
        role {
          id
          name
        }
	resellerRoles {
        role {
          id
          name
        }
      }
    }
  }
}

getAdmin Read-Only API

The getAdmin read-only API query returns information about a single account admin, such as: Email, First Name, Last Name, passwordNeverExpires, mfaEnabled, and roles

getAdmin Input Parameters

accountId (mandatory)
adminID (mandatory)

getAdmin Arguments

firstName: The first name of the admin
lastName: The last of the admin
email: The email address
passwordNeverExpires: Boolean value (true/false). If value is set to true, the password of the admin never expires
mfaEnabled: Boolean value (true/false). If value is set to true, admin must use an MFA code to log in to the Cato Management Application
managedRoles: array of updateAdminRoleInput. Defines one or more roles that are assigned to the admin. For reseller admins, this field defines the roles that are assigned to the admin for the managed accounts.
resellerRoles: array of updateAdminRoleInput (relevant only for reseller admins). Defines the roles that the admin is assigned for the reseller account.

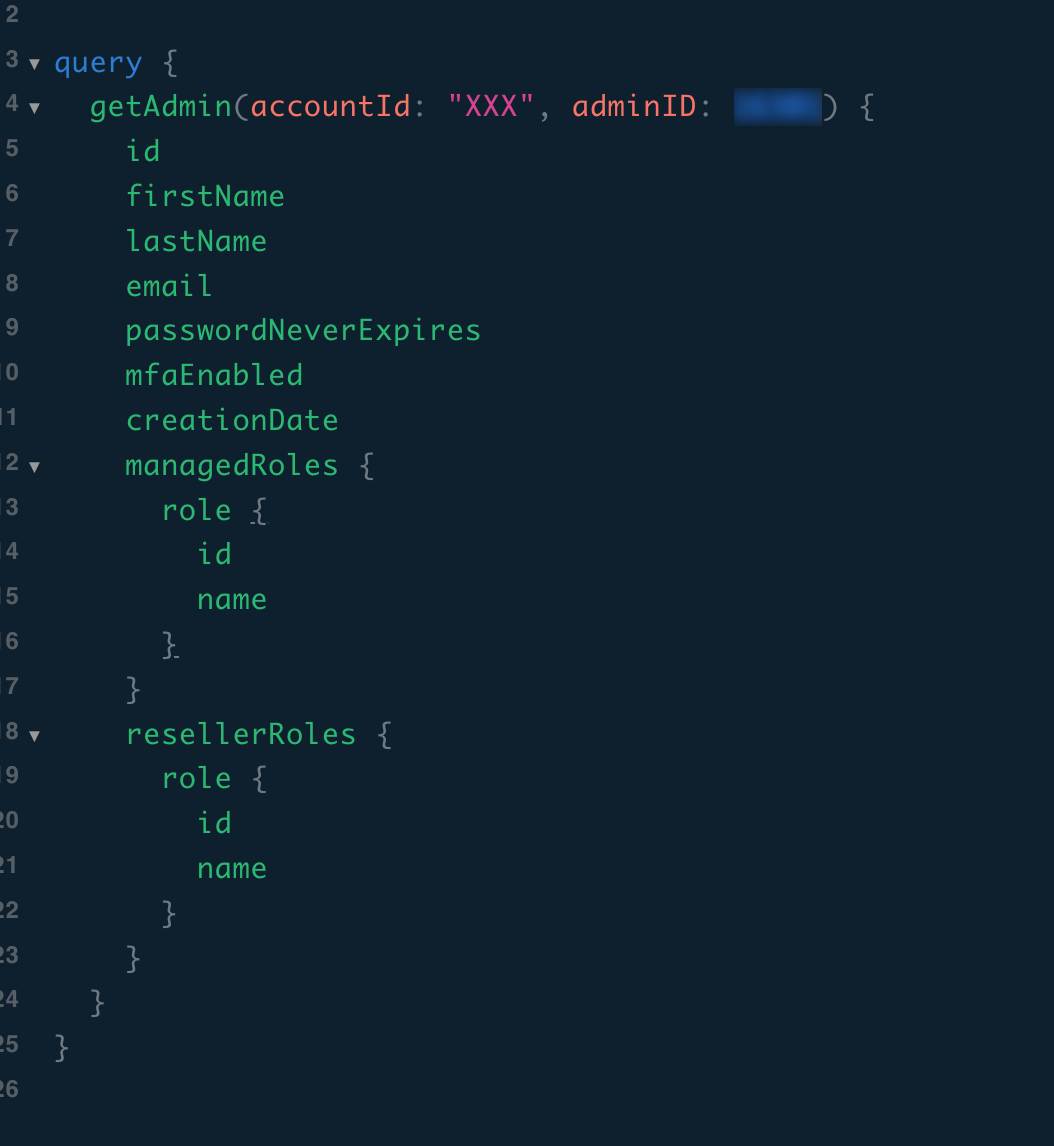

getAdmin API Example

query {
  getAdmin(accountId: "XXX", adminID: YYY) {
    id
    firstName
    lastName
    email
    passwordNeverExpires
    mfaEnabled
    creationDate
    managedRoles {
      role {
        id
        name
      }
    }
    resellerRoles {
      role {
        id
        name
      }
    }
  }
}

accountRoles Read-Only API

The accountRoles API read-only query returns all the roles defined for the account (custom roles and the predefined ones). It is required for customers that use the addAdmin API, because this APIs shows the role IDs (used by the addAdmin API).

accountRoles Input Parameters

accountId
accountType
- Regular (for regular or managed accounts roles)
- Reseller (for reseller account roles)

accountRoles Arguments

   id: ID! (the id of the role)
   name: String! (the name of the role)
   description: String (the description)
   isPredefined: Boolean! (is it a predefined or a custom role)

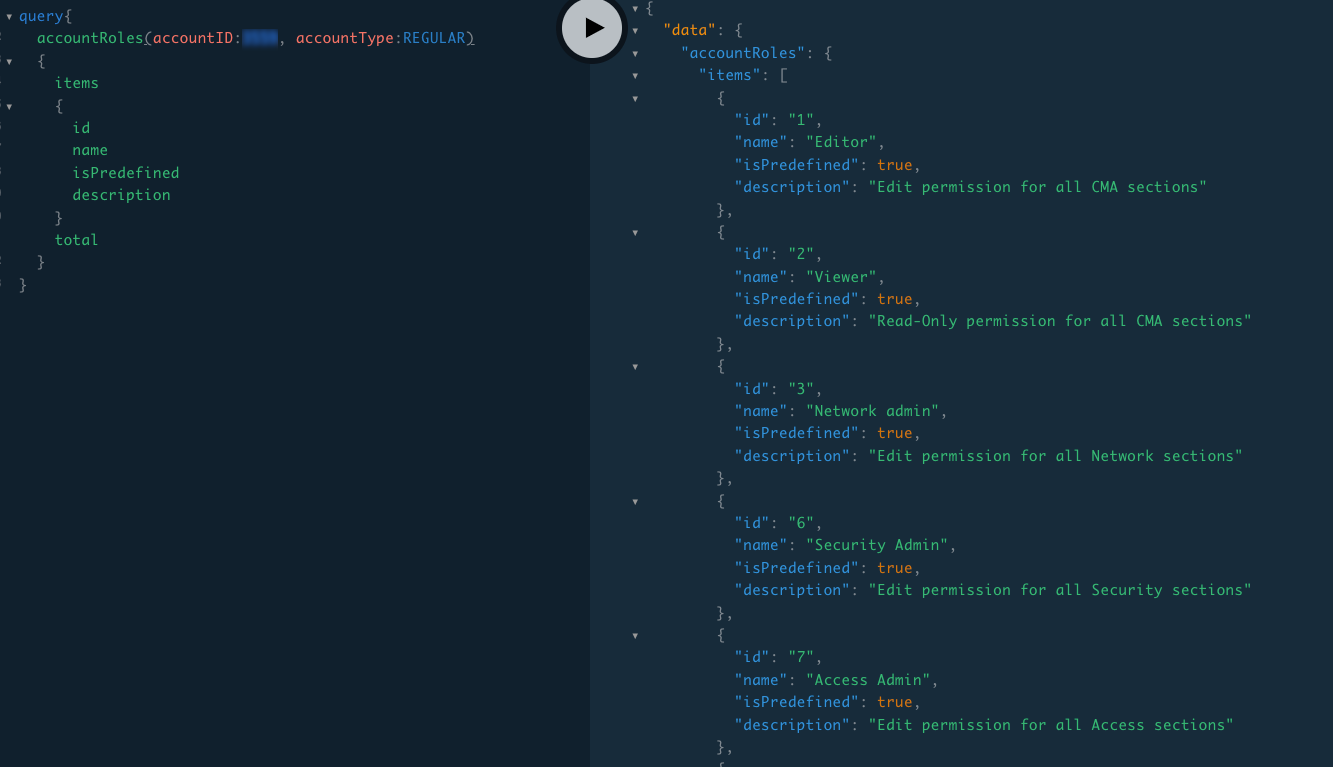

accountRoles Query Example

query{
  accountRoles(accountID:XXX, accountType:REGULAR)
  {
    items
    {
      id
      name
      isPredefined
      description
    }
    total
  }
}

updateAdminRoleInput Configuration API

The updateAdminRoleInput configuration API lets you update the settings for an admin role for the Cato Management Application.

input updateAdminRoleInput {
  role: updateAccountRoleInput!
  allowedEntities: [entityInput!]
}
