Overview

SCIM provisioning is a directory services feature from an Identity Provider (IdP) used to provision users inside the Cato Management Application (CMA). Being unable to complete this provisioning means that users will not be added to the CMA. This playbook looks to provide guidance on troubleshooting issues with the SCIM provisioning process.

Symptoms

Issues with SCIM Provisioning can manifest in a number of ways. An administrator may note the following symptoms:

• SCIM provisioning cannot be enabled
• No users can be added to CMA via SCIM provisioning
• New users are added to CMA, but are not working correctly
• Additional users are unable to be added to CMA via SCIM provisioning
• SCIM users have been updated, but the changes are not reflected in CMA

Possible Causes

The following are possible causes that you can identify while troubleshooting

• The account does not meet the requirements for SCIM provisioning
• There is a credentials mismatch between the IdP and CMA
• Attributes are missing in the IdP and cannot be propagated to CMA
• There are insufficient licenses to provision the users
• Groups in the IdP are not assigned to the application
• The User or Group is not scoped correctly in the provisioning application
• The required Users or Groups are nested in the IdP
• The User or Group has not updated the relevant fields from the provisioning application to CMA

Troubleshooting

Steps to troubleshoot the symptoms an Administrator may encounter are listed below. These steps are intended to identify possible causes for the issues faced. The resolution steps will be highlighted later in the playbook.

Troubleshooting SCIM provisioning cannot be enabled

Ensure the account meets the requirements for SCIM provisioning

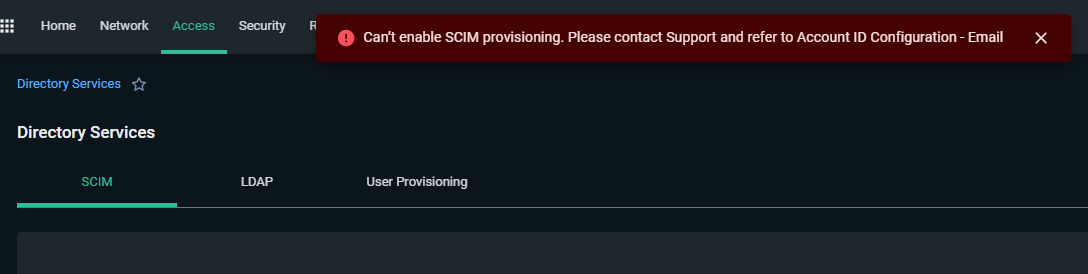

When attempting to enable SCIM note the error message that is presented. In this case "Can't enable SCIM provisioning. Please contact Support and refer to Account ID Configuration - Email"

Troubleshooting initial SCIM provisioning fails to add users to CMA

Confirm the credentials are correct in the provisioning application

Go to the  SCIM Application > Provisioning > Provisioning > Admin Credentials press Test Connection and review the error message:

Check the available licences

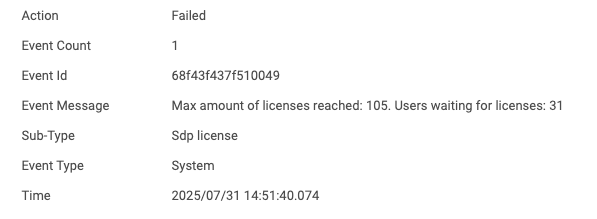

Check the events for the account under Monitoring > Events  apply a filter: Event Type is System check for events with Sub-Type Sdp licence

Troubleshooting new users are added to CMA but are not working correctly

Confirm attributes are being correctly populated in CMA

CMA cannot assign licenses to users that do not have the mandatory email attribute.

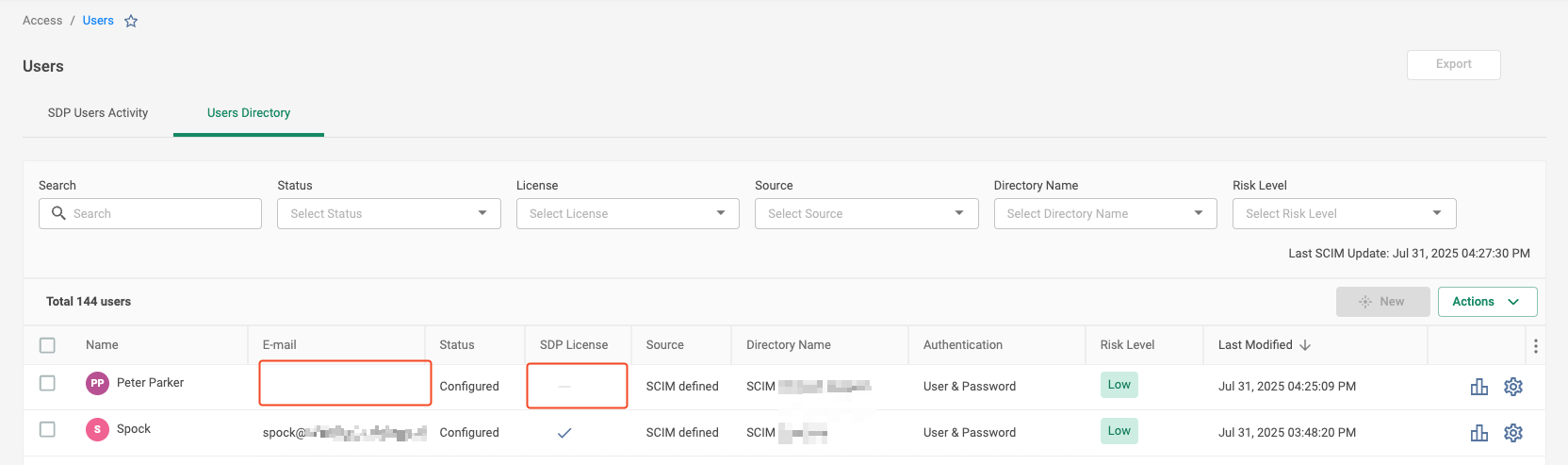

Check the users entry in Access > Users > Users Directory and confirm the E-mail field has valid content.

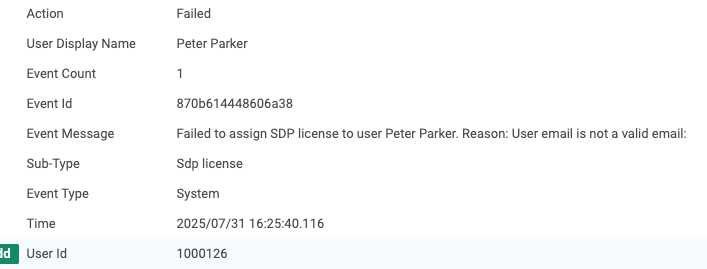

Check the events for the account under Monitoring > Events  apply a filter: Event Type is System

Check the available licences

Check the events for the account under Monitoring > Events  apply a filter: Event Type is System check for events with Sub-Type Sdp licence

Troubleshooting additional users are unable to be added to CMA via SCIM provisioning

Check where users or groups are not present in CMA

If you cannot see expected users or groups in the CMA under Access > Users > Users Directory  or Access > Users Groups.

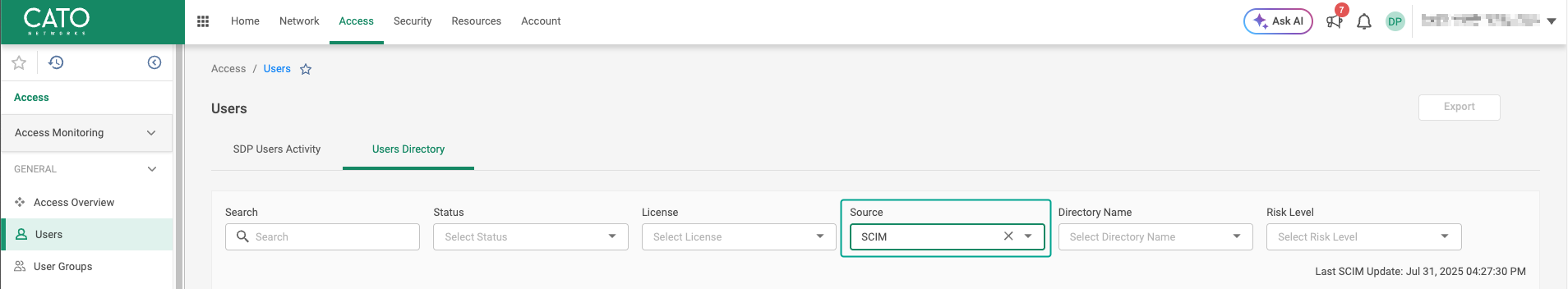

For Users Directory  you can filter by Source SCIM

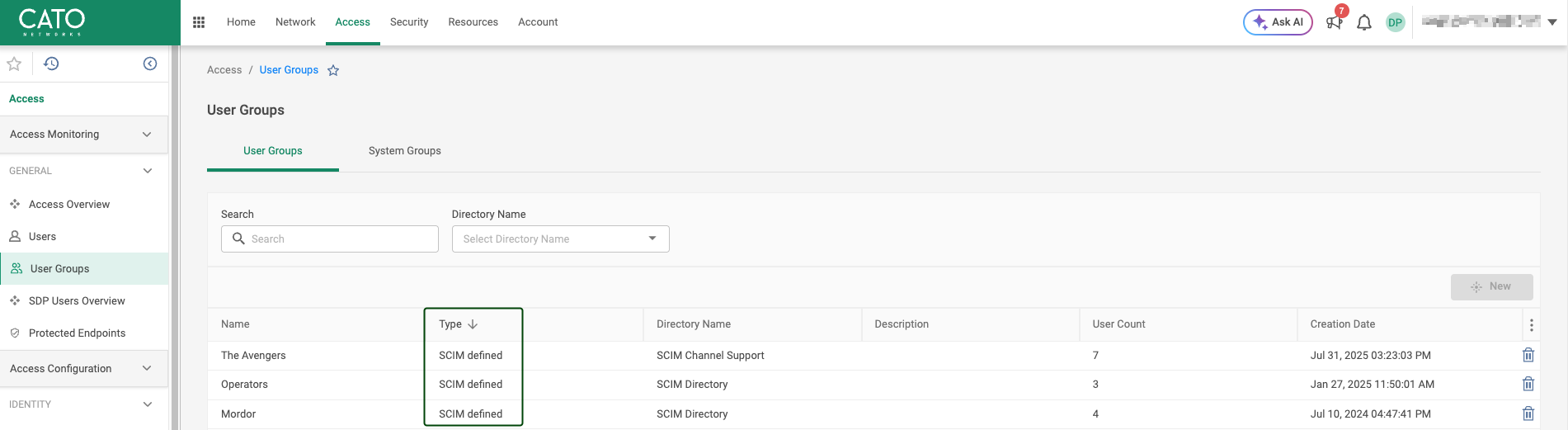

For Users Groups see Type: SCIM Defined.

Verify the reason for a failure to provision using the provision on demand feature

In the provisioning application, you can confirm the scoping of a user by making use of the Provision on demand feature. Go to Enterprise applications > Cato Provisioning Application > Provisioning > Provision on demand enter the users details and press Provision.

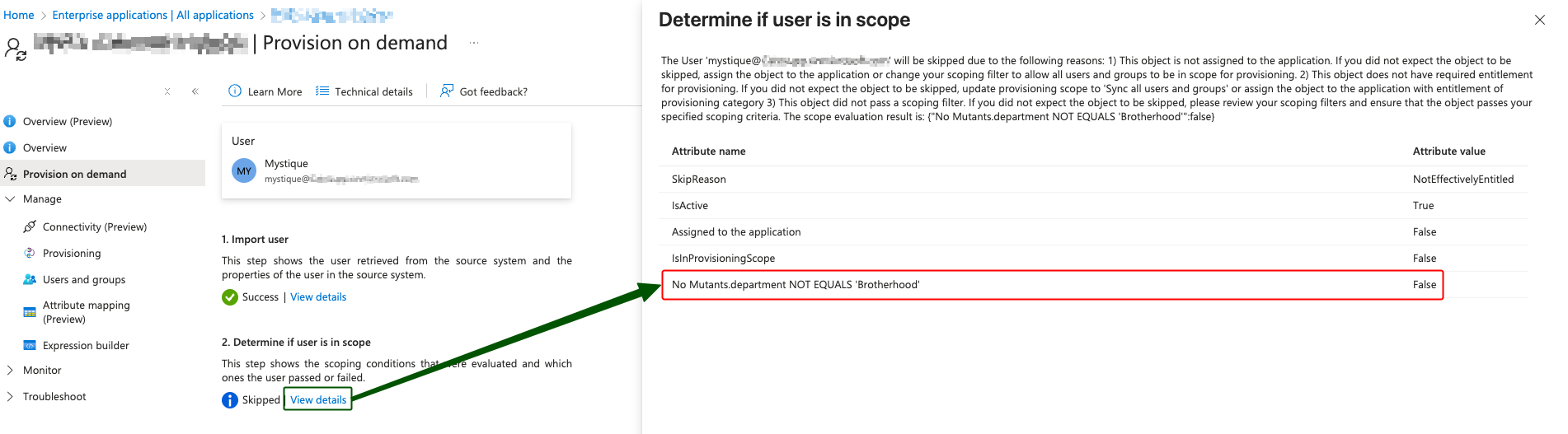

Once it fails, you can view details of the skipped action

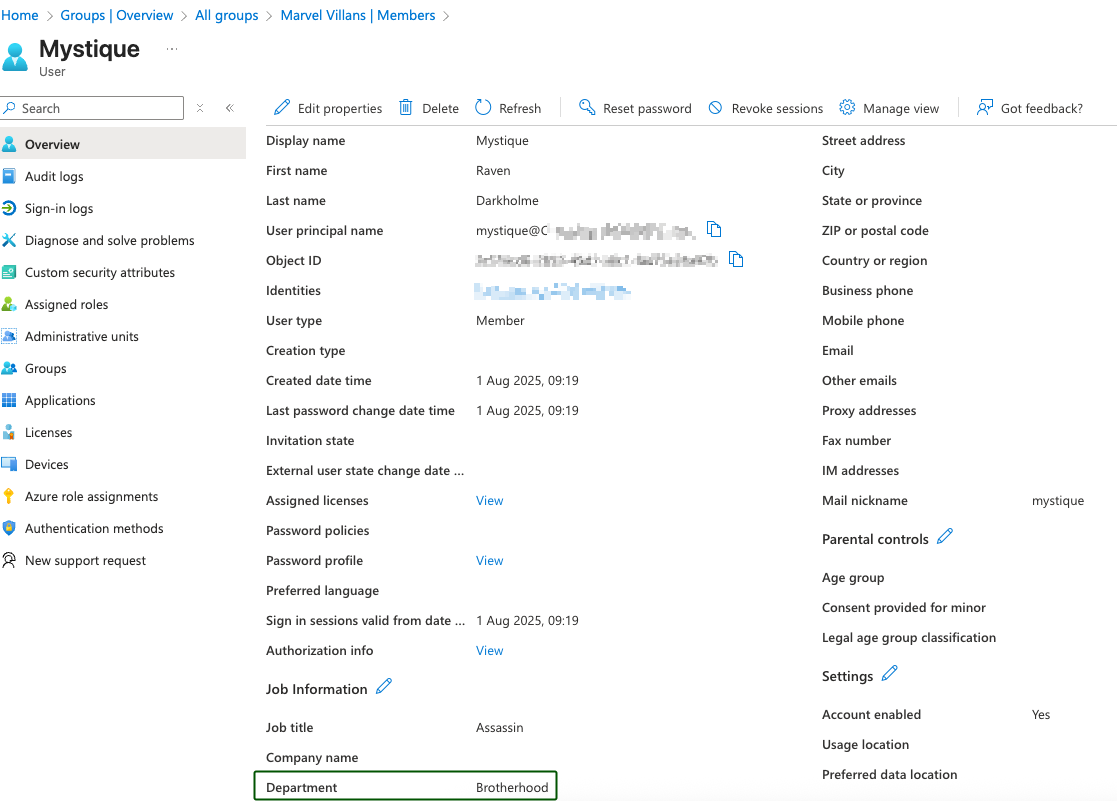

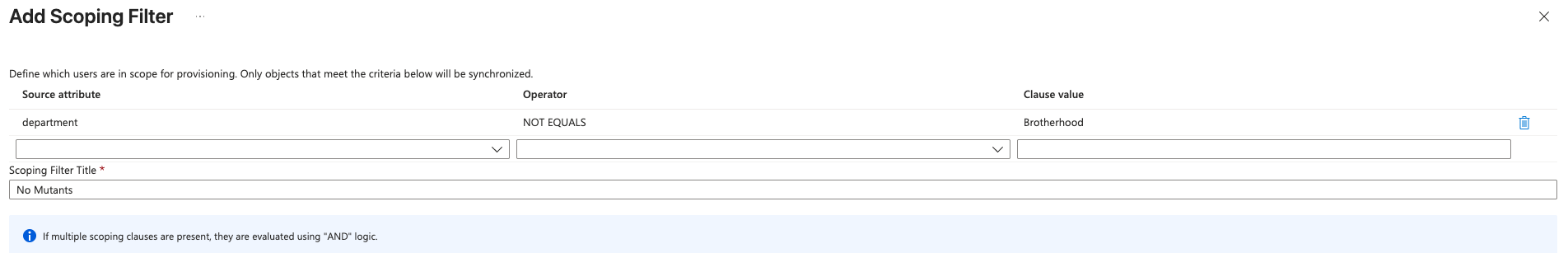

In this scenario, we can see the user is part of the department Brotherhood which does not fit with the scoping rule 'No Mutants', which has the clause department NOT EQUALS ‘Brotherhood’

Checking for other provisioning errors.

There can be other scenarios where the group is not part of the application, review the message presented and identify the cause.

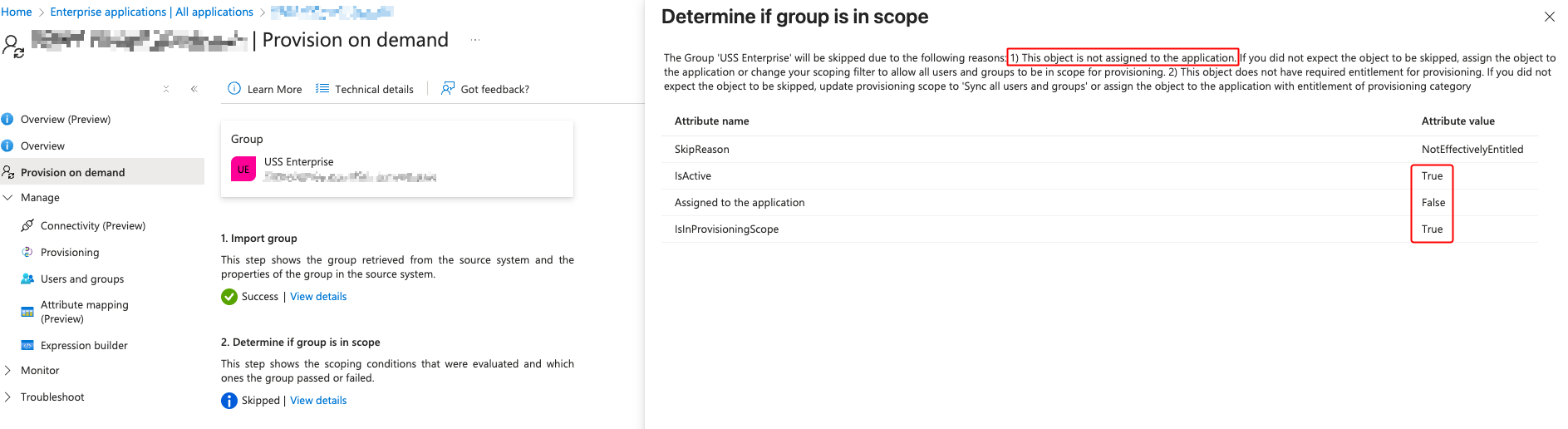

In this case the group is active and meets the scoping but is reported as not assigned to the application:

Troubleshooting SCIM users have been updated, but the changes are not reflected in CMA

Users may have attributes updated in the SCIM provisioning application, but this is not reflected when a provisioning sync is completed.

Resolving Discovered Issues

Resolving the account does not meet the requirements for SCIM provisioning

You will need to raise a case with Cato Support. Please see the Raising Cases to Cato Support section below.

Resolving there is a credentials mismatch between the IdP and CMA

Go to the  SCIM Application > Provisioning >  Provisioning  > Admin Credentials. Ensure that the credentials (Tenant URL and Token) for the application are valid.

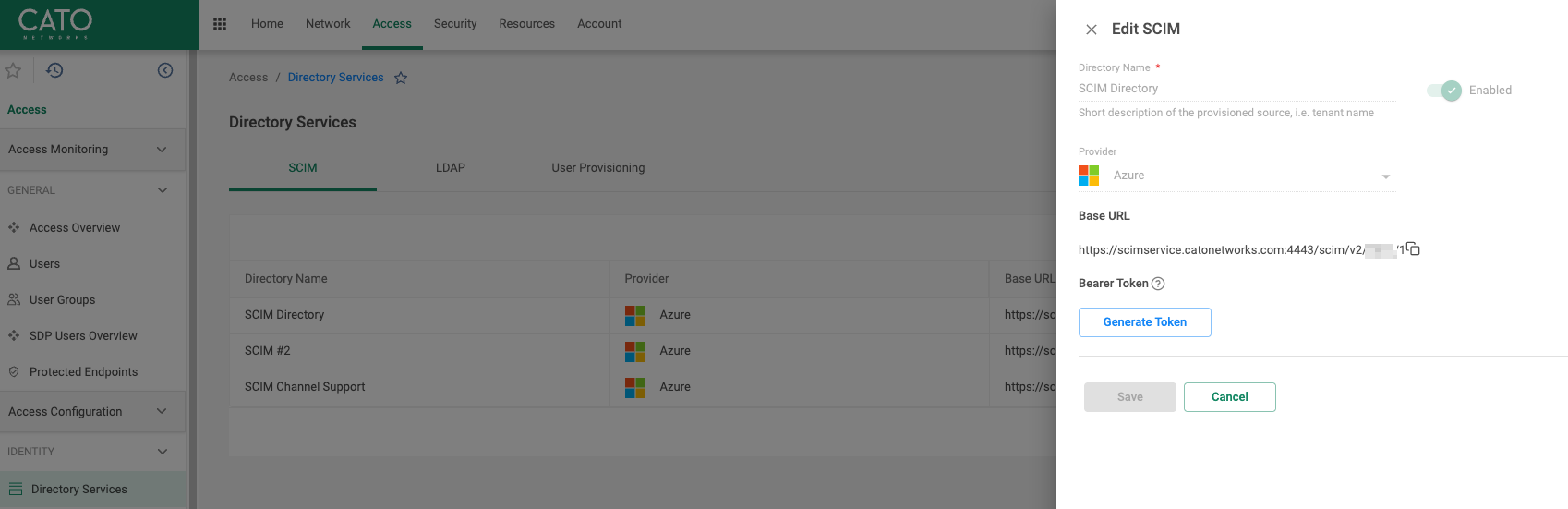

The credentials are available in CMA under Access > Directory Services > SCIM

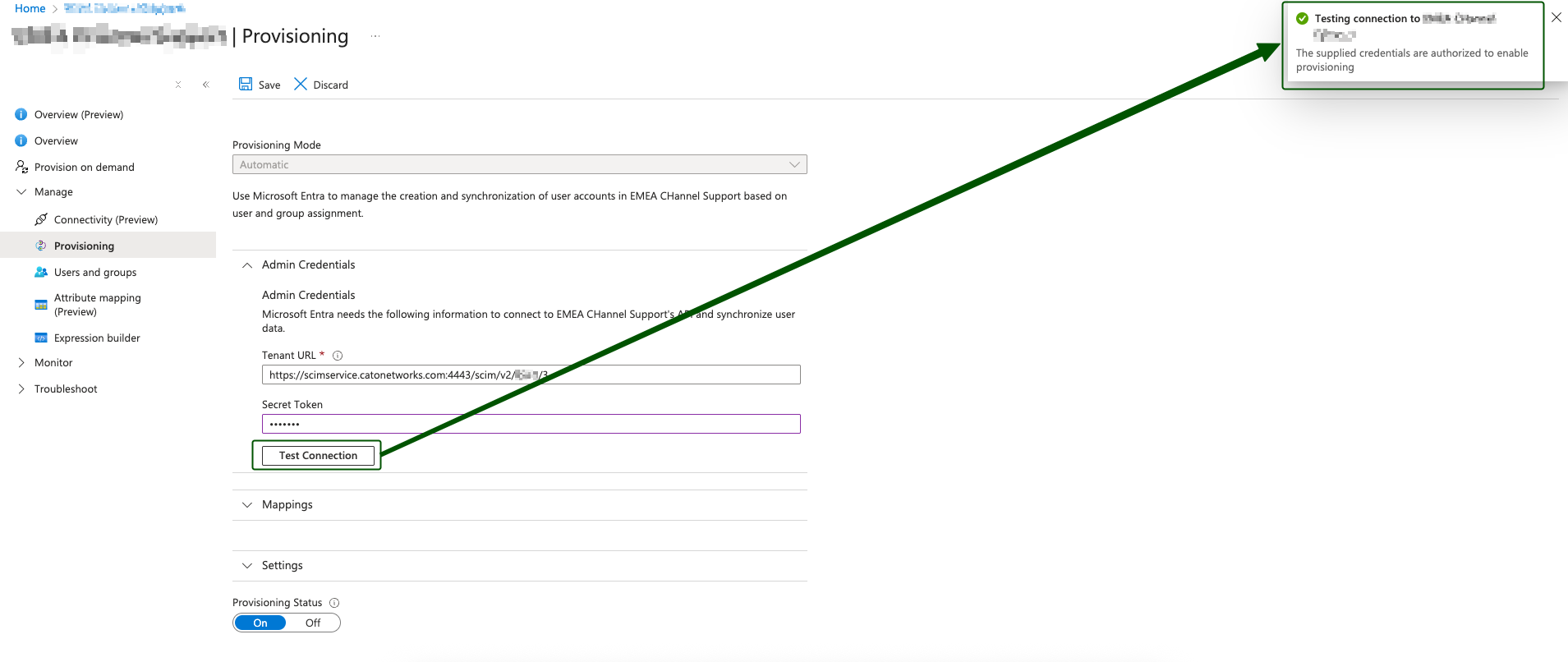

This can be verified by pressing the Test Connection button from within the provisioning application.

Resolving attributes are missing in the IdP and cannot be propagated to CMA

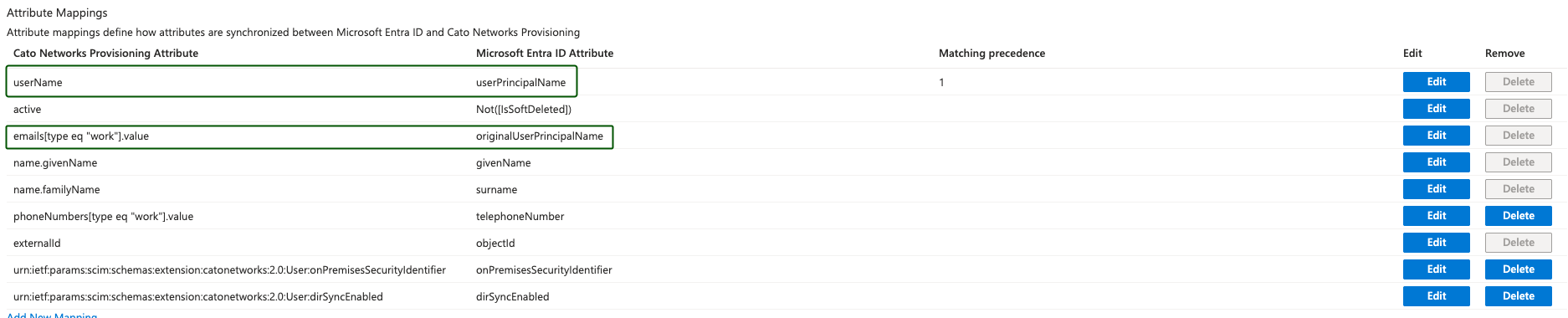

Go to Enterprise applications > Cato Provisioning Application > Provisioning > Provisioning > Mappings then select the Provision Microsoft Entra ID Users in the Attribute Mappings section confirm that the userPrincipalName is being mapped as well as Email address.

Resolving there are insufficient licenses to provision the users

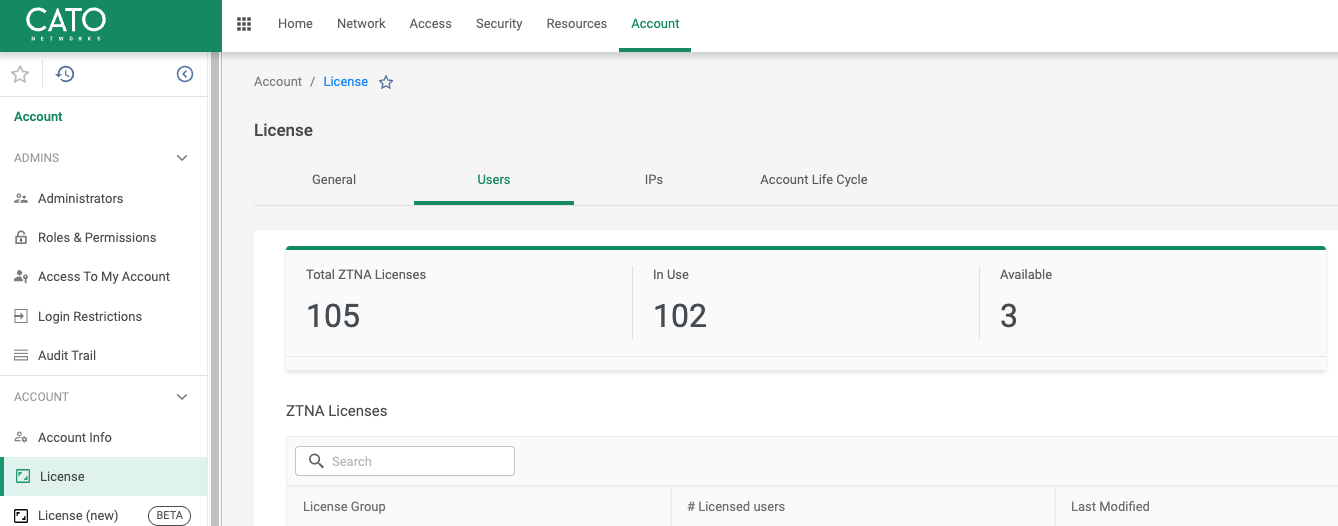

In the CMA go to Administration > License > Users and verify that there are sufficient licenses to provision the number of users you are attempting to add.

If you are lacking sufficient licences please unassign/disable/delete inactive users or reach out to your sales team for further licence options.

Resolving groups in the IdP are not assigned to the provisioning application

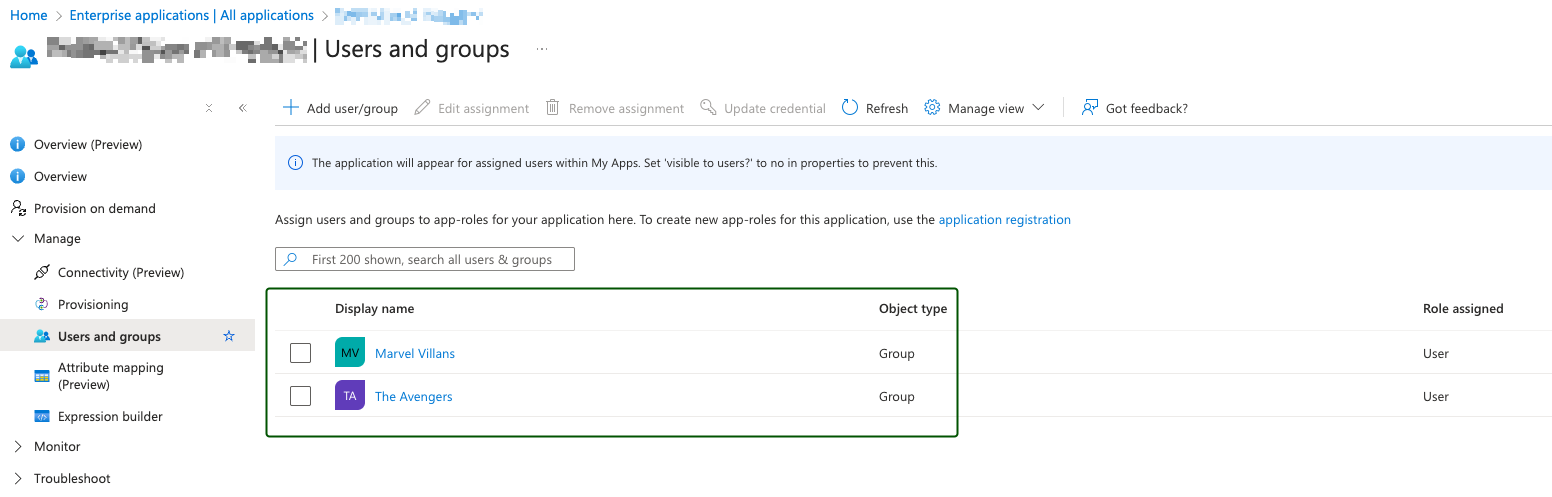

Go to Enterprise applications > Cato Provisioning Application > User & Groups and verify that the user/group is listed.

If not present it can be added via the Add user/group Button

Resolving the user or group is not scoped correctly in the provisioning application

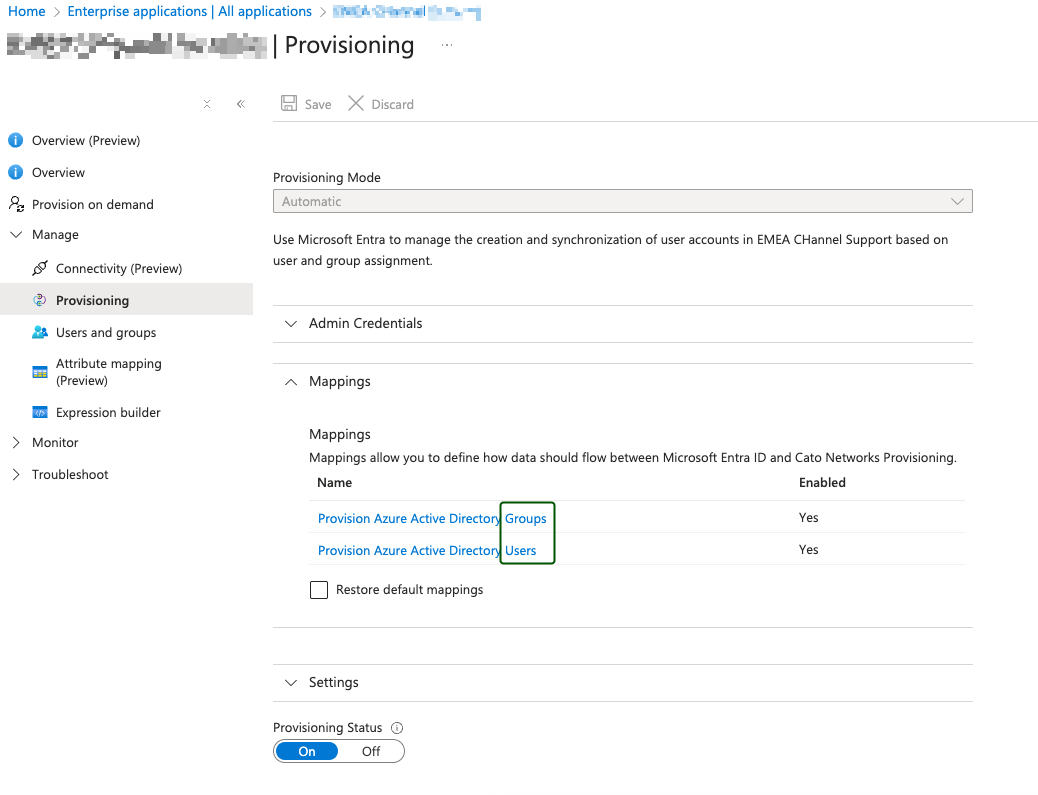

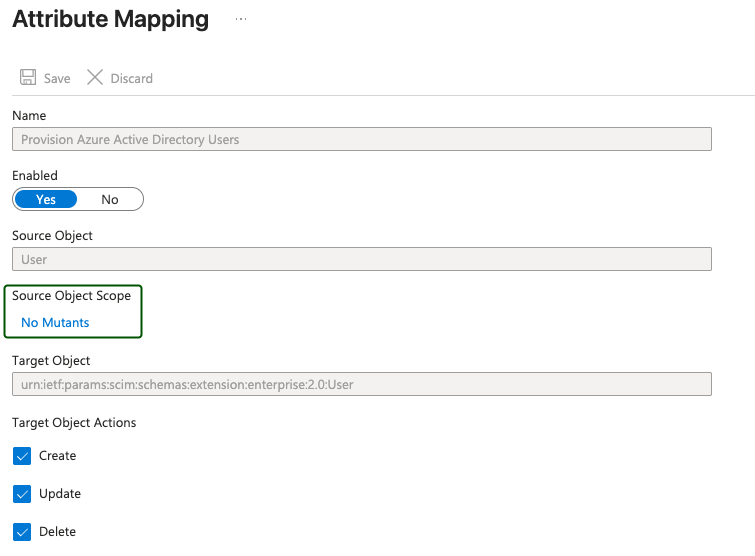

Go to Enterprise applications > Cato Provisioning Application > Provisioning > Provisioning > Mappings then select the Users or Group mapping. Verify that the Source Object Scope filters include the relevant user/group.

Resolving the required Users or Groups are nested in the IdP

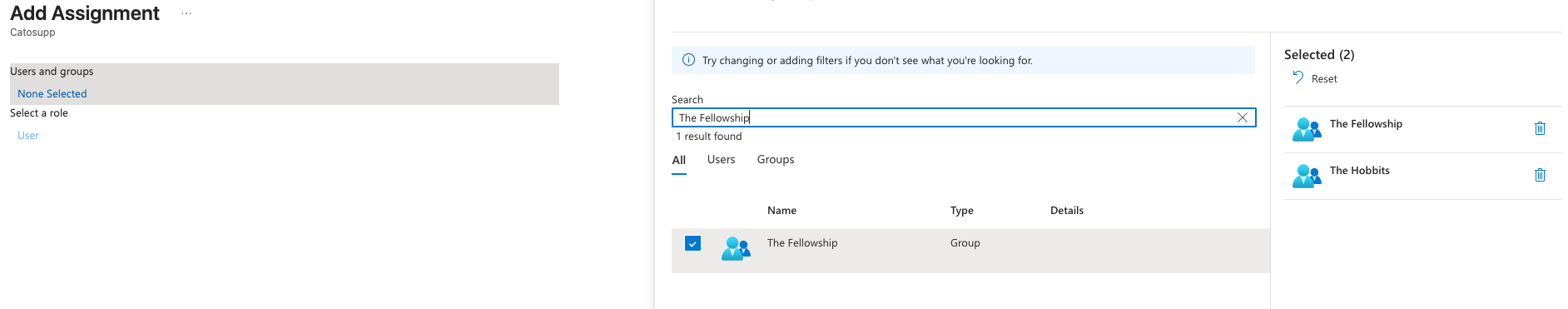

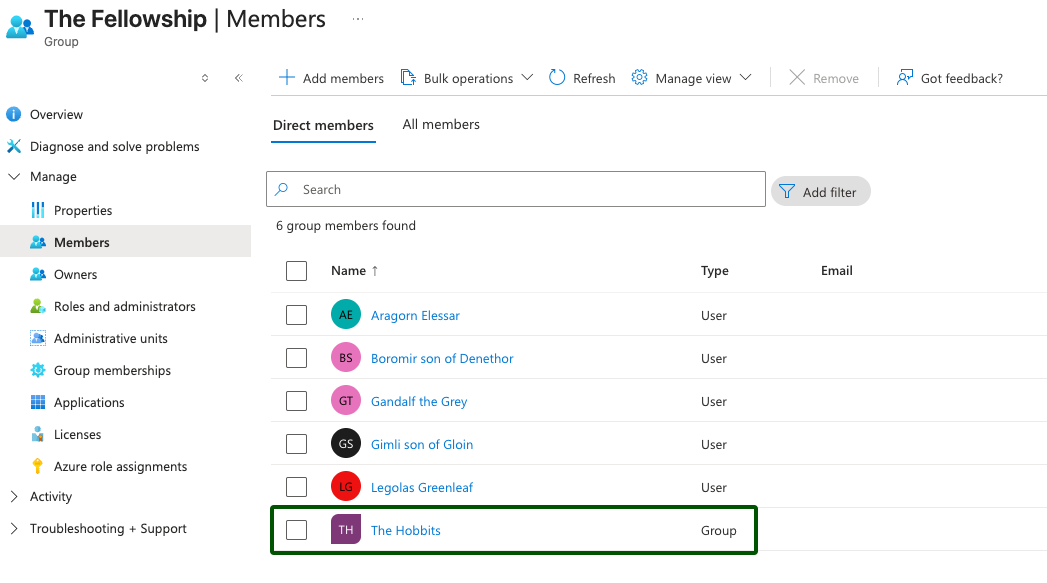

Confirm that when adding groups to the provisioning application that they are added as individual entries and are not nested within other groups.

Resolving SCIM users have been updated, but the changes are not reflected in CMA

• Email
• UPN
• First Name
• Last Name
• Phone Number

Raising Cases to Cato Support

If following this playbook has not resolved the issue, submit a Support ticket using this Knowledge Base article.

In order to get the most helpful response to a request, an administrator should provide the results of troubleshooting steps taken throughout the use of this playbook. Including for example:

• The Account Name/Number
• Details of the IdP provider in use
• Screenshots from the IdP containing the relevant user UPNs
• Details of the User groups from the IdP
